Open Project

Open a project

Open

Open files that can be edited in Nexacro Studio

New

Create a project, Application, Form, user component, CSS file, XML file, XJS file, etc.

Save

Save open form document

Save All

Save all open form documents

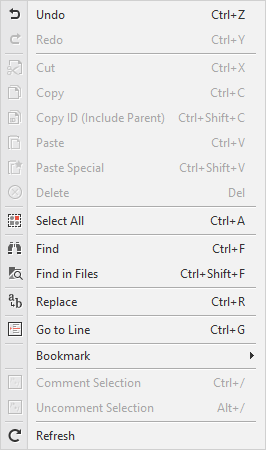

Cut

Cut selected area and save to clipboard

Copy

Copy selected area and save to clipboard

Paste

Paste clipboard contents

Options

Show the Options window of Nexacro Studio

About

Show the information on the current version of Nexacro Studio and allow you to enter a license

Align Lefts

Align to the left value of the component that was selected last

Align Centers

Align to the horizontal center value of the component that was selected last

Align Rights

Align to the right value of the component that was selected last

Align Tops

Align to the top value of the component that was selected last

Align Middles

Align to the vertical center value of the component that was selected last

Align Bottoms

Align to the bottom value of the component that was selected last

Same Width

Align to the width value of the component that was selected last

Same Height

Align to the height value of the component that was selected last

Same Size

Align to the size of the component that was selected last

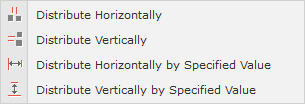

Distribute components with same horizontal space between them.

Rearrange components with equal space.

Distribute components with same vertical space between them.

Rearrange components with equal space.

Distribute components with same horizontal space between them.

Distribute components with same vertical spaces in between.

Position Center

Move selected components to the horizontal center of Form Canvas

Position Middle

Move selected components to the vertical center of Form Canvas

Position Left

Move selected components to the left side of Form Canvas

Position Right

Move selected components to the right side of Form Canvas

Position Top

Move selected components to the top of Form Canvas

Position Bottom

Move selected components to the bottom of Form Canvas

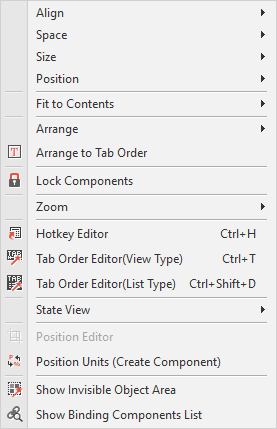

Fit to Contents

선택된 Component들을 컨텐츠와 min, max 속성값에 맞게 크기를 조정합니다. Resize selected components so that they fit into contents, min- properties or max- properties

Bring to Front

Bring selected component to the front

Send to Back

Send selected component to the back

Bring Forward

Bring selected component forward

Send Backward

Send selected component back

Arrange to Tab Order

The order that components appear in the source codes is rearranged according to tab order

Lock Components

Fix component position so that it cannot be moved with the mouse

Toggle Bookmark

Sets or clears the bookmark at the current cursor location

Previous Bookmark

Moves cursor to the previous bookmark location

Next Bookmark

Moves cursor to the next bookmark location

Delete All Bookmarks

Clears all bookmarks

Previous Bookmark

in Document

Moves cursor to the previous bookmark location in the current the current document

Next Bookmark

in Document

Moves cursor to the next bookmark location in the current the current document

Delete All Bookmarks in Document

Clears all bookmarks in the current document

Go to Bookmark

Moves the cursor to the line of a selected bookmark

Enable/Disable Bookmark

Includes/excludes all the selected bookmarks when you are searching

Enable/Disable All Bookmarks

Includes/excludes all the bookmarks when you are searching

Generate Application

Generates a JavaScript file for the project. The generated file will be saved in a the folder designated in Options or in the folder selected in the dialog box.

Generate Theme

Generates a JavaScript file for the selected theme

Generate Service

Generates a JavaScript file for the selected service group

Generate File

Generates a JavaScript file for the Form file being edited

Stop Generate

Stops the generation process in progress

Screen

Selects screen information to be used when executing

Browser

Selects an operating environment to be used when executing an app.

You can select between the NRE, the emulator and a web browser installed on your computer.

Launch

Executes an app

QuickView

Executes activated Forms

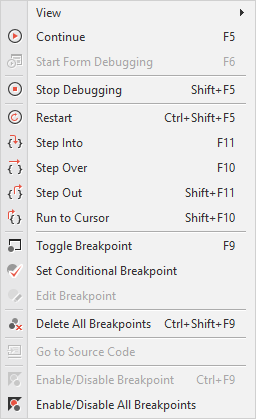

Start Debugging

Starts the project in the debugging mode

Conducts the Continue function while debugging

Start Form Debugging

Starts the debugging mode in the currently selected form

Stop Debugging

Terminates the debugging mode

Restart

Restarts the debugging mode

Step Into

Performs one task step while in the debugging mode. If another function is called, debugging continues into the function.

Step Over

Performs one task step while in the debugging mode. If another function is called, executes the entire function call, stopping at the statement after the function call..

Step Out

Performs task steps until the current function returns to its caller. Stops at the step after the call to the current function.

Run to Cursor

Goes to the line where the cursor is currently located and then stops at that point

Toggle Breakpoint

Sets/removes breakpoints

Set Conditional Breakpoint

Sets a breakpoint

Edit Breakpoint

Edits the condition for activating the selected breakpoint

Deletes all set breakpoints

Go to Source Code

Activates the breakpoint list window and moves to the point where the selected breakpoint source code is located

Enable/Disable Selected Breakpoint

Enables/Disables selected breakpoints

Activates/deactivates all set breakpoints

Select

Selects components by clicking and dragging with a mouse

Move

Moves the position of the canvas area, which is present on the Form design tab

Button

Used to place a button control on a Form

Calendar

Used to allow a user to enter a date by selecting from a calendar

CheckBox

Used to place a checkbox (true/false) control on a Form

Combo

Used to place a combo (dropdown) control on a Form

Dataset

Saves data in tabular form

Div

Used to include one or more Forms within another or when handling related components in one group

Edit

Used to place an Edit (editable text box) control on a Form

Grid

Used to display the contents of a Dataset in tabular form

GroupBox

Groups related components

ImageViewer

Used to display images on a Form

ListBox

Used to place a listbox (list of items) control on a Form

MaskEdit

Used to place a MaskEdit control on a Form. MaskEdit allows control of data formatting for items such as dates, times, phone numbers, and long numeric values

Menu

Used to construct menu items

Plugin

Used when using a plugin

PopupDiv

Used when constructing several sections in one screen

PopupMenu

Used to construct a popup menu

ProgressBar

Used to place a graphic representing the status of a process on a Form

Radio

Used to place a radio button (pick one item of many) control on a Form

Spin

Used to allow users to enter data using a "spinner" control - a control that allows the user to increment or decrement the value in the fiedl

Static

Used to place a static (fixed text) control on a Form

Tab

Used to construct a page with multiple, tabbed sections

TextArea

Used to place TextArea (multi-line text box) control on a Form

Acceleration

Provides the information on the acceleration recorded by a mobile device.

AudioPlayer

Plays an audio file using a mobile device

AudioRecorder

Records audio data and save it as a file using a mobile device

Camera

Takes a picture using the camera of a mobile device and then processes the image or image path

Contact

Processes the contact data of a mobile device

ContactAddress

Object of the address field of the contact data

ContactField

Object of the note field of the contact data

ContactOrganization

Object of the organization field of the contact data

ContactPhoto

Object of the photo field of the contact data

ContactSet

Combines all the fields of the contact data

ExteralAPI

Operates an external device (otherwise, external module or app)

FileDialog

Launches a file dialog for users to open a file or select a directory to save a file

Geolocation

Provides the information on the location of a mobile device

ImagePicker

Connects to the photo album of a mobile device and processes an image or image path.

LiteDBConnection

Processes the connection to a database supported by a mobile device

LiteDBStatement

Object to pass a query

Network

Provides the information on the network connection of a mobile device.

Sms

Object for SMS service, thus sending and receiving SMSes

Vibrator

Uses the vibration function of a mobile device

ExcelExportObject

Exports the contents of a Grid in the form of a spreadsheet file

ExcelImportObject

Imports a spreadsheet file and converts it into a Dataset object

FileDownload

Downloads files

FileUpload

Uploads files

GoogleMap

Prints a map where designated locations are marked or allows users to mark certain locations on a map

VirtualFile

Virtual file object to read or use a file in a local system

Sketch

Canvas where users can draw a simple figure, signature, etc.

WebBrowser

Wrapper object of a web browser

XPush

Object to process the messages from an X-PUSH server

ID

Select an ID of a component

Text

Enter a text of a component

Tooltip

Enter a tooltip text of a component

Left (L)

Enter a left-hand position value of a component

Top (T)

Enter a top position value of a component

Width (W)

Enter a width value of a component

Height (H)

Enter a height value of a component

Right (R)

Enter a right-hand position value of a component

Bottom (B)

Enter a bottom position value of a component

Position Editor

Launch Position Editor for editing position properties of the selected component

Position Units

Change the default position unit used when no component is selected

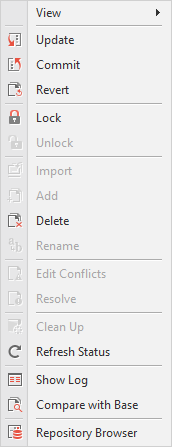

Update

Load files of latest versions from the repository

Commit

Apply modifications to the original files in the repository

Revert

Return to former status of a file by cancelling the previous task

Lock

Lock a file while you are editing the file to prevent other users from making a modification

Unlock

Unlock a file

Import

Register a project in the repository

Add

Add a new file. You can apply the added file to the repository by performing the Commit command.

Delete

Change the status of a file to "deleted". You can delete the relevant file in the repository by performing the Commit command. The actual file stored in your PC will not be deleted.

Rename

Change a file name. SVN does not have a Rename feature--it indeed deletes the existing file and adds a new file.

Edit Conflicts

Edit a file in the conflict state

Resolve

Resolve conflicts

Clean up

Browse a file recursively and erase error messages

Refresh Status

Refresh the file

Show Log

See the modification history

Compare with Previous Revision

Compare the current and previous versions and identify differences. This function executes a program registered through Diff Viewer execute file path under the Options menu.

Repository Browser

Launch Repository Browser

Init

Initialize the path of a current project in a Git repository

Clone

Clone a project from the remote repository

Branch

Switch from a current branch to another in the local repository

If you enter a branch name that has not existed before, a new branch will be created and then the current branch will switch to the new one.

Commit

Apply changes to the local repository

Reset

Cancel changes and revert to the state of a previous commit

Edit Conflicted

Edit a file that contains conflicts

Refresh

Refresh a selected item

Project Log

See the entire logs of a current project.

File Log

See the logs of a select file

Show Diff

Compare the latest commit with changes

Set Remote

Configure the setting of the remote repository and connect it to the local repository

Unset Remote

Delete remote repositories that are tracked by the corresponding local repositories

Pull

Pull updates from the remote repository to the local repository

Push

Push changes from the local repository to the remote repository

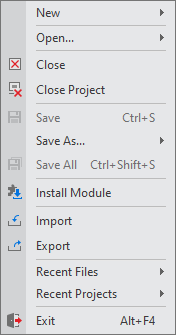

New

• Project- Create a project

• Application- Create an Application Information

• Form- Create a Form

• Script (.xjs)- Create an XJS file in the current project

• XML (.xml)- Create an XML file in the current project

• Theme- Create a theme file in the current project

• Nexacro Style Sheet (.css)- Create a style sheet file in the current project

• InitValueDefinition (.xiv)- Create an InitValue file

• UserFont (.xfont)- Create a UserFont file

• View Template – Creates a new View Template file

• Model - Creates a new Model

Open

• Project - Open new project

• File… - Open files that can be edited in Nexacro Studio

(js, xcss, xds, xtheme, etc.)

Close

Close form that is open

Close Project

Close project that is open

Save

Save currently active edit screen

Save As

Save currently active edit screen under another name

When the enabled edit screen is Form, it can be saved as Form Template or Viewset Template.

Save All

Save all edit screens that are open and all the changed contents from Project Explorer

Install Module

Install a module file created as a result of deploying a module project

Export

Runs Export Wizard to group the files and template files in the project and exports it as the xpackage file.

Import

Runs the Import Wizard to import the exported xpackage file after executing Export.

Recent Files

Display recently opened files

Recent Projects

Display recently opened projects

Exit

Exit Nexacro Studio

Undo

Undo to the previous action

Redo

Re-perform the last action that was "undone"

Cut

Cut selected area and put it into the clipboard

Copy

Copy selected area to the clipboard

Copy ID

Copy the ID of the selected component to the clipboard

(This function is activated only when one component is selected in the Form design pane.)

Paste

Paste contents of clipboard

Paste Special

Paste the properties and bind information of the cut/copied component

Delete

Delete selected components or text of selected area

Select All

Select all text from source or script window

Find…

Find character string in source or script window

Find in File…

Find files that include designated word among files in designated path

Replace

In the source or script window, replace a specific character strings with another

Goto Line…

Move cursor to a specific line in source or script window

Bookmark

Same as the Bookmark toolbar

Comment

Selection

Comment out the selected area in the source or script window

UnComment

Selection

Remove the commenting from the selected area in source or script window (making the lines executable)

Refresh

Reload file

View

• SVN Output - Display the SVN Output pane

• SVN Explorer - Display the SVN Explorer

Update

Load files of latest versions from the repository

Commit

Apply modifications to the original files in the repository

Revert

Return to former status of a file by cancelling the previous task

Lock

Lock a file while you are editing the file to prevent other users from making a modification

Unlock

Unlock a file

Import

Register a project in the repository

Add

Add a new file. You can apply the added file to the repository by performing the Commit command.

Delete

Change the status of a file to "deleted". You can delete the relevant file in the repository by performing the Commit command. The actual file stored in your PC will not be deleted.

Rename

Change a file name. SVN does not have a Rename feature--it indeed deletes the existing file and adds a new file.

Edit Conflicts

Edit a file in the conflict state

Resolve

Resolve conflicts

Clean Up

Browse a file recursively and erase error messages

Refresh Status

Refresh the file

Show Log

See the modification history

Compare with Previous Revision

Compare the current and previous versions and identify differences. This function executes a program registered through Diff Viewer execute file path under the Options menu.

Authentication Data

Manage users authorized to access the Subversion server

Repository Browser

Launch Repository Browser

View

• Git Output - Display the SVN Output pane

• Git Explorer - Display the SVN Explorer

Init New Repository

Initialize the path of a current project in a Git repository

Clone Repository

Clone a project from the remote repository

Checkout Branch

Switch from a current branch to another in the local repository

If you enter a branch name that has not existed before, a new branch will be created and then the current branch will switch to the new one.

Commit

Apply changes to the local repository

Reset Changed

Cancel changes and revert to the state of a previous commit

Edit Conflicted

Edit a file that contains conflicts

Refresh Status

Refresh a selected item

Show Project Log

See the entire logs of a current project.

Show File Log

See the logs of a select file

Show Diff

Compare the latest commit with changes

Set Remote Repository

Configure the setting of the remote repository and connect it to the local repository

Unset Remote Repository

Delete remote repositories that are tracked by the corresponding local repositories

Pull

Pull updates from the remote repository to the local repository

Push

Push changes from the local repository to the remote repository

Add Layout

Adds a layout

Copy & Add Layout

Copies the selected layout and adds it as a new layout

Delete Layout

Deletes the selected layout

Rename Layout

Renames the selected layout

Add Step

Adds a step

Delete Step

Deletes a step

View

Activates the selected Debug window

Start Debugging

Starts the debugging mode in the project.

The menu name will change to [Continue] in the process of debugging.

Start Form Debugging

Starts the debugging mode in the selected form

Stop Debugging

Terminates the debugging mode

Restart

Restarts debugging

Step Into

Performs one task step while in debug mode. If another function is called, debugging continues into the function.

Step Over

Performs one task step while in debug mode. If another function is called, executes the entire function call, stopping at the statement after the function call.

Step Out

Performs task steps until the current function returns to its caller. Stops at the step after the call to the current function.

Run to Cursor

Performs task steps through to the line where the cursor is currently located and then stops at that point

Toggle Breakpoint

Sets/removes breakpoints

Set Conditional Breakpoint

Sets or removes a conditional breakpoint

Edit Breakpoint

Edits the condition for activating the selected breakpoint

Delete All Breakpoints

Deletes all set breakpoints

Go To Source Code

Activates the breakpoint list window and moves to the point where the selected breakpoint source code is located

Activates the breakpoint list window and activates/deactivates all selected breakpoints

Enable/Disable All Breakpoints

Activates/deactivates all set breakpoints

Packing

Creates archive files for each operating environment

- Web Browser

- Windows

- Android

- iOS

- macOS

Build App

Creates app installation files for each operating system

- Windows (x86 and x64)

- Android

- iOS

- macOS

Quick Build

Runs the Quick Build window.

Settings

Sets the default option values related to Deploy, Build.

Help

Display the Help Window

If you install an additional module like chart components, you can select the help of the added module.

Online Manual

Open online manuals on a web browser

About Nexacro Studio…

Display the Nexacro Studio information window

Start Page

Display the start page, which shows you recent project list and updates on Nexacro Studio

New Project

Ctrl + Shift + N

Creates a new project

New

Ctrl + N

Creates a new form

Open Project

Ctrl + Shift + O

Opens an existing project

Open

Ctrl + O

Opens an existing file

Save

Ctrl + S

Saves a revised file

Save All

Ctrl + Shift + S

Saves changes made in all files

Copy

Ctrl + C,

Ctrl + Ins

Copies selected items to the clipboard

Cut

Ctrl + X,

Shift + Del

Cuts selected items and places them on the clipboard

Paste

Ctrl + V,

Shift + Ins

Pastes cut/copied items from the clipboard

Delete

Del

Deletes selected items

Select All

Ctrl + A

Selects all items

Undo

Ctrl + Z,

Alt + Back

Undo to the previous action

Redo

Ctrl + Y

Re-perform the last action that was "undone"

Find in Files

Ctrl + Shift + F

Opens the "Find in Files" window

Open File in Project

Alt + Shift + O

Opens the "Open File in Project" window

Project Explorer

Ctrl + Alt + L

Opens the "Project Explorer" pane

Resource Explorer

Ctrl + Shift + E

Opens the "Resource Explorer" pane

Properties

Alt + Enter

Opens the "Properties" pane

Computed Style

Ctrl + Alt + C

Opens the "Computed Style" pane

Bookmark

Ctrl + W

Opens the "Bookmark" pane

Dataset Editor

Ctrl + D

Opens the "Dataset Editor" window

Output

Alt + 2

Opens the "Output" pane

Error List

Ctrl + \

Opens the "Error List" pane

Help

F1

Opens the Nexacro Platform Help (Reference Guide)

Online Manual

Ctrl + F1

Opens the online manuals of Nexacro Platform through a web browser

Launch (Screen)

Ctrl + F5

Executes the current project based on a designated screen

Exit

Alt + F4

Exits Nexacro Studio

Next Window

Ctrl + Tab

Activates the next open file

Previous Window

Ctrl + Shift + Tab

Activates the previous open file

Expand Max View

Ctrl + Shift + Enter

Maximize the current window while minimizing all the dockable windows.

Change Tab Next

Ctrl + Page Down

Moves to the tab immediately after the current tab (Design/Source/Script)

Change Tab Previous

Ctrl + Page Up

Moves to a tab immediately before the current tab (Design/Source/Script)

Rename

F2

Renames selected item on Project Explorer

Search

F3

Selects items that include filter keywords

Show Items

Ctrl + F4

Escape

Esc

Next

Tab

Previous

Shift + Tab

Move

Arrow keys

↑,↓,←,→

Nudge

Ctrl + Arrow keys

↑,↓,←,→

Minutely moves the selected components up, down, left, and right

Resize

Shift + Arrow keys

↑,↓,←,→

Resizes the selected components

Resize (minutely)

Ctrl + Shift + Arrow keys

↑,↓,←,→

Resizes the selected components minutely

InplaceEdit

F2

Select All

Ctrl + A

Selects all components

Hotkey Editor

Ctrl + H

Opens the Hotkey editor, which allows you to edit hotkeys of all components

Tab Order Editor (View Type)

Ctrl + T

Activates the tab order editing mode (View Type)

Tab Order Editor (List Type)

Ctrl + Shift + D

Opens the Tab Order editor

Ctrl + B

Shows the bind information of components

Quick View

Ctrl + F6

Executes current Forms

Copy ID (Include Parent)

Ctrl + Shift + C

Copies the ID of a selected component

Paste Special

Ctrl + Shift + V

Executes the Paste Special feature

Start Debugging

F5

Starts debugging

Stop Debugging

Shift + F5

Stops debugging

Restart

Ctrl + Shift + F5

Restarts debugging

Step Into

F11

Executes a single instruction on the target

(If the instruction is a function call, the debugger steps into the function)

Step Over

F10

Executes the rest of the current function and breaks when the function return is completed.

Step Out

Shift + F11

Executes a single instruction on the target

(The current instruction is wholly executed and then the debugger moves to the next instruction)

Run to Cursor

Ctrl + F10

Executes all the instructions up to the current location of a cursor

Start Form Debugging

F6

Debugs a Form

Migration Log

Ctrl + Shift + M

Opens the Migration Log pane

Find

Ctrl + F

Opens the Find dialog functionality to search for specific text

Find Next

F3

Searches for the next item matching the current search string, relative to the current cursor location

Find Previous

Shift + F3

Searches for the previous item matching the current search string, relative to the current cursor location

Find Word

Ctrl + F3

Searches for the next occurrence of the string selected at the current cursor location

Go to Line

Ctrl + G

Goes to the line whose line number is entered

Match Brace

Ctrl + ]

Cursor will move to a brace matching the currently selected brace.

Match Brace (select)

Ctrl + Shift + ]

Selects the text enclosed by the currently selected brace and its matching brace

Replace

Ctrl + R

Activates the Find and Replace Dialog to replace a specified text string with another

Select All

Ctrl + A

Selects all in the current file

Comment Selection

Ctrl+/

A selected area is converted into comments

Uncomment Selection

Alt + /

Comment in a selected area will be removed (making code executable).

Lowercase Conversion

Ctrl + U

Converts selected text into lower case

Uppercase Conversion

Ctrl + Shift + U

Converts selected text into upper case

Toggle Bookmark

Ctrl + F2

Creates or removes a bookmark at the cursor location within the current file

Clear Bookmarks

Ctrl + Shift + F2

Clears all bookmarks within the current file

Next Bookmark

F2

Moves the cursor to the next bookmark within the current file

Previous Bookmark

Shift + F2

Moves the cursor to the previous bookmark within the current file

Delete Line

Ctrl + Shift + L

Deletes the line on which the cursor is located

Delete Line (left of the cursor)

Ctrl + Shift + Back

Deletes the contents on the left side of the cursor on the current line

Delete Line (right of the cursor)

Ctrl + Shift + Del

Deletes the contents on the right side of the cursor on the current line

Delete Paragraph

Ctrl + Del

Deletes the paragraph in which the cursor is located

Tab

Ctrl + Shift + I

Identical functionality as Tab

Moves to Source/Script window

Move Start Position of Line

Home

Moves the cursor to the beginning of the current line, excluding white space

Select Start Position of Line

Shift + Home

Extends the selection to the beginning of the line

Move End Position of Line

End

Moves the cursor to the end of the current line

Select End Position of Line

Shift + End

Extends the selection to the end of the line

Move Start Position of File

Ctrl + Home

Moves the cursor to the beginning of the current file

Select Start Position of File

Ctrl + Shift + Home

Extends the selection to the beginning of the current file

Move End Position of File

Ctrl + End

Moves the cursor to the end of the current file

Select End Position of File

Ctrl + Shift + End

Extends the selection to the end of the current file

Paragraph Next

Ctrl + \

Moves the cursor to the next paragraph

Paragraph Previous

Ctrl + /

Moves the cursor to the previous paragraph

Zoom

Zooms out (-) or in (+), shrinking or enlarging the current view

Intellisense

Ctrl + Space

Activates Intellisense

Toggle Breakpoint

F9

Toggles on/off a breakpoint

Delete All Breakpoints

Ctrl + Shift + F9

Removes all breakpoints

Enable/Disable Breakpoint

Ctrl + F9

Activate/deactivate selected breakpoints
