Server Configuration

App Builder related articles

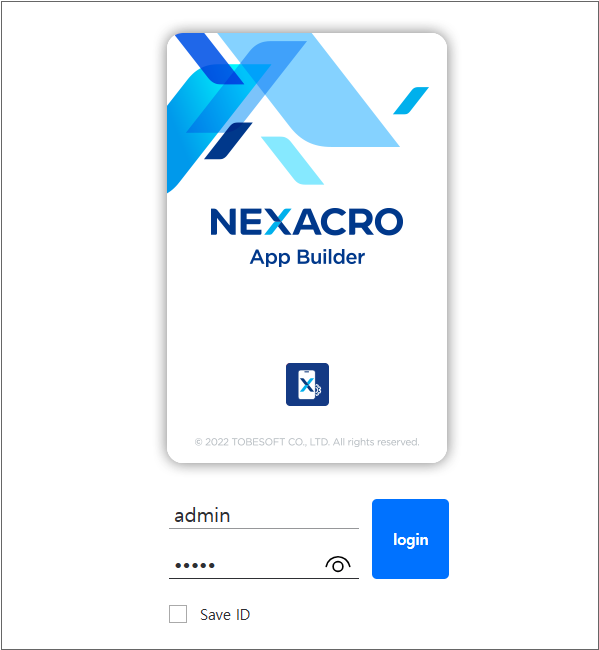

After installing the App Builder, access the management console and proceed with the settings for using the App Builder. When you access the management console, the login window is displayed. When logging in for the first time, the ID is "admin" and the Password is "admin". The password can be changed from the menu [User] after logging in.

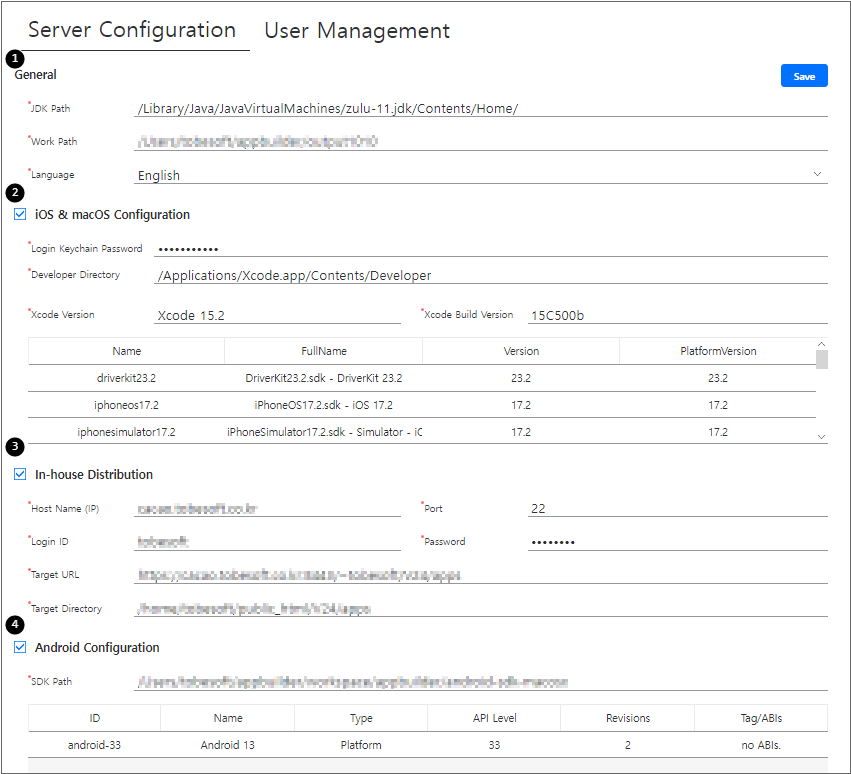

For the App Builder configuration, select the menu [Configuration > Server Configuration] item in the management console. The menu is divided into 4 categories. You can select whether to use the other items with the checkbox, except for the General item.


Item

Description

1

General

Specifies the JDK path and the path to manage the created app project.

2

iOS & macOS Configuration

Displays iOS, macOS SDK information.

3

In-house Distribution

Specifies the related information for the In-house distribution setting.

4

Android Configuration

Specifies the Android SDK installation path.

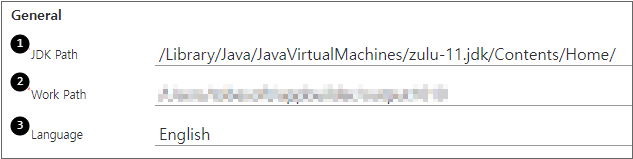

General

The General item is an item to be basically filled out.


Item

Description

1

JDK Path

Specifies the JDK installation path.

2

Work Path

Creates the app project and specifies the work path to store the uploaded resource file.

3

Language

Set the UI display language.

Korean, English and Chinese are supported.

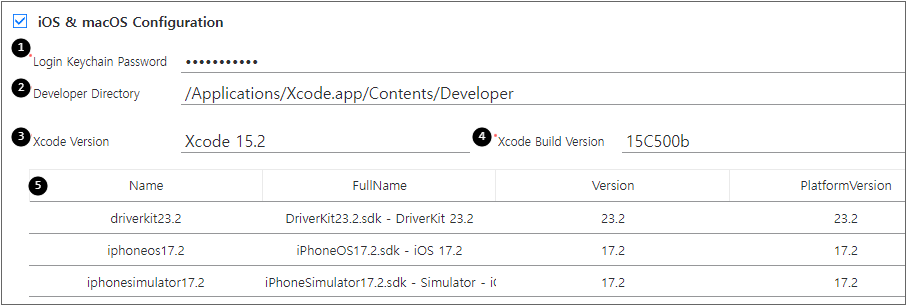

iOS & macOS Configuration

This is the setting for building iOS, macOS apps.

If Xcode and the related SDK are installed normally, then the related settings are automatically checked and the setting values are displayed. If the setting value is not displayed, then check whether Xcode or SDK has been properly installed.


Item

Description

1

Login Keychain Password

Enter the login keychain password.

2

Developer Directory

Displays the Xcode developer directory.

3

Xcode Version

Displays the installed Xcode version.

4

Xcode Build Version

Displays the Xcode build version.

5

SDK Details

Displays the details of the related SDK installed.

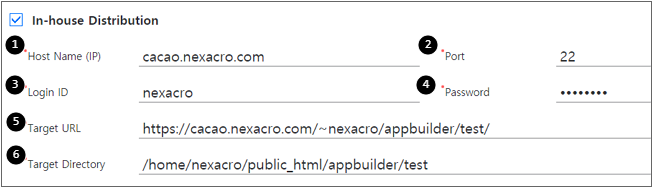

In-house Distribution

In-house Distribution means using the server that can deploy the installation file independently without using the Apple App Store. To use this function, HTTPS must be set and the server certificate issued to a public domain must be obtained.

When the In-house Distribution item is set, the .ipa file and the .plist file are transmitted to the set server for the app build. The Host information set when downloading the built app is applied.


Item

Description

1

Host Name (IP)

Enter the server host name or IP information.

2

Port

Enter the Port information for file transmission.

3

Login ID

Enter the login ID when accessing the server.

4

Password

Enter the login Password when accessing the server.

5

Target URL

Enter the URL that will refer to the copied .ipa, .plist files.

6

Target Directory

Enter the path where the copied .ipa, .plist files will be located

The URL entered in the Target URL field and the URL accessed to download the actual file are different. The Target URL is the path where the .ipa and .plist files are actually saved. When downloading the file, access the URL provided after building and download the installation file.

If HTTPS is not set up, or if there is no server certificate issued by a public domain, then you cannot install the app through the "In-house Distribution" function. In this case, you need to download the .ipa file to the PC without using the "In-house Distribution" function and install the app through Xcode or Apple iTunes.

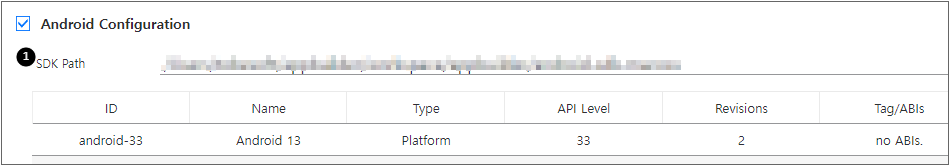

Android Configuration


Item

Description

1

SDK Path

Specifies the path where the Android SDK is installed.

If the list of the installed Android SDK is not displayed after setting the SDK Path item, then check the following.
