Migration

You can convert the version of a Nexacro Platform project from 14 to Nexacro N by using the migration feature of Nexacro Studio.

Nexacro Studio provides the Migration Wizard, which automatically adjusts the configuration of a project such as structure, files and syntax. Moreover, the Studio offers several other tools for comparing and analyzing two different versions so that you can succeed in migration.

In this chapter, you will learn how to use the migration feature provided by Nexacro Studio.

The migration feature provided by Nexacro Studio is just a tool to support migration, meaning that it does not guarantee a perfect migration of a project. If you want to migrate your project perfectly, you need to check the result of the migration performed by Nexacro Studio and then fix the files that were failed to be converted.

Procedures

The process of migration through Nexacro Studio can be largely divided into four steps: opening a project, Migration Wizard, fixing errors and ending the migration.

Opening Project

In this step, Nexacro Studio opens your project that is based on Nexacro Platform 14. Afterwards, two possible scenarios will be played out depending on whether you have conducted the migration process for the project before: one scenario is about when you have never performed the migration process before while the other is about the opposite.

When you performs migration for the first time

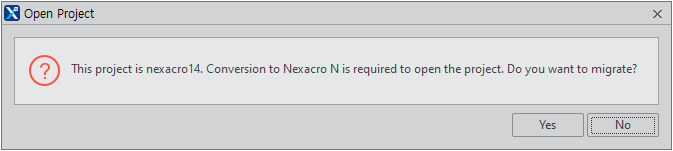

When Nexacro Studio opens an unmigrated project, you will be asked whether you will conduct migration process as presented in the below picture.

If you want to conduct the process, click Yes.

01_open_project_01


Description

Yes

Initiates the migration process

No

Closes the dialog box and the project

If this is the case, you can go to Migration Wizard directly without having to read the below section.

When you have performed migration before

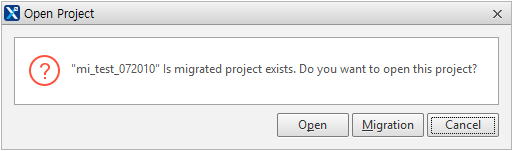

When you open a Nexacro Platform 14-based project that has been migrated before, Nexacro Studio will inform you that there is already a migrated version. Then, the Studio will ask you which action you will take next, as presented in the below picture.

01_open_project_01_01_4프로젝트를_열었을때_뜨는_창

Choice

Description

Open

Opens the already-migrated version

Migration

Starts a new migration

Cancel

Cancels the opening of the project

Migration Wizard

When you first open a project that is based on Nexacro Platform 14, you will be asked whether to migrate the project. If you click "Yes", the Migration Wizard will begin running. The wizard is a tool that performs tasks that you otherwise have to do by yourself: to automatically establish the configuration of a project in a way that fits Nexacro N. For instance, it automatically changes directory structure, environmental data, files, versions and syntax.

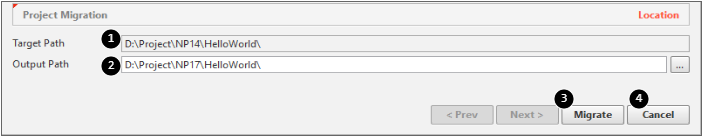

To begin with, you need to designate input and output path as illustrated below. Then click the Migrate button to start the process.

01_project_open_02_migration_wizard

Call-out


Description

1

Target Path

Path to a Nexacro Platform 14-based project that will be migrated

2

Output Path

Path to the resulting migrated project. The default value is a working folder defined in the menu [Tools > Options > Environment > General].

3

Migrate

Starts the migration process

4

Cancel

Cancels the migration

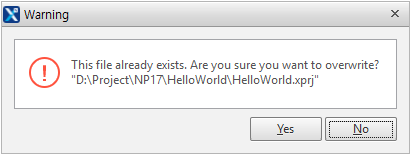

If a project with the same name already exists in the output path, an alert box will appear, asking you whether to overwrite the existing project.

01_project_open_03_overwrite_warning

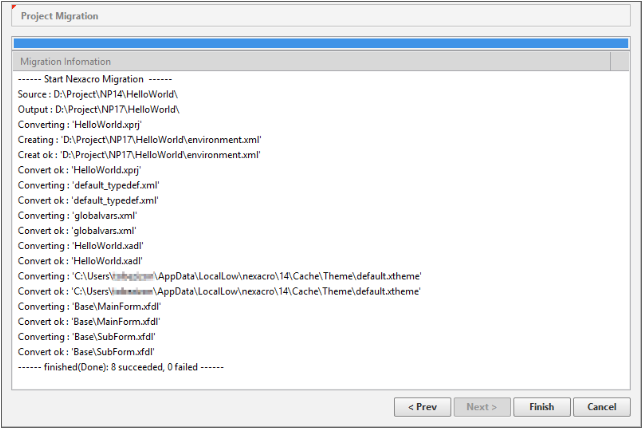

Once an automatic migration begins, you can see the process through log messages, as illustrated below.

02_migration_04_migration_finish

If you want to suspend the process, click the Stop button. If you want to resume, click the Remigrate button.

When the automatic conversion process comes to an end, the message "finished" will be displayed with the numbers of the items that have succeeded or failed in migration. At the same time, the Finish button will be activated.

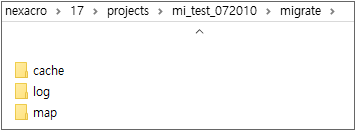

If you have successfully performed the tasks so far, you will find a resulting Nexacro N-based project in the output path you defined above. Among the directories under the project, there is a log file in the migrate folder, and it contains the information on the results of migration. You should not modify or delete this file since it is essential for the next step where you fix the files that have been failed to be converted.

Fixing Errors

Once you perform a conversion process by using the Migration Wizard, you can open the resulting project in the migration mode. This mode allows you to review the logs of the conversion process, trace the files that have been failed to be migrated and fix the related errors. This error-fixing process is imperative as it helps you solve the problems related to the functions not provided by Nexacro or to user-written codes.

For the details about how to use the migration mode, go to Migration Mode Menu.

You will take the below steps to fix errors.

  1. Check migration log: identify a problematic file, determine which part of it causes an error and figure out how the code was changed from its original.

  2. Fix error: analyze the error and fix it. To this end, you need to change the existing code slightly or sometimes even to rewrite it completely.

Check migration log

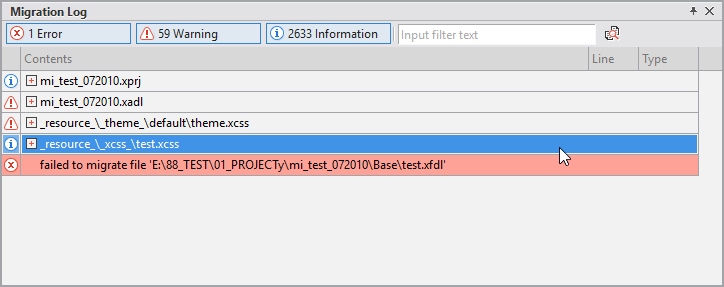

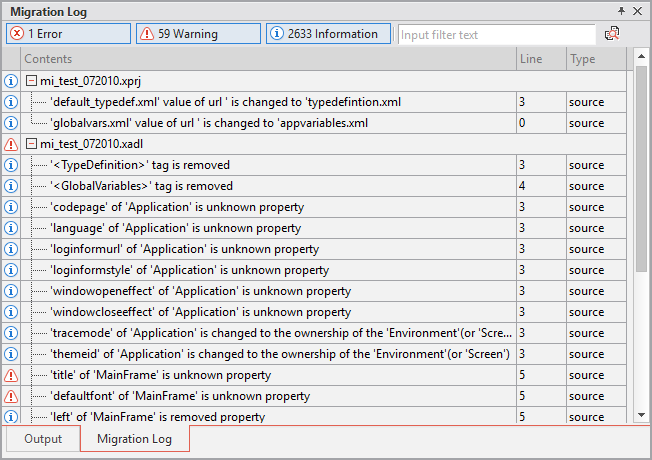

Migration Log allows you to check the items that have failed to be converted or that contain errors.

migration_log_pane

Migration Log is organized in a tree structure with each level containing the following information: file information > changes > relevant line. Each item is featured with an icon that is marked with one of the four symbols indicating log types. The below table presents the descriptions of those symbols.

Symbol

Log type

Description

Error Log

It indicates a failed conversion or an error. You must resolve this case as it will otherwise prevent the operation of the project.

Warning Log

It indicates an arbitrary modification or deletion. Although this case does not block the opening or operation of the project itself, you better take a look as it may prevent intended functions.

Information Log

It indicates that the item has been converted or created successfully. This log provides you with the information on the changes made.

Fix error

You need to think about the solutions for the items that the Migration Wizard has failed to convert. While you can fix some errors with simple changes, other errors may require you to devise different functions as replacements or even to create new files based on Nexacro N.

Ending Migration Project

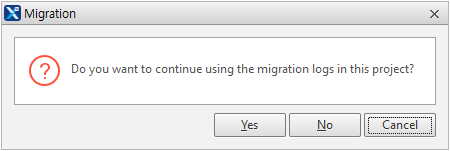

When you close or update a migration project, you are asked whether to maintain the migration logs. If you click "Yes", the migration logs will continue to appear next time when you open the project. If you click "No", the migration logs will be deleted while the project will be opened in the project mode.

Change_Project_Mode_팝업_no_more_resolve

Migration Mode Menu

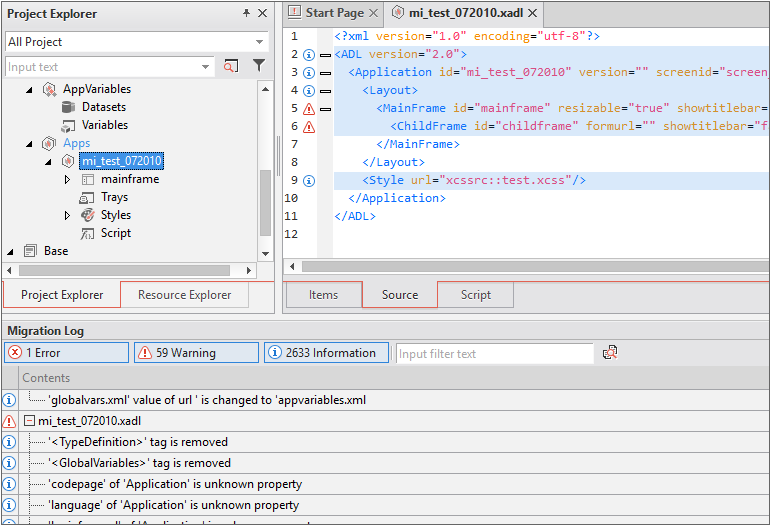

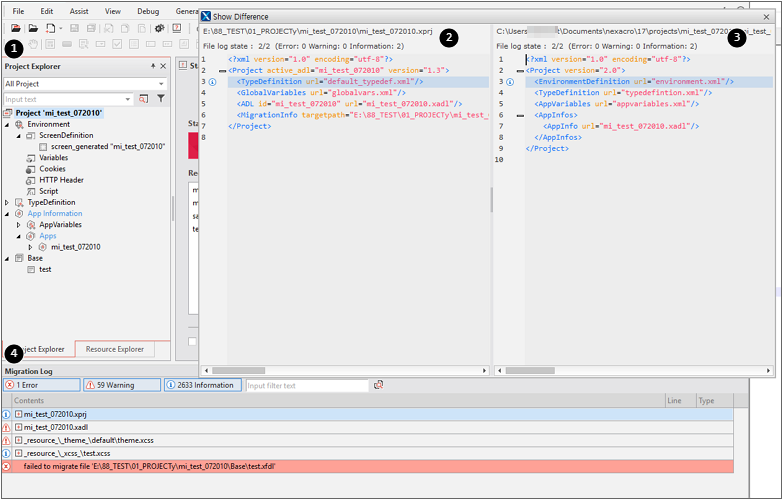

After you finish the automatic conversion conducted by the Migration Wizard, you can open the resulting project in the migration mode. This mode consists of the Project Explorer, Migration Log and DiffView. The Project (Migration) Explorer manages the files that are included in a converted project while the Migration Log pane presents the errors that occurred in the process of the automatic conversion. The DiffView pane allows you to compare two versions of source codes—before and after the automatic conversion. With the foregoing tools, you can see the changes made and modify files if necessary.

03_migration_mode_01_마이그레이션모드로프로젝트오픈했을때_전체화면

Call-out


Description

1

Project Explorer

It explores the file produced as a result of a migration.

2

Target File View

Source codes of the file before the migration

3

Migration File View

Source codes of the file after the migration

4

Migration Log

It shows the logs of the results of a migration. It shows the logs of each file.

Project Explorer

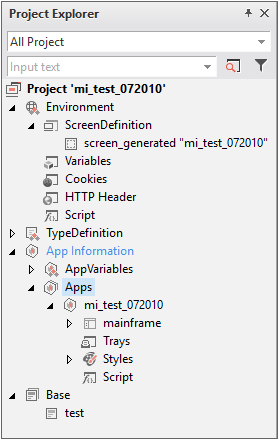

The Project Explorer in the migration mode basically functions the same as the Project Explorer in the project mode, which lists the files in a project in the form of a tree. The difference is that the explorer in the migration mode presents the information on migration by using colored file names.

Migration Log

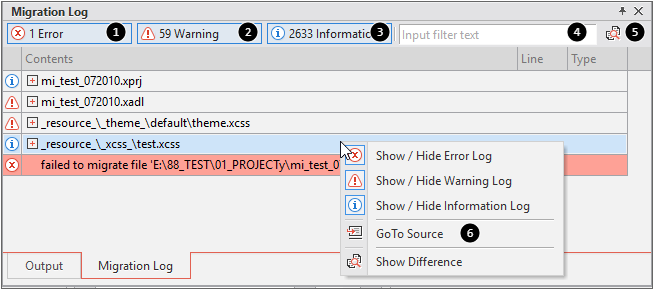

Migration Log presents the results of conducting a migration by giving detains on the changes.

Call-out


Description

1

Show/Hide Error Log

Shows or hides error logs

2

Show/Hide Warn Log

Shows or hides warning logs

3

Show/Hide Info Log

Shows or hides information logs

4

Input Filter Text

Enters filter text

5

Show Difference

Compares a migrated file and its original file

6

GoTo Source

Displays the source codes of the selected file through Nexacro Studio

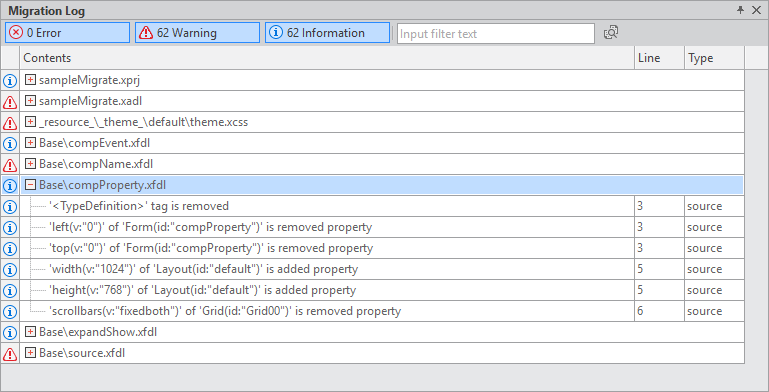

You can see the details on a warning log or information log by expanding the relevant tree.

Migration DiffView

You can open the DiffView editor by right-clicking a certain file from Migration Log and select Show Difference from the context menu.

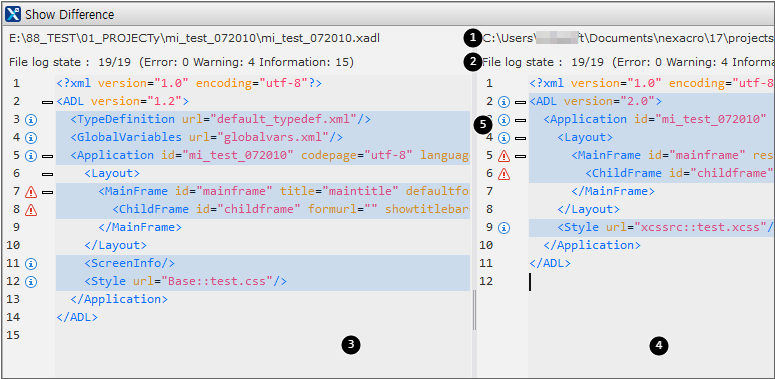

The below picture shows DiffView opening a file. The original file is on the left pane while the migrated file is on the right pane. Changes are highlighted with blue color.

Call-out


Description

1

Open File

Path to the current file

2

Log Information

Information on the logs of the whole file (log type. number of updated logs and number of remaining logs)

3

Original Source View

Shows the source codes of the original file.

Logs are presented for each line.

You cannot edit the source codes.

4

Migration Source View

Shows the source codes of the migrated file.

Logs are presented for each line.

You cannot edit the source codes.

5

Diff Line

When you double-click an item from the Migration Log tree, you will be led to the relevant line displayed on DiffView. The relevant line will be indicated with the 'selected' style.

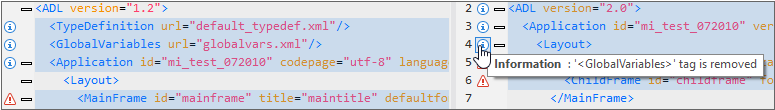

On the right pane where a migrated file is opened, you can see the information on changes and edit the source codes.

03_migration_log_03
