Operating Environment

The recommended operating environment for X-PUSH is as follows:

Minimum System Requirements
JDK(Java Development Kit)	JDK 8
Memory	1 GB RAM
Free disk space	HDD 500 MB
Processor	400MHz CPU

Supported Operating Systems
Most operating systems that can run JVM (Java Virtual Machine)
OS	Linux , Windows , UNIX , macOS

Databases
Oracle	10g, 11g, 12c, 18c, 19c
SQL Server	2008, 2012, 2014, 2016
PostgreSQL	11, 15
DB2	10.5
Tibero	6, 7

firewall
Firewall policy is required to access X-PUSH from outside (inbound policy)
50000	Web browser access port (client)
50001	Dedicated browser access port (client)
50002	Provider access port (message provisioning)

Java and Environment Variables Check

JDK 1.8.x must be installed for the X-PUSH server to operate.

You must install the JDK - not a JRE - to run X-PUSH as a HotSpot Server.

Java installation status and environment variable settings can be verified using the following method:

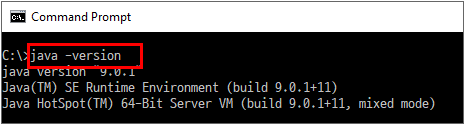

In the Windows environment, run "java –version" in the command window.

java –version

In the Unix/Linux environment, run "java –version" in the shell.

java –version

If you do not see the above outputs, you must install Java. Please refer to https://www.oracle.com/technetwork/java/javase/overview/index.html for Java installation details.

Network Setup

An X-PUSH Server uses a single network connection for one client access. To allow simultaneous access for multiple clients, the network properties in the operating system must be set to allow for the simultaneous socket connections of the message provider, monitoring access, etc. The default setting value for Windows and Linux operating systems is generally 1,000. Therefore, the desired value must be set to support more than 1,000 client connections.

Network-related parameter setting methods vary by operating system. Contact your server administrator for detailed setting methods.

X-PUSH Installation

The following information denotes $XPUSH_HOME as the location of an X-PUSH Server installation regardless of the operating system.

Windows Environment Installation

Extract the xpush-2.8.x.zip file to the path where X-PUSH is to be installed.

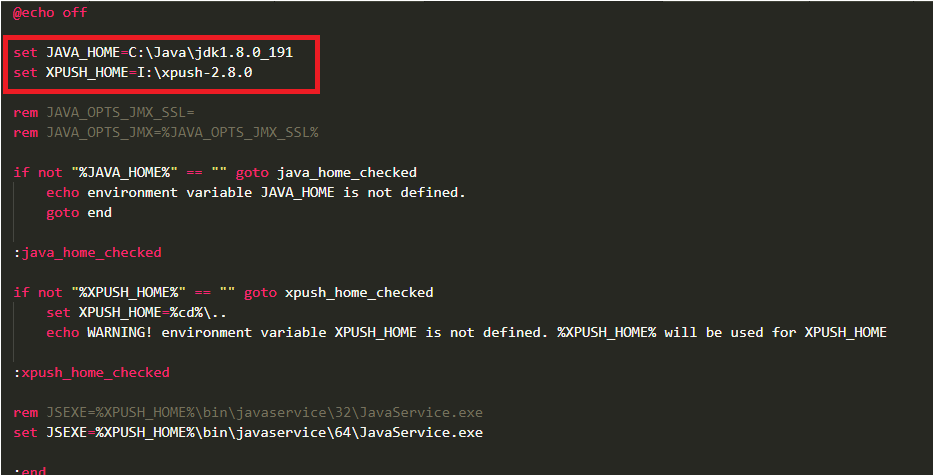

Open the $xpush-2.8.x/bin/set_xpush.bat file and set JAVA_HOME and XPUSH_HOME.

set JAVA_HOME=C:\Program Files\Java\jdk1.8.0_XX
set XPUSH_HOME=I:\xpush-2.8.x

Be sure to exclude the final backslash "\" when setting "C:\xpush-2.8.0" as the XPUSH_HOME value.

Unix/Linux Environment Installation

Extract the xpush-2.8.x.tar.gz file to the path where X-PUSH is to be installed.

tar zxvf xpush-2.8.x.tar.gz
or
gzip -d xpush-2.8.x.tar.gz
tar xvf xpush-2.8.x.tar.gz

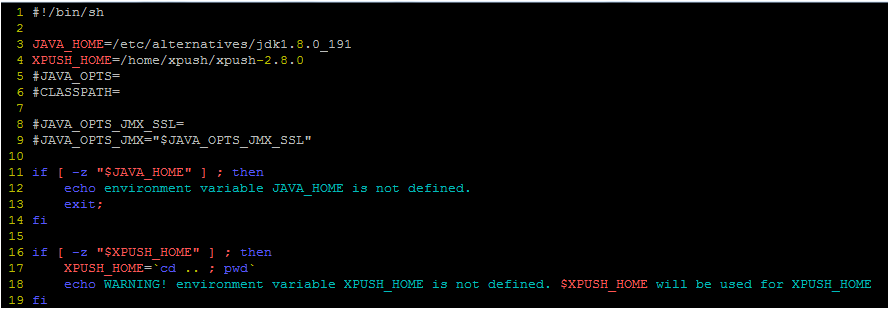

Open $xpush-2.8.x/bin/set_xpush.sh file and set JAVA_HOME and XPUSH_HOME.

JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk.x86_64
XPUSH_HOME=/home/xpush/xpush-2.8.0

Make sure that the value set in the environment variable XPUSH_HOME does not end with “\” like C:\xpush-2.8.0\.

X-PUSH License

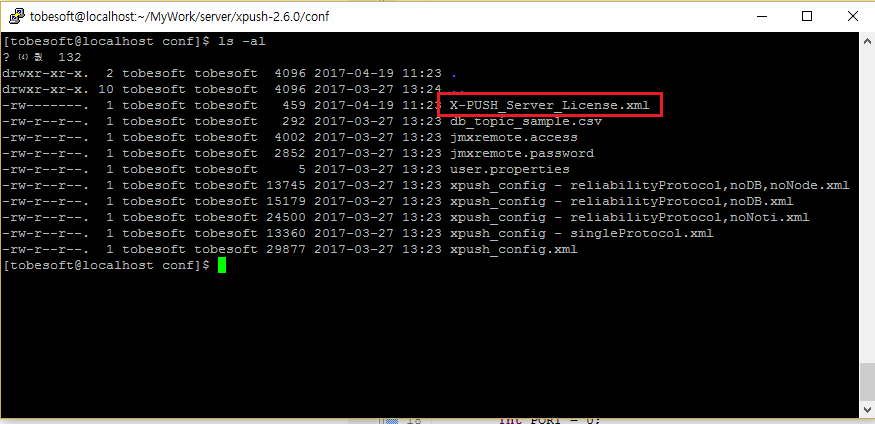

An X-PUSH license is required to run X-PUSH. Copy the X-PUSH license file (X-PUSH_Server_License.xml) to the "$XPUSH_HOME/conf" directory.

Copy the license file to the "conf" directory regardless of the OS.

Directory Structure

The directory structure in XPUSH_HOME is as follows:

Directory	Included files
api	X-PUSH API related library file is located.
bin	Contains the run/quit script files.
conf	X-PUSH environment setting file and license file are located.
doc	Contains documents.
lib	Contains the library files required to run X-PUSH.
log	The X-PUSH log files are generated in this location.
sample	Contains sample code.

Database Table Creation

A database is required to use the reliability message and mobile notification features.

The databases currently supported by X-PUSH are as follows:

Five database tables need to be created by default. The table creation query can be found in the following file:

$XPUSH_HOME\sample\sql\xpush-2.8.x.sql

Database Table	Description
T_TOPIC	User topic information.
T_MESSAGE	Reliability message information.
T_USER_MESSAGE	User message status management.
T_MOBILE	User device token information.
T_NOTIFICATION	Mobile notification history management.

The database Character Set must be set to UTF-8.
