You can distribute a service developed based on Nexacro to Mac users in the form of a Nexacro Runtime Environment (NRE) app. As an administrator, you need to create deployment files based on a project made by developers. This chapter briefly explains how to create deployment files step by step.

Preparation

Development environment

You need the Xcode development environment to create an app for macOS. Without addition coding, you just need to go through few steps to make an existing Nexacro-based app applicable to macOS.

The below table shows the basic elements of the development environment for macOS apps.

Develop App Project

Follow the below steps to work on a macOS app project in Xcode. Before entering an app project, you should find the archive files in an app that you built in Nexacro Studio and locate them in the designated directory.

Create a project

After creating a macOS project that will contain your Nexacro-based app, configure basic settings. You can create a project by accessing the below menu.

File > New > Project > macOS

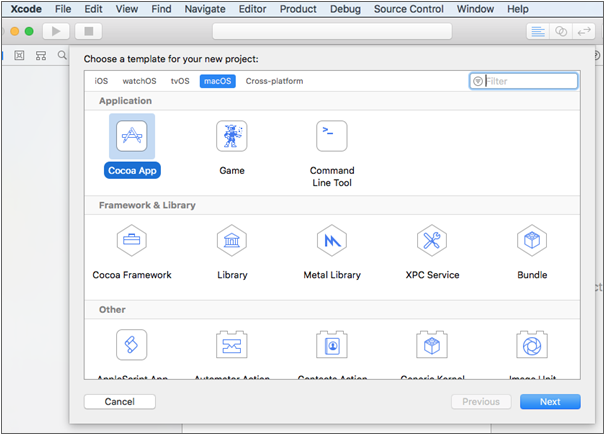

Select Cocoa App as a template for the created project.

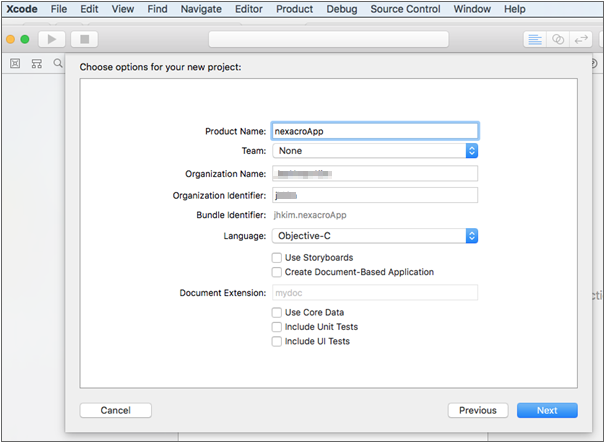

Set Language to "Objective-C" and set other options including Product Name. Then, click the Create button after designating the folder where the new project is created.

Set Nexacro libraries

Add Nexacro libraries to your macOS project to establish an optimal environment for Nexacro.

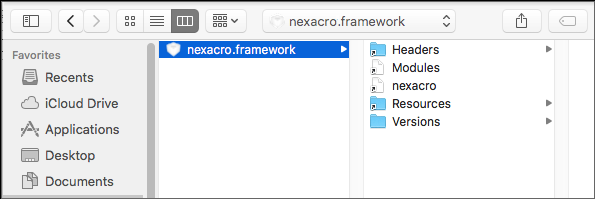

Nexacro libraries are provided in the form of a compressed file named nexacro.framework.zip. After decompressing the zipped file, bring the libraries to any folder in your project or add them by accessing the menu Add Files to.

File > Add Files to "..."

Set resources

In this stage, you can set launch images, icons, messages and layouts applied to your app. You can adjust those options according to projects.

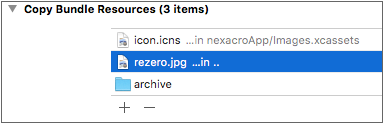

Add image files in the Copy Bundle Resources phase and then modify the main.m file as presented under the below picture.

startManager.splashImageName = @"rezero.jpg";

Set build environment

main.m

Find the main.m file located under the Supporting Files folder and modify it as below.

//  main.m

#import <Cocoa/Cocoa.h>
#import "nexacro/nexacro.h"

int main(int argc, const char * argv[]) {
    NexacroStartManager *startManager = [NexacroStartManager sharedManager];

    // If omitted, the name of the app is used automatically.
    startManager.applicationKey = @"";

    // This is a required value. If you use the default bootstrap file name, you do not need to specify start_macos.json.
    startManager.bootstrapUrl = @"http://172.10.12.180:8080/Mobile_Test/start_macos.json";

    // If omitted, the URL is the same as the directory where the bootstrap file is located.
    startManager.projectUrl = @"http://172.10.12.180:8080/Mobile_Test/";

    // Set launch screen (Refers to the resources folder. If omitted, the default launch screen of Nexacro is used.)
    // startManager.splashImageName = @"sample.png";

    [NSApplication sharedApplication];
    [NSBundle loadNibFile:[startManager getNexacroNibFile] externalNameTable:nil withZone:nil];
    [NSApp run];

    return EXIT_SUCCESS;
}

Other settings

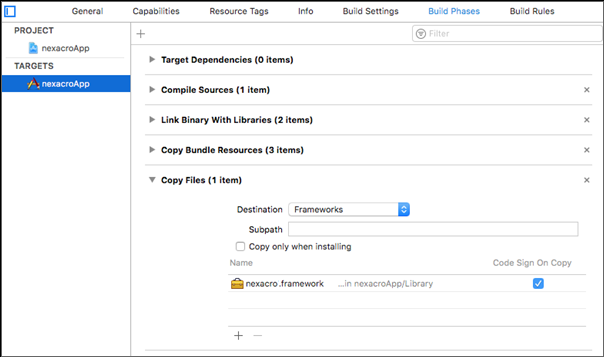

• Add a framework in the menu [Build Phases > Copy Files].

  Click the Add icon (+) > New Copy Files Phase > Destination: Frameworks

  Add nexacro.framework

• Configure settings as below in Information Property List

  App Transport Security Settings > Allow Arbitrary Loads
