Messages that will be pushed to each Nexacro Client are transmitted through the X-PUSH Server and socket communication. The protocol to be used for communication is defined when messages are provided, and an API is provided for Java.

Message Composition

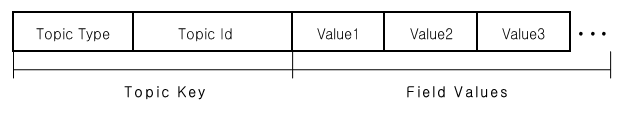

The messages pushed by X-PUSH Server are comprised of the following three items:

• Topic Type

• Topic Id

• Field Values

The Topic Type is a sort of group that indicates the message type. You can categorize the types for each message such as current share price, operation data, news, etc.

The Topic ID distinguishes the messages within one Topic Type. Messages can be distinguished by the stock code for each stock even for the same current share price data.

The Topic Type and the Topic ID form a single Topic Key. Topics with the same ID may be different if they use different topic types. For example, a message composed of the "current share price" as the Topic Type and stock code "1001" as the Topic ID has a different Topic Key from a message composed with "recent news" as the Topic Type and stock code "1001" as the Topic ID.

Field Values are the content to be actually delivered.

Message Size Restrictions

The maximum size of the message being transmitted is 999,999 bytes, able to be expressed with a message length of 6 bytes. Since all X-PUSH operations are handled in individual message units, however, large message sizes can significantly impact the performance, and memory shortages may occur.

The recommended sizes for X-PUSH are as follows:

• Topic Type: Must be 4 bytes

• Topic ID: Maximum 256 bytes

• Field Values: 4,000 bytes including the delimiter

Java API

An API for pushing messages is provided for Java, so separate development is not necessary for actual socket communication. Three classes are provided in the API:

PushMessageProvider

Establish a connection with the X-PUSH server and transmit a message using the Json protocol.

The connect() and close() methods for creating connections and sendMessage() method for actual message transmission are provided.

connect

Method for connecting to an X-PUSH Server and authenticating.

void connect (String host, int port, String id, String password) throws UnknownHostException, IOException, LoginFailException, ConnectionClosedException;

void connect (String host, int port, String id, String password, boolean useResponse) throws UnknownHostException, IOException, LoginFailException, ConnectionClosedException

sendPushMessage

One PushMessage object is sent to an X-PUSH Server.

PushResponse sendPushMessage (PushMessage pushMessage) throws IOException

close

Close is a method to disconnect from the X-PUSH Server that was connected by using the PushMessageProvider.connect() method. It's generally called when terminating message communication with an X-PUSH Server.

void close () throws IOException

PushMessageBinaryProvider

Establish a connection with the X-PUSH server and transmit a message using the Binary protocol.

Provides the connect() and close() methods for connection and the sendMessage() method for actual message transmission.

Provides the useKeepService() method to set whether to use provider keep and the setKeepIntervalTime() method to set the provider keep time interval.

connect

This is a method to connect to the X-PUSH server and authenticate.

void connect (String host, int port, String id, String password) throws UnknownHostException, IOException, LoginFailException, ProtocolMismatchException;

sendPushMessage

Send one PushMessage object to the X-PUSH server.

PushResponse sendPushMessage (PushMessage pushMessage) throws IOException

close

This is the method that disconnects the connection from the X-PUSH server created using the PushMessageProvider.connect() method. This method called when the message communication with the X-PUSH server is terminated.

void close () throws IOException

useKeepService

This is a method to set whether to use Provider Keep.

void useKeepService (boolean f)

setKeepIntervalTime

This method sets the Provider Keep time interval.

void setKeepIntervalTime (long time)

setKeepErrorCallBack

Register callback function

void setKeepErrorCallBack(KeepErrorCallBack callback)

PushMessage

Class that corresponds to the message for transmission to an X-PUSH Server. One message consists of the Topic Type, Topic ID, and data. The Topic Type is a sort of group or type for messages, and the Topic ID is a delimiter for distinguishing each message. The data is the actual message to be transmitted.

setProjectID

Set the ProjectID value.

void setProjectID (String projectID)

setTopicType

Set the Topic Type value.

void setTopicType (String TopicType)

setTopicId

Set the Topic ID. Set the key for selecting a message from a particular type of messages. For example, the topicId is "1234" for messages transmitting share prices with the stock code "1234" among "CPDT" type current share price messages.

void setTopicId(String topicId)

setActionType

Method for adding values to be transmitted.

void setActionType(String actionType)

addData

Method for adding values to be transmitted.

void addData (String data)

void addData (byte[] data)

void addData (int index, String data)

void addData (int index, byte[] data)

setData

This is a method that modifies the value to be delivered.

void setData (int index, String data)

void setData (int index, byte[] data)

resetData

This method deletes the value to be delivered.

void resetData ()

removeData

This method deletes the value to be delivered.

void removeData ()

void removeData (int index)

setAvailablePeriod

Available Period of Reliable Message

void setAvailablePeriod(int days)

setEmergencyMessage

Emergency Message

- If set to true, the priority of the message is the highest as soon as it is sent and is loaded as the first in each queue. This allows you to receive client or mobile Notification first.

void setEmergencyMessage(boolean emergency)

unmarshal

Data Conversion

- message_body data of the T_Message table is returned in List<String> type.

List<String> unmarshal(String value)

Example

Json protocol example

General message

public class DemoProvider_Push {
	public static void main(String[] args) {

		String host = "localhost";
		int port = 50002;
		String id = "tobesoft";
		String password = "xpush";

		System.out.println("host="+host+",
			port="+port+",
			id="+id+",
			password="+password);

		PushMessageProvider pushMessageProvider
			= new PushMessageProvider();
		try {
			pushMessageProvider.connect(host, port, id, password);
		} catch (UnknownHostException e) {
			e.printStackTrace();
			System.exit(0);
		} catch (IOException e) {
			e.printStackTrace();
			System.exit(0);
		} catch (LoginFailException e) {
			e.printStackTrace();
			System.exit(0);
		} catch (ConnectionClosedException e) {
			e.printStackTrace();
			System.exit(0);
		}

		try {
			PushMessage pushMessageNOTI = new PushMessage();
			pushMessageNOTI.setActionType(Constants.ACTION_PUSH_STRING);
			pushMessageNOTI.setCharsetName("utf-8");
			pushMessageNOTI.setProjectID("PRO#1");
			pushMessageNOTI.setTopicType("NOTI");
			pushMessageNOTI.setTopicId("000000001");
			pushMessageNOTI.addData("Tobesoft Push Message " + currentTime);
            PushResponse response =
                     pushMessageProvider.sendPushMessage(pushMessageNOTI);

	System.out.println("response.isSucceed() : " + response.isSucceed());
	System.out.println("response.getErrorCode() : " + response.getErrorCode());
    System.out.println("response.getResponseMessage().getMessageId() : "
     + response.getResponseMessage().getMessageId());
	System.out.println("response.getResponseMessage().getTopic().getType() : "
     + response.getResponseMessage().getTopic().getType());
	System.out.println("response.getResponseMessage().getTopic().getId() : "
     + response.getResponseMessage().getTopic().getId());

		} catch (UnsupportedEncodingException e) {
			e.printStackTrace();
		} catch (XPushMessageException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}

		try {
			pushMessageProvider.close();
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}
}

Reliability Message

public class DemoProvider_Reli {
	public static void main(String[] args) {

		String host = "localhost";
		int port = 50002;
		String id = "tobesoft";
		String password = "xpush";

		System.out.println("host="+host+",
			port="+port+",
			id="+id+",
			password="+password);
		PushMessageProvider pushMessageProvider = new PushMessageProvider();
		try {
			pushMessageProvider.connect(host, port, id, password);
		} catch (UnknownHostException e) {
			e.printStackTrace();
			System.exit(0);
		} catch (IOException e) {
			e.printStackTrace();
			System.exit(0);
		} catch (LoginFailException e) {
			e.printStackTrace();
			System.exit(0);
		} catch (ConnectionClosedException e) {
			e.printStackTrace();
			System.exit(0);
		}

		try {
			PushMessage pushMessageOPDT = new PushMessage();
			pushMessageOPDT.setActionType(Constants.ACTION_RELI_STRING);
			pushMessageOPDT.setCharsetName("utf-8");
            pushMessageOPDT.setProjectID("PRO#1");
			pushMessageOPDT.setTopicType("OPDT");
			pushMessageOPDT.setTopicId("ALL");
			SimpleDateFormat formatter = new SimpleDateFormat("HH:mm:ss");
			String currentTime = "pushed current time : "+
				formatter.format(new Date());
			pushMessageOPDT.addData(currentTime);
            pushMessageOPDT.setAvailablePeriod(30);
			PushResponse response =
				pushMessageProvider.sendPushMessage(pushMessageOPDT);
            System.out.println( "isSuccess(true or false) : "
                           + response.isSucceed() );
            System.out.println("MessageId :"
                           + response.getResponseMessage().getMessageId());
            System.out.println("TopicType :"
                           + response.getResponseMessage().getTopic().getType() );
            System.out.println("TopicId : "
                           + response.getResponseMessage().getTopic().getId() );
		} catch (IOException e) {
			e.printStackTrace();
			System.out.println("Exception e="+e);
		} catch (XPushMessageException e) {
			e.printStackTrace();
		}

		try {
			pushMessageProvider.close();
		} catch (IOException e) {
			e.printStackTrace();
		}
	}
}

Binary protocol example

General message

public class PushMessageBinaryProvider_Push {
	public static void main(String[] args) {
		PushMessageBinaryProvider pushMessageBinaryProvider = new PushMessageBinaryProvider();
		try {
			/*
			 * Whether to use Keep service or not
			 */
			pushMessageBinaryProvider.useKeepService(false);
			pushMessageBinaryProvider.setKeepIntervalTime(1 * 1000); // default: 5000
			KeepErrorCallBack keepErrorCallBack = new KeepErrorCallBack() {
				public void onData(String remoteSession, String localSession) {
					/*
					 * remoteSession:59.10.169.3:50002, localSession:172.10.12.24:48429
					 */
					System.out.println("onData() remoteSession:" + remoteSession + ", localSession:" + localSession);
				}
			};
			pushMessageBinaryProvider.setKeepErrorCallBack(keepErrorCallBack);


			pushMessageBinaryProvider.connect("localhost",50002,"tobesoft","xpush");

			PushMessage pushMessage = new PushMessage();
			pushMessage.setProjectID("TFT");
			pushMessage.setTopicType("NOTI");
			pushMessage.setTopicId("ALL");
			pushMessage.setActionType(Constants.ACTION_PUSH_STRING); // General message

			/*
			 * Add (String)
			 */
			pushMessage.addData("11111");
			pushMessage.addData("22222");
			pushMessage.addData("33333");

			/*
			 * Add (byte[])
			 */
			pushMessage.addData("aaa");
			pushMessage.addData("bbb".getBytes());

			/*
			 * Add (String to the corresponding index)
			 */
			pushMessage.addData(0, "ccc");

			/*
			 * Add (byte[] to the corresponding index)
			 */
			pushMessage.addData(2, "ddd".getBytes());

			/*
			 * Edit (String to the corresponding index)
			 */
			pushMessage.setData(1, "eee");

			/*
			 * Edit (byte[] to the corresponding index)
			 */
			pushMessage.setData(2, "fff".getBytes());

			/*
			 * Delete
			 */
//			pushMessage.resetData();
//			pushMessage.removeData();

			/*
			 * Delete (value of the corresponding index)
			 */
			pushMessage.removeData(1);


			PushResponse pushResponse = pushMessageBinaryProvider.sendPushMessage(pushMessage);
			System.out.println("pushResponse = " + pushResponse);
			if(pushMessage.getActionType().equals("RELI")) {
				System.out.println("isSucceed: " + pushResponse.isSucceed());
				if(!pushResponse.getErrorCode().equals("OK")) {
					System.out.println("ErrorCode: "+pushResponse.getErrorCode());
				}
				System.out.println("Action(): " + pushResponse.getAction());
				System.out.println("ProjectID(): " + pushResponse.getProjectID());
				System.out.println("SessionId(): " + pushResponse.getSessionId());
				System.out.println("MessageId(): " + pushResponse.getResponseMessage().getMessageId());
				System.out.println("Type(): " + pushResponse.getResponseMessage().getTopic().getType());
				System.out.println("Id(): " + pushResponse.getResponseMessage().getTopic().getId());
			}
		} catch (UnknownHostException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		} catch (LoginFailException e) {
			e.printStackTrace();
		} catch (ConnectionClosedException e) {
			e.printStackTrace();
		} catch (RuntimeException e) {
			e.printStackTrace();
		} catch (Exception e) {
			e.printStackTrace();
		}

		try {
			pushMessageBinaryProvider.close();
		} catch (Exception e) {
			e.printStackTrace();
		}
	}
}

Reliability message

public class PushMessageBinaryProvider_Push {
	public static void main(String[] args) {
		PushMessageBinaryProvider pushMessageBinaryProvider = new PushMessageBinaryProvider();
		try {
			/*
			 * Whether to use Keep service or not
			 */
			pushMessageBinaryProvider.useKeepService(false);
			pushMessageBinaryProvider.setKeepIntervalTime(1 * 1000); // default: 5000
			KeepErrorCallBack keepErrorCallBack = new KeepErrorCallBack() {
				public void onData(String remoteSession, String localSession) {
					/*
					 * remoteSession:59.10.169.3:50002, localSession:172.10.12.24:48429
					 */
					System.out.println("onData() remoteSession:" + remoteSession + ", localSession:" + localSession);
				}
			};
			pushMessageBinaryProvider.setKeepErrorCallBack(keepErrorCallBack);


			pushMessageBinaryProvider.connect("localhost",50002,"tobesoft","xpush");

			PushMessage pushMessage = new PushMessage();
			pushMessage.setProjectID("TFT");
			pushMessage.setTopicType("NOTI");
			pushMessage.setTopicId("ALL");
			pushMessage.setActionType(Constants.ACTION_RELI_STRING); // Reliability message

			/*
			 * Add (String)
			 */
			pushMessage.addData("11111");
			pushMessage.addData("22222");
			pushMessage.addData("33333");

			/*
			 * Add (byte[])
			 */
			pushMessage.addData("aaa");
			pushMessage.addData("bbb".getBytes());

			/*
			 * Add (String to the corresponding index)
			 */
			pushMessage.addData(0, "ccc");

			/*
			 * Add (byte[] to the corresponding index)
			 */
			pushMessage.addData(2, "ddd".getBytes());

			/*
			 * Edit (String to the corresponding index)
			 */
			pushMessage.setData(1, "eee");

			/*
			 * Edit (byte[] to the corresponding index)
			 */
			pushMessage.setData(2, "fff".getBytes());

			/*
			 * Delete
			 */
//			pushMessage.resetData();
//			pushMessage.removeData();

			/*
			 * Delete (value of the corresponding index)
			 */
			pushMessage.removeData(1);


			PushResponse pushResponse = pushMessageBinaryProvider.sendPushMessage(pushMessage);
			System.out.println("pushResponse = " + pushResponse);
			if(pushMessage.getActionType().equals("RELI")) {
				System.out.println("isSucceed: " + pushResponse.isSucceed());
				if(!pushResponse.getErrorCode().equals("OK")) {
					System.out.println("ErrorCode: "+pushResponse.getErrorCode());
				}
				System.out.println("Action(): " + pushResponse.getAction());
				System.out.println("ProjectID(): " + pushResponse.getProjectID());
				System.out.println("SessionId(): " + pushResponse.getSessionId());
				System.out.println("MessageId(): " + pushResponse.getResponseMessage().getMessageId());
				System.out.println("Type(): " + pushResponse.getResponseMessage().getTopic().getType());
				System.out.println("Id(): " + pushResponse.getResponseMessage().getTopic().getId());
			}
		} catch (UnknownHostException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		} catch (LoginFailException e) {
			e.printStackTrace();
		} catch (ConnectionClosedException e) {
			e.printStackTrace();
		} catch (RuntimeException e) {
			e.printStackTrace();
		} catch (Exception e) {
			e.printStackTrace();
		}

		try {
			pushMessageBinaryProvider.close();
		} catch (Exception e) {
			e.printStackTrace();
		}
	}
}
