Version Information

Post-Release Modifications

24.0.0.101

Major Changes to Nexacro N V24

Structural Improvements of Android App

The internal structure of Android NRE has been changed from a native app to a WebView-based hybrid app. In addition to faster initial loading speed, the school function and touch sensitivity have been improved.

Lighter

The size of the mobile app deployed has been reduced to a quarter of the size of the previous version by removing native code.

Clearer

Changed rendering processing from Skia-based to WebView-based.

The rendering processing of letters and images displayed on the page has been improved, and an issue that caused aliasing when letters or images were displayed on some devices has been resolved.

Running Faster

The initial loading speed when the app is launched is twice as fast compared to the previous version.

Tested on LG V40 Device

We built an app with the same project and measured the time in similar sections.

V24: WebView.onPageFinished() call time - NexacroActivity creation time

V21: Time to complete execution of Cy_PlatformGlobla::LoadApplication() - Time to create NexacroUpdaterActivity

Immpediate Response

It is more responsive to user interactions upon app launch. Scrolling, touch fling actions, and component responsiveness have been improved across the board.

Supporting Environments Like Web Browsers

With the internal structure of Android NRE changed from a native app to a WebView-based hybrid app, you can enjoy many of the advantages supported by web browsers.

• Web accessibility support

• Web font support

• Debugging support (WebKit inspector)

• Functional improvement of the WebBrowser component (fixed issues such as screen clipping)

Unified the Mobile App Development Environment

We have unified the Android and iOS NRE development environments to increase development productivity and improve the usability of the Device API and Extension API.

In-App Browser Support

The operation that was executed as an external web browser when executing the window.open function on a script has been changed to display the in-app browser as a popup.

The nexacro.open method is also available for Androidd and iOS NRE.

Cordova Plugin Support

You can now import and use Cordova plugins for expanded functions when developing an app.

Installing the Cordova plugin

CordovaPlugins

Applying the Cordova Plugin

Improved Method of Deploying Nexacro Libraries

You can separate the Nexacro libraries into a base library and a Device API library and selectively deploy them as needed.

Set Nexacro libraries(iOS/iPad)

Set Nexacro libraries(Android)

Features that will be changed or no longer support due to the change in Android app structure

With the change of the internal structure of Android NRE from a native app to a WebView-based hybrid app, the operations will change to match the functions provided by WebView and some of the redundant features will no longer be supported.

Loading Web pages with X-Frame-Options Settings

When applying HTTP headers, the WebBrowser component may experience constraints when loading web pages if there is an X-Frame-Options setting.

Executing WebBrowser component methods in a cross-domain situation

Cross-domain issues are ignored when the Android NRE internal structure is a native app, but in a WebView-based hybrid app, CORS issues on the web also apply. Support may vary depending on the update type when packing the app.

Discontinued support for redundancy features on WebView

Discontinued support for Internet Explorer 10 and 11

To take full advantage of modern web technologies, Internet Explorer 10 and 11 are no longer supported.

If your environment requires the use of Internet Explorer, you can use Version 21 of the Nexacro SDK to support it even in newer development tools.

SDK

Previous versions used scripts in the form of set_property to set property values for the purpose of supporting Internet Explorer. We will continue to support scripts in the form of set_property for codes that have already been written, but we recommend directly substituting property values in case of creating new codes.

(O) this.Button00.text = "text"; // recommend
(O) this.Button00.set_text("text");

Setting Property Values

Improved ease of responsive web development

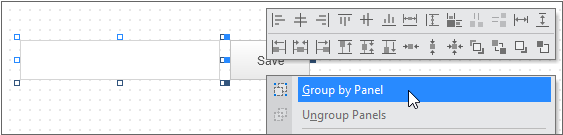

Panel components can be used to group multiple components together when editing pages as a means to adjust the layout to fit the page size.

Automatically resizing container components

For the Div and Panel components, the fittocontents feature can now be used to automatically resize the container components based on the component they are placed in.

MLM (Multi Layout Manager)

Fluid Layout

Relative length units

Relative length units ("em", "rem") as well as absolute length unit ("px") and percentage unit ("%") are supported when designing pages. You can utilize them for component placement and font-size setting.

Position

Applying different styles based on the screen

You can style certain selectors differently depending on the screen type property value.

Defining Styles Based on the Screen

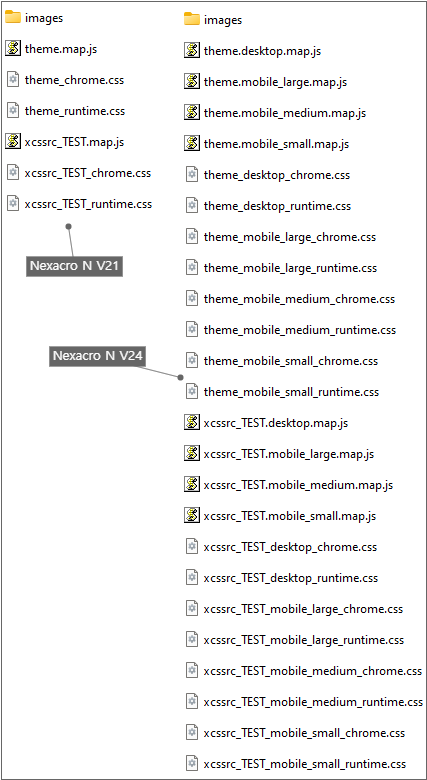

When a theme or XCSSResource is generated to support screen types, additional files will be generated for each screen type.

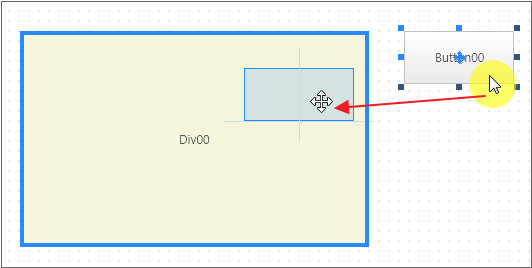

Adding child component to container component

In the previous version of Nexacro Studio, to add a child component to a container component, a new component had to be placed within the container component, but now it can be added simply by selecting an already placed component and dragging it to the container component.

Select a component and drag it into the container component area and a blue border will appear. Components can be placed wherever you want within the container component.

New components

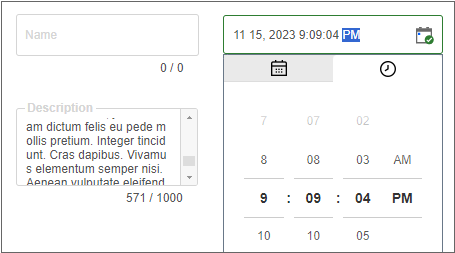

Components subject to Material UI application

• TextField

  The TextField component is used to received a single-string input from the user.

• MultiLineTextField

  The MultiLineTextField component is used to receive multi-line string input from the user.

• DateField

  The DateField component is for receiving date and time input.

Start, end date, and time selection component

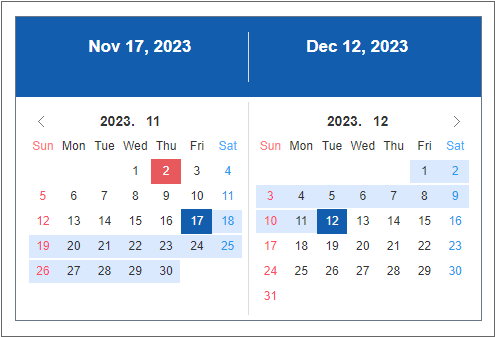

• DateRangePicker

  This is a component for receiving an input of or selecting one or two dates and times (start and end dates).

• PopupDateRangePicker

  This is a component that opens a popup window to receive an input of or select one or two dates and times (start and end dates).

Component grouping component

• Panel

  This is a component that allows you to group two or more components together and arrange them in a desired format.

Multilingual support

You can set StringResource for each language, or use glossaries from the database to enable multilingual support for your app.

Applying Multiple Languages

Generate Rule

The -CSSRULE option in the previous versions, which specified the path for the CSS Rule files, are no longer supported.

Rule files required for Generate, including CSS Rule files, have been added. The –GENERATERULE option has been changed to be required.

Nexacro Deploy
