Verifying the enroll image in theme files

This is explanation to verify image included in theme files using nexacro studio.

OPEN nexacro studio

Open the Project

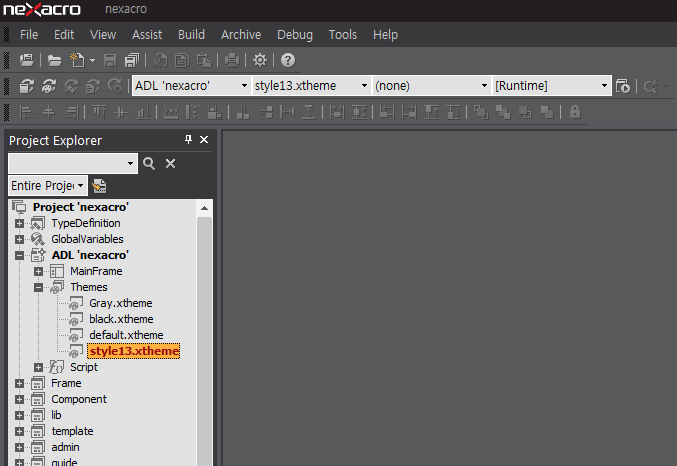

nexacro studio_0

Open the using theme file by mouse double clik from the project.

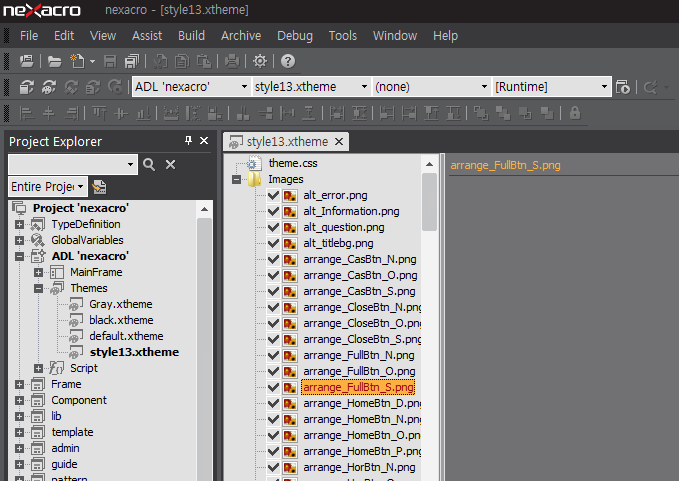

nexacro studio_1

Following the above procedure, we can verify the theme file content using Window explorer.

"After creating the TEMPORARY folder on the, copy the image files there.
Example)
C:\Program Files (x86)\nexacro\14\TEMPORARY\style13.xtheme2\Images

There may be multiple directories in TEMPORARY folder; we should check in the latest created.

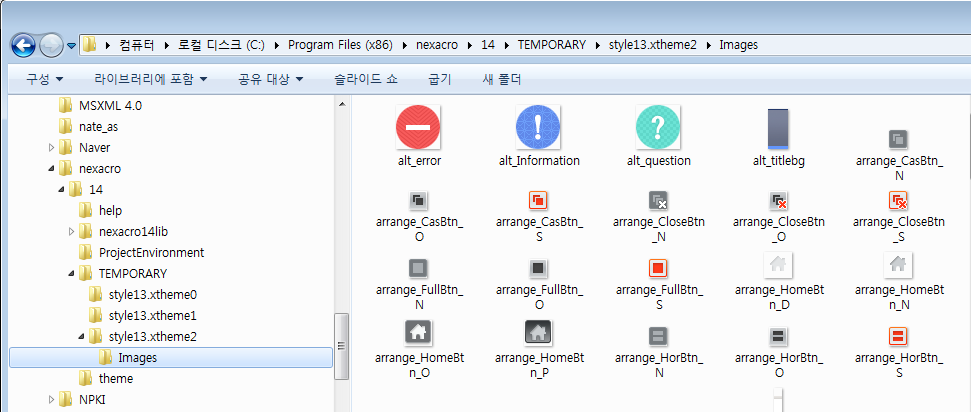

Checking theme files using window explorer

nexacro studio_2

As above folder created in TEMPORARY folder, we can verify the included image file on the location.

I want to know way of checking image files including in theme files.

Way to use Korean/English/Japanese

nexacro platform supports three types of language.
(Korean/English/Japanese) Each language appear using system local information of PC.

A way to set

locale

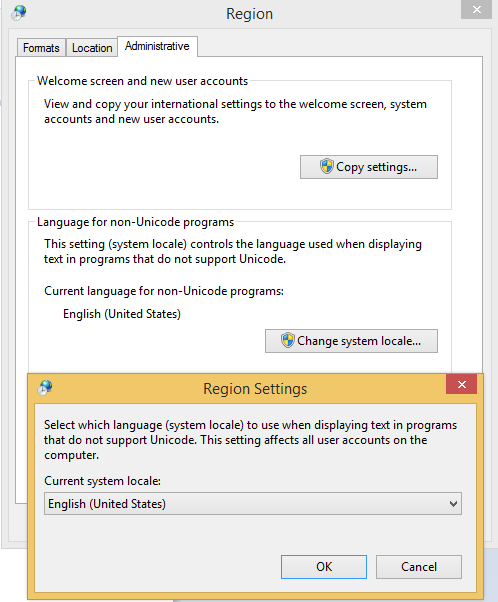

Language can be modified on [Region and language] menu in Windows Control Panel.

Verifying the setting

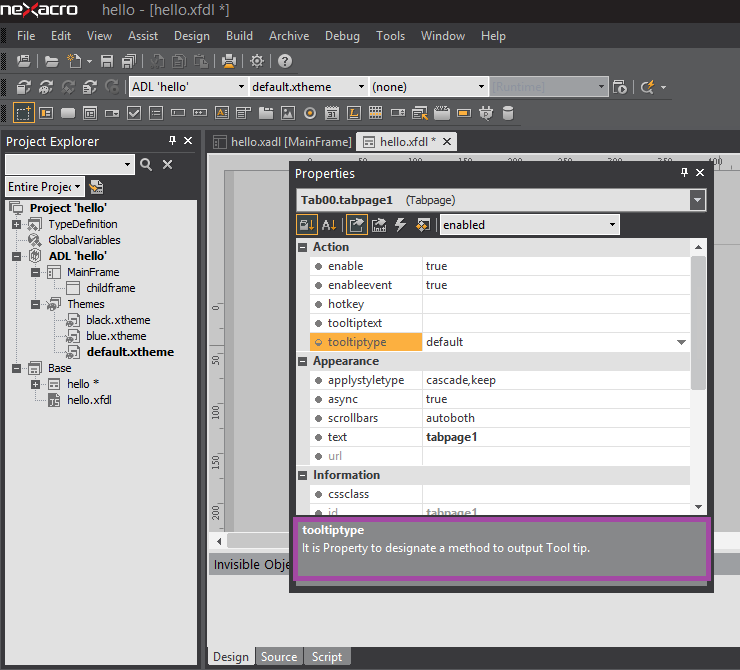

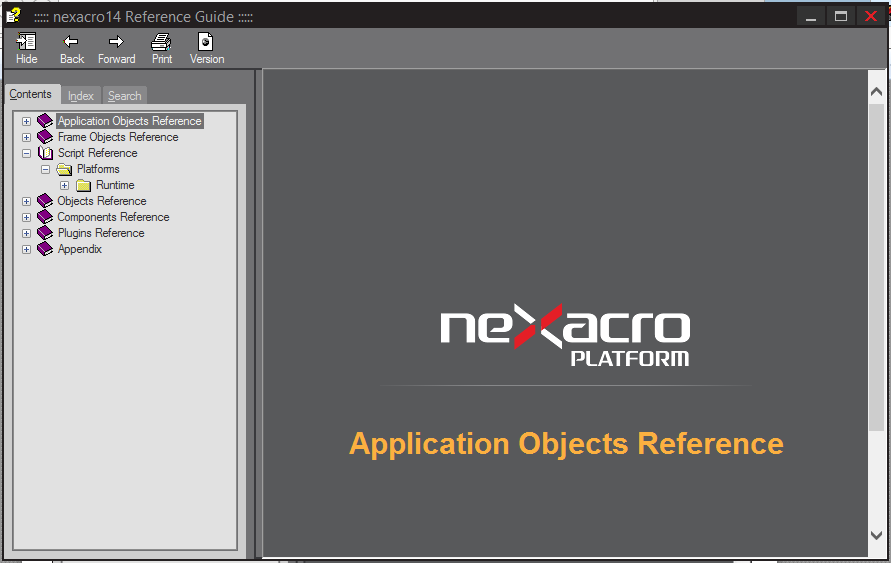

According to each language, Reference Guide(F1) and Description on bottom is changed.

locale

When the system local information changed, reboot system(PC).

Reference

If system local information of system (PC) cannot be changed, way to change Reference Guide (F1) contents to English/Japanese.

This way can not change the Description in component properties.

Replacing File

locale1

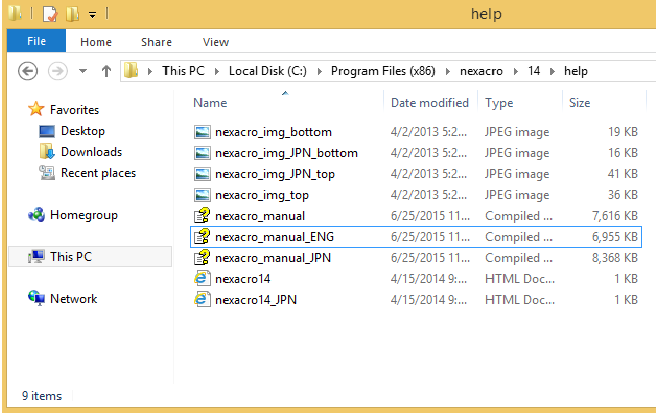

If you want English Reference Guide on Korean PC, change the filename  from nexacro_manual_ENG to nexacro_manual.
(We recommend that you back up the previous file.)

File Path

C:\Program Files (x86)\nexacro\14\help

Loading speed issue when project is opened using nexacro Studio

In case project scale is big or there are many source codes, file loading  takes long time when project is opened using nexacro Studio.
There is a solution to solve this issue.

option

Cause

When Project is opened using nexacro Studio, nexacro Studio displays all object information through scanning all FDL(Source file).

Setting Tools > Options > Project Explorer

When Project is opened, this option displays the FDL contents in Project Explorer through analysis.

속성
Settings	Description
None(only filename)	Do not display FDL contents
All	Display all FDL contents
Service	Display the FDL contents of selected services only

Default option of Project Explorer is All.

In case you select None or Services to parse specific service, Loading speed will be faster.

Reference

You can set entire development environment of nexacro Studio at Tools > Options.
