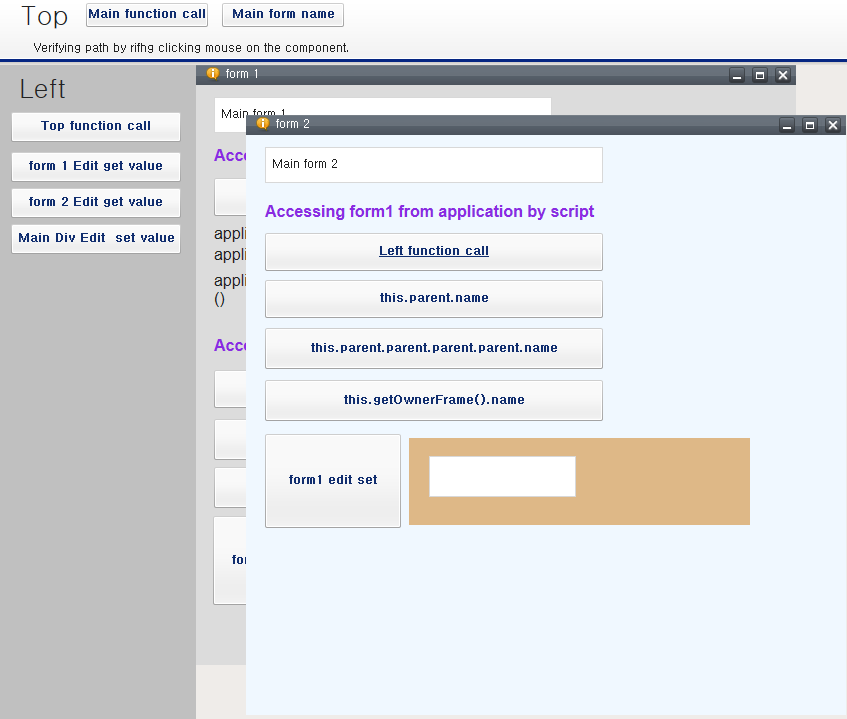

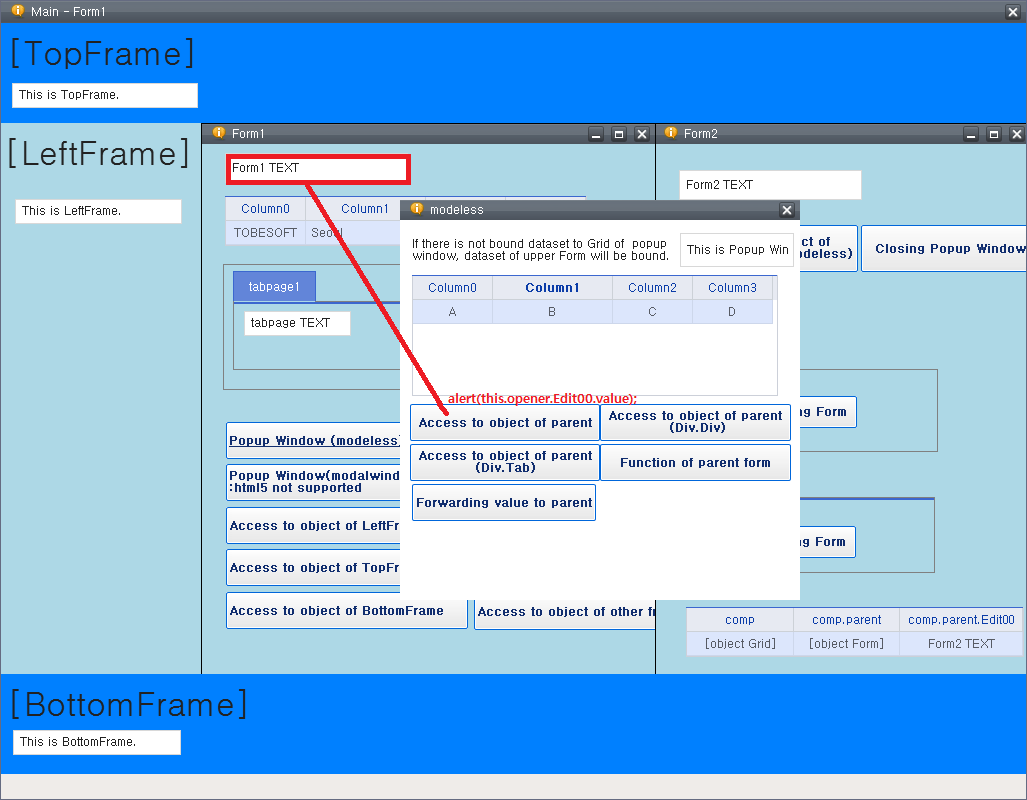

Relationship

This explains how to access Application, main frame, child frame in the application environment

Brief Description

Top Frame Description

You can access the Child Frame from Top Frame. We can also access function and value.

Left Frame Description

We can access TopFrame area, ChildFrame area from LeftFram area. We can also access values and functions.

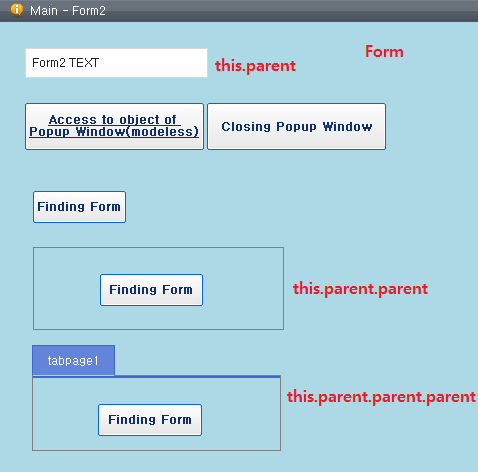

ChildFrame

form 1, 2

We can access Top Frame, Left Frame and other form's functions and values.

Execute Sample Application

http://www.xplatform.co.kr:8080/Next_JSP/nexacro/Application_Etc/Application_sample/index.jsp

Source Location

Sample\Application_Etc\Application_sample

Data Communication

This is way to identify the communication related content and controlling them.

Related method

transaction

This method is used to call service for updating value in Dataset, and After completion this calls  callback method.

Synchronize mode: While calling the script waits for result, after getting result it calls for another script.

Asynchronous mode: After calling one script, calls for another script, it does not wait for first script's result.

While calling service use URL address as PreFix

ex)
application.transaction( "MyService01" ,"DataSrv::samplexml.jsp","input1=Dataset02","Dataset03=output1","a=b","callbackFunction

Verifying HTTP error code

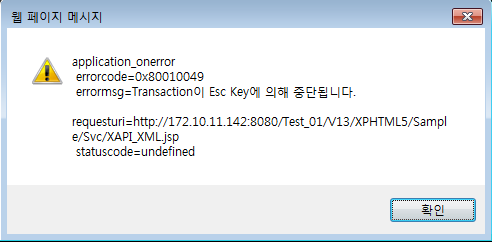

Verifying error from onerror event of ADL

By using onerrror event from ADL event on Project, we can verify the HTTP error on server while communicating.

function application_onerror(obj:Object, e:ErrorEventInfo)
{
  trace("application_onerror"
        + "\n errorcode="  + e.errorcode
        + "\n errormsg="   + e.errormsg
        + "\n requesturi=" + e.requesturi
        + "\n statuscode=" + e.statuscode);
  ...Skip...
}

Reference Detail

e.errorcode

Error code is returned.

e.errormsg

Error message is returned.

e.requesturi

Shows the error occured URI

e.statuscode

During HTTP communication when error occured is shows by status code.

The way of verification on callback method of transaction

Transaction method is used to get data on form from service. After calling service, callback method is processed to check whether the result processed normally. We can know error status using parameters of callback function.

this.fn_callback = function(serviceID, errCD, errMSG)
{
   if(errCD < 0)
   {
      this.alert("Error MSG" + errCD + "==" + errMSG);
   }
}

Meaning of the error code is blow.

0 : normally
In case of less then 0 : error
In case of greater then 0 : Warning

Reference

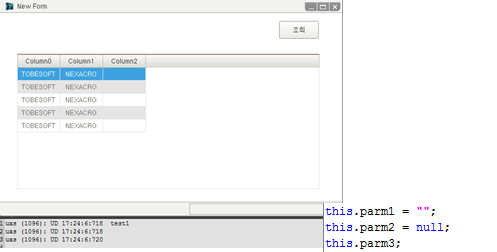

Way to receive additional variable with default variable after calling Transaction

We can receive variable defined by developer with default ErrorCode and ErrorMsg under Transaction.

nexacro platform source)

this.parm1 = "";
this.parm2 = null;
this.parm3;
this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
  this.transaction("test","http://IP//say_test.jsp","","Dataset00=Dataset00","","fn_search_after");
}
this.fn_search_after = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 trace(this.parm1);
 trace(this.parm2);
 trace(this.parm3);
}

After defining this.parm1 = “”;  , In case service (java/ jsp) puts value in VariableList, we can receive variable from call back.

Source in service)

...
syncopation
 VariableList varList = o_xpData.getVariableList();
 // Add value to VariableList directly
 varList.add("ErrorCode", "200");
 varList.add("ErrorMsg", "");
  varList.add("parm1", "test1");
 varList.add("parm2", "test2");
 varList.add("parm3", "test3");
 out.clear();

Data Inquiry

Setting number of queries

Through Service(JSP/JAVA etc) we can set number of records.

Communication Type (Response Type)

Service (JSP/JAVA etc.) we can set communication type information.
By default XML, SSV, Binary communication is supported.(It can be vary according to product version)

Setting compress

We can set compress format on the receiving data from Service (JSP/JAVA etc.). Using compress SSV data transmission can be possible in to compressed zip format.

Main Source Content

var sStartTime;
var serviceURL = "Svc::Service_Default.jsp";
this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 this.ds_data.clearData();

 var objDate = new Date();
 sStartTime = objDate.getTime();

 this.mk_time.set_value(0);
 this.mk_cnt.set_value(0);

 var arg = "row_cnt=" + this.rdCount.value + " type=" + this.comType.value +  " compress=" + this.ckCompress.value;
 this.transaction("select",serviceURL,"","ds_data=output",arg,"fn_callback");
}

this.fn_callback = function(serviceID, errCD, errMSG)
{
 if(errCD < 0)
 {
  this.alert(serviceID + "==" + errCD + "==" + errMSG);

 }else{
  var objDate = new Date();

  this.mk_time.set_value(Math.floor((objDate.getTime()-sStartTime)/1000,1) );
  this.mk_cnt.set_value(this.ds_data.rowcount);
 }
}
this.form01_onload = function(obj:Form, e:nexacro.LoadEventInfo)
{
  this.comType.set_value("XML");
  this.ckCompress.set_enable(false);
}


this.comType_onitemchanged = function(obj:Combo, e:nexacro.ItemChangeEventInfo)
{
 if(e.postvalue == 'SSV')
 {
  this.ckCompress.set_enable(true);
 } else {
  this.ckCompress.set_enable(false);
 }
}

Service Sample Source(Service_Default.jsp)

<%@ page contentType="text/html; charset=euc-kr" %><%@
page language="java"%><%@
page import = "java.io.*" %><%@
page import = "java.util.*" %><%@
page import = "java.util.zip.*" %><%@
page import="com.nexacro.xapi.tx.*" %><%@
page import="com.nexacro.xapi.data.*" %><%@
page import="com.nexacro.xapi.data.datatype.*" %><%
 out.clear();
    String strCharset = "euc-kr";

    PlatformRequest platformRequest = new PlatformRequest(request.getInputStream(), PlatformType.CONTENT_TYPE_XML, strCharset);
    platformRequest.receiveData();
    PlatformData inPD = platformRequest.getData();
    VariableList    inVariableList  = inPD.getVariableList();
    DataSetList     inDataSetList   = inPD.getDataSetList();

    String row_cnt  =  inVariableList.getString("row_cnt");
    String type  =  inVariableList.getString("type");
    String compress =  inVariableList.getString("compress");

    if(row_cnt==null || row_cnt.equals(""))
     row_cnt = "3";

    if(type==null || row_cnt.equals(""))
     type = "XML";

    if(compress==null || compress.equals(""))
     compress = "false";


    PlatformData outPD = platformRequest.getData();
    VariableList    outVariableList  = new VariableList();
    DataSetList     outDataSetList   = new DataSetList();
    GZIPOutputStream gzipOut = null;


    DataSet outDataSet = null;
    try {
        outDataSet = new DataSet("output");
        outDataSet.addColumn("SEQ",         DataTypes.STRING, 5);
        outDataSet.addColumn("ADDRESS",  DataTypes.STRING, 100);
        outDataSet.addColumn("NAME",        DataTypes.STRING, 100);
        outDataSet.addColumn("HOMEPAGE",    DataTypes.STRING, 100);
        outDataSet.addColumn("TECHHOMEPAGE",DataTypes.STRING, 100);
        int nRow;
        for(int i = 1; i <= Integer.parseInt(row_cnt); i++) {
            nRow = outDataSet.newRow();
            outDataSet.set(nRow, "SEQ",      i);
            outDataSet.set(nRow, "ADDRESS", "5F INTOPS Building, 108-7 Samsung-Dong, Gangnam-Gu");
            outDataSet.set(nRow, "NAME", "TOBESOFT Col,Ltd");
            outDataSet.set(nRow, "HOMEPAGE", "www.tobesoft.com");
            outDataSet.set(nRow, "TECHHOMEPAGE", "www.xplatform.com");
        }
        outDataSetList.add(outDataSet);
        outVariableList.add("ErrorCode", 0);
        outVariableList.add("ErrorMsg",  "SUCCESS");
        outVariableList.add("strOutputData", "※ Output Vairable을 받으려면, 화면의 전역변수로 선언하면 됩니다.");
    } catch(Exception e) {
        outVariableList.add("ErrorCode", -1);
        outVariableList.add("ErrorMsg",  e.toString());

    } finally {
        outPD.setDataSetList(outDataSetList);
        outPD.setVariableList(outVariableList);
        String Contents_type;
        if(type.equals("SSV"))
        {
         Contents_type = PlatformType.CONTENT_TYPE_SSV;
        } else if(type.equals("XML")) {
         Contents_type = PlatformType.CONTENT_TYPE_XML;
        } else {
       Contents_type = PlatformType.CONTENT_TYPE_XML;
        }

        if(compress.equals("true"))
        {
          response.setHeader("Accept-Encoding", "gzip, deflate");
             response.setHeader("X-Compression", "gzip");
             response.setHeader("Content-Encoding", "gzip");
            response.setHeader("Content-Type", "text/xml");
         String RS = String.valueOf((char) 0x1e); //rs(record seperator)
   String US = String.valueOf((char) 0x1f); //us(unit seperator)
   StringBuffer sb = new StringBuffer();
   sb.append("SSV:").append("euc-kr").append(RS); //헤더의 처음 4바이트는 "SSV"로 시작(53 53 56)

         VariableList varLstOut = new VariableList();
         varLstOut.add("ErrorCode", 0);
      varLstOut.add("ErrorMsg", "Success!!!!");
      if(varLstOut != null) {
       int size = varLstOut.size();

       for(int i=0; i<size; i++) {
        //Type 생략시 STRING 으로 고정
        Variable var = varLstOut.get(i);
        sb.append(var.getName()).append("=").append(var.getString()); //각 Variable 은 US 로 구분

        if(i<size-1) {
         sb.append(US);
        }
       }
       sb.append(RS);
      }

   sb.append("Dataset:").append("output").append(RS);  //데이터셋 생성
   sb.append("_RowType_"+US);

   for(int i=0; i<outDataSet.getColumnCount(); i++) {
    sb.append(outDataSet.getColumn(i).getName());
    sb.append(":String(255)");
    if(i<outDataSet.getColumnCount()-1) {
     sb.append(US);
    }
   }
         sb.append(RS);

         for(int totCnt=0; totCnt<outDataSet.getRowCount(); totCnt++) {
    sb.append("N"+US); //"N" is RowType. (N : Normal Record)
    for(int i=0; i<outDataSet.getColumnCount(); i++) {
     sb.append(outDataSet.getString(totCnt, i)); //Row Value
     if(i<outDataSet.getColumnCount()-1) {
      sb.append(US);
     }
    }
    sb.append(RS);
   }


         gzipOut = getGZipOut(new BufferedOutputStream(response.getOutputStream()));

         try{
          flushBuffer(gzipOut, sb);

      }
      catch(Exception e) {
      }
         if(gzipOut != null) {
          try {
           gzipOut.close();
          } catch (IOException e) {
           e.printStackTrace();
          }
         }

        } else {
         HttpPlatformResponse res = new HttpPlatformResponse(response, Contents_type, "UTF-8");
         res.setData(outPD);
         res.sendData();
        }
    }
%><%!
//Respond to Client
 private void flushBuffer(GZIPOutputStream gzipOut, StringBuffer buff) {
  try {
   byte[] arrByteRslt = buff.toString().getBytes();
   gzipOut.write(arrByteRslt, 0, arrByteRslt.length);
   gzipOut.flush();
  } catch(Throwable th) {
   System.out.println("flushBuffer() Exception : "+th.getMessage());
  }
 }
 private GZIPOutputStream getGZipOut(BufferedOutputStream bous)  throws IOException {
  GZIPOutputStream gzip = new GZIPOutputStream(bous);
  return gzip;
 }
 public  PrintWriter getZipWriter(HttpServletResponse response) throws IOException{
  short TOBE_COMPRESS_MARK   = (short)0xFFAD;

  response.resetBuffer();
        response.setContentType("application/octet-stream");

  DataOutputStream ostream = new DataOutputStream(response.getOutputStream());
  ostream.writeShort(TOBE_COMPRESS_MARK);

  DeflaterOutputStream compress = new DeflaterOutputStream(ostream);
  return new PrintWriter(compress);
 }
%>

Source Location

Sample\Application\np_Transaction_Basic.xfdl

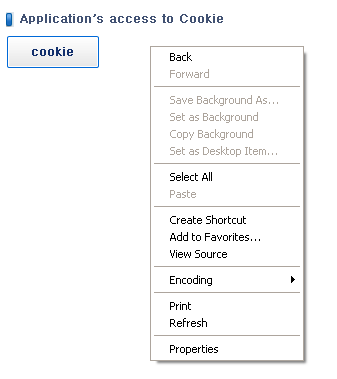

Preventing mouse right click

Running nexacro platform using a web browser, the browser Right-click supports the basic functions.
This is explaining how to prevent right mouse click.

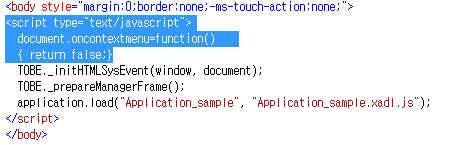

We should add the following script on the body part of HTML page

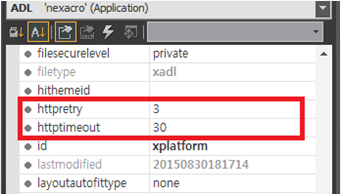

Setting httptimeout / httpretry

httptimeout

This is Property to set Wait Time (second)for HTTP Communication.

Handling error when there is no return within timeout after calling service

Error occurs when there is no return from server within assigned timeout on bottom of form.

httptimeout Priority

Timeout value is applied according to priority below.
1) designated in script
2) designated in Properties of ADL

Reference

While big data searching or saving, it takes long time.
In this case httptimeout value should be assigned enough time. And assign 0 to value of httpretry.

httpretry

This is property to designate number of retry for HTTP communication when there is no return within httptimeout.

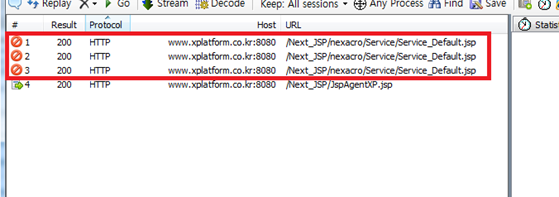

When there is httpretry value(bigger than 0), service is recalled as many as designated number.

Handling Session

We describe here how to handle session (Cookies) in nexacro platform.

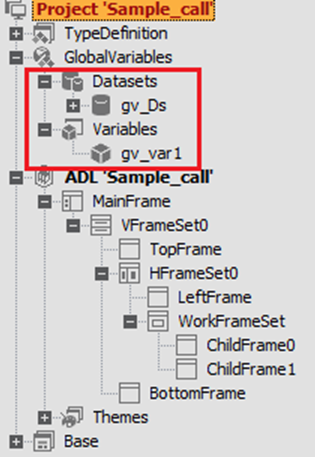

nexacro platform defines global variables to use cookie options setting these parameters.
By adding these variable to cookie, can be sent to the server.

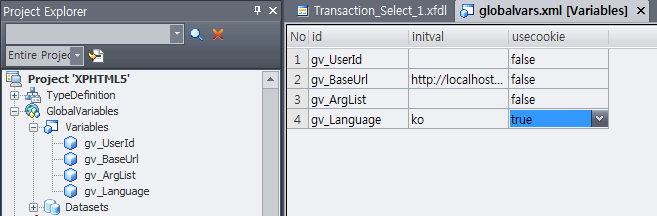

Set usecookie

While calling server data we can set cookie parameters, by setting usecookie true in the GlobalVariables, these parameters delivered to the service together.

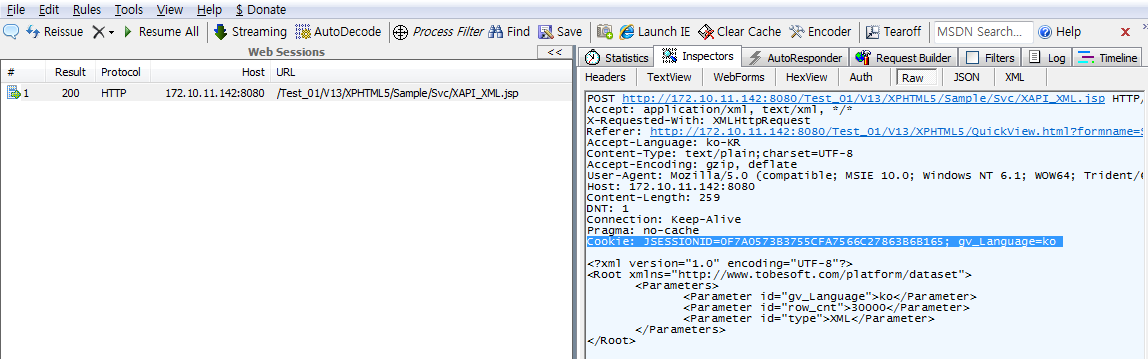

Verifying use of packet program

We can verify the actual cookie value by traffic monitor program between Client and Server.

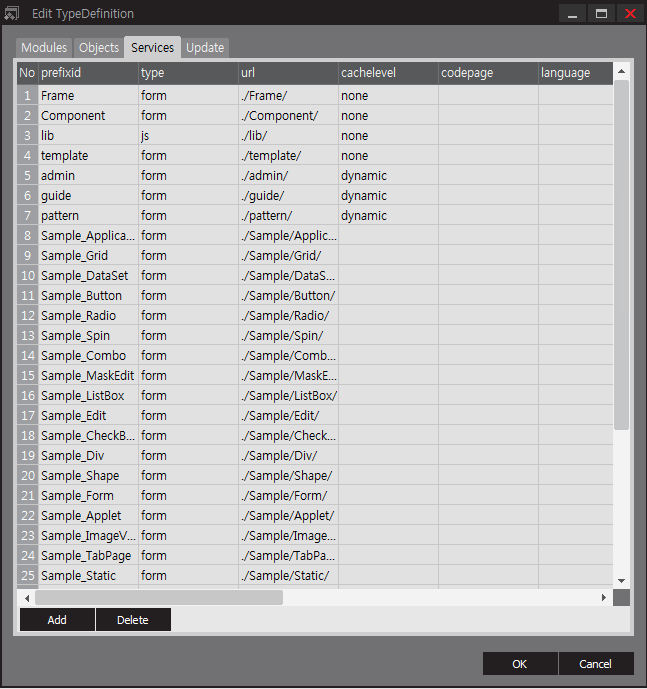

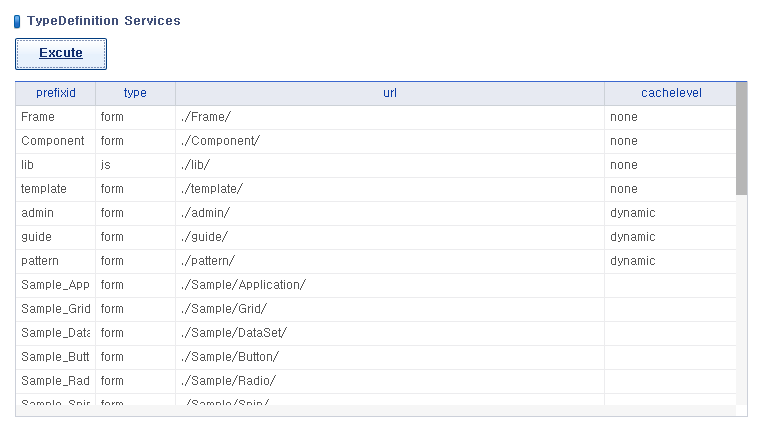

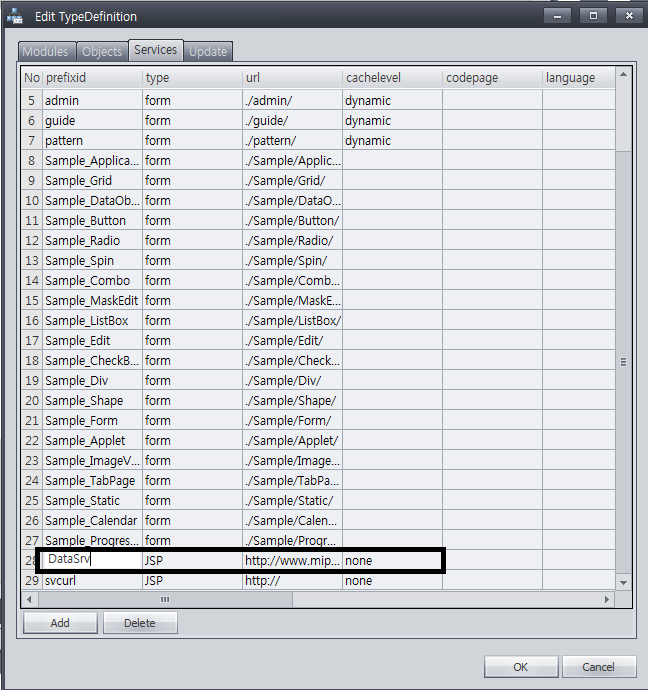

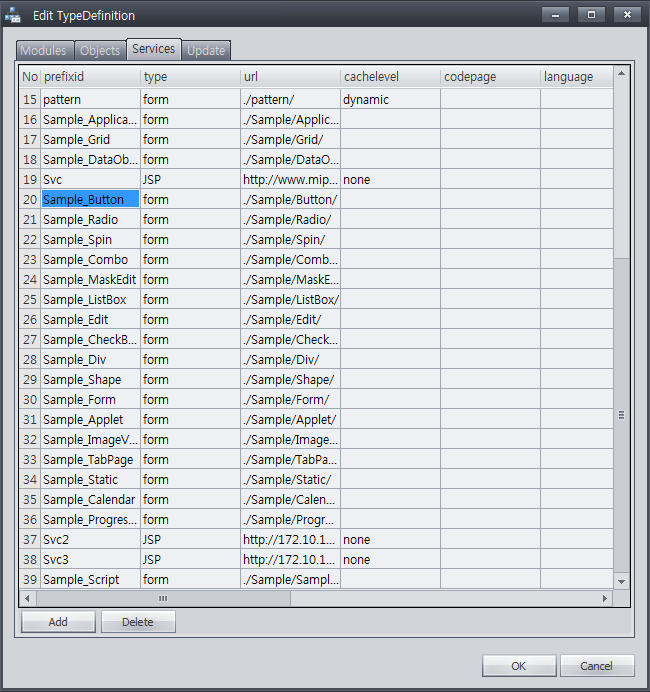

Setting Prefix

In the nexacro platform we can use Prefix for grouping and calling service.

• Form type bases on Service, can be divided into JSP and others, form of the screen means that the source location of the form.

• If type is JSP or others for data retrieve/ save, we can set prefix on the URL path.

Cache

nexacro platform's cache setting follows client's web browser setting.

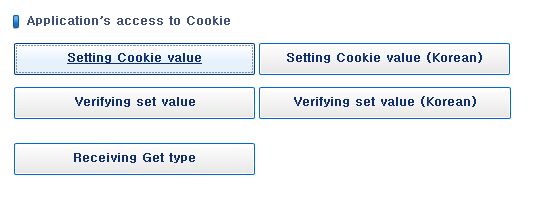

Cookie

Verifying Cookie value

This is the description to check the cookie value on web browser of nexacro platform HTML5 14 running environment.

Main Source Content

Source Location

Sample\Application\np_Application_Cookie.xfdl

Verifying Cookie value and setting

This explains about verifying cookie value of web browser on nexacro platform Web broswer (html5).

Main source code

Setting cookie value

this.setCookie = function(cName, cValue, cDay){
  var expire = new Date();
  expire.setDate(expire.getDate() + cDay);
  cookies = cName + '=' + escape(cValue) + '; path=/ '; // Use escape(cValue)  to prevent Korean breaking.
  if(typeof cDay != 'undefined') cookies += ';expires=' + expire.toGMTString() + ';';
  window.document.cookie = cookies;
}

Verifying set value

this.getCookie = function (cName) {
  cName = cName + '=';
  var cookieData = window.document.cookie;
  var start = cookieData.indexOf(cName);
  var cValue = '';
  if(start != -1){
    start += cName.length;
    var end = cookieData.indexOf(';', start);
    if(end == -1)end = cookieData.length;
    cValue = cookieData.substring(start, end);
  }
  return unescape(cValue);
}

Receiving Get type

In case of Get type, you can verify forwarded value as parameter value(name) at end of called URL .
Parameter name can be changed while developing.

Example)
support.tobesoft.co.kr/index.html?name=nexacro platform

this.Button04_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
  var address = unescape(location.href);
  var param = "";
  if(address.indexOf("name", 0) != -1) {
    param = address.substring(address.indexOf("name", 0) + 5);
  }
  alert(param);
}

Source Location

Sample\Application\np_Application_Cookie2.xfdl

Personalizing using setPrivateProfile / getPrivateProfile method

setPrivateProfile, getPrivateProfile are method to save for personalizing in Application, and get saved data.

Main Source Content

this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
  var bSucc;
  bSucc =application.setPrivateProfile("Data", this.Edit00.value);
}
this.Button01_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
  var strValue;
  strValue = application.getPrivateProfile("Data");
  alert(strValue);
}

Reference

setPrivateProfile, getPrivateProfile method use  localStorage in browser.

Source Location

Sample\Application\np_PrivateProfile.xfdl

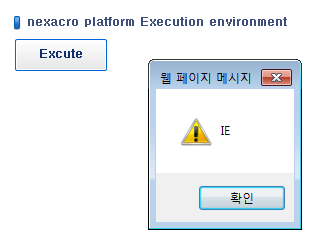

Run Environment of nexacro platform

We can verify information about the Run environment of nexacro platform

Main Source Content

this.Application_environment_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 this.alert(system.navigatorname);
}

Reference Detail

navigatorname

This property returns the information of application environment

For example)
Broswer : nexacro
IE Embedded : nexacro ActiveX
Etc HTML5 : "IE", "Chrome", "Gecko" etc

Source Location

Sample\Application\np_Application_Navigatorname.xfdl

Changing Image

Way to change the Loading Image (waitingimage )

nexacro platform calls service using transaction method for Data communication.
While searching data a loading image appears. This is how to change the default image.

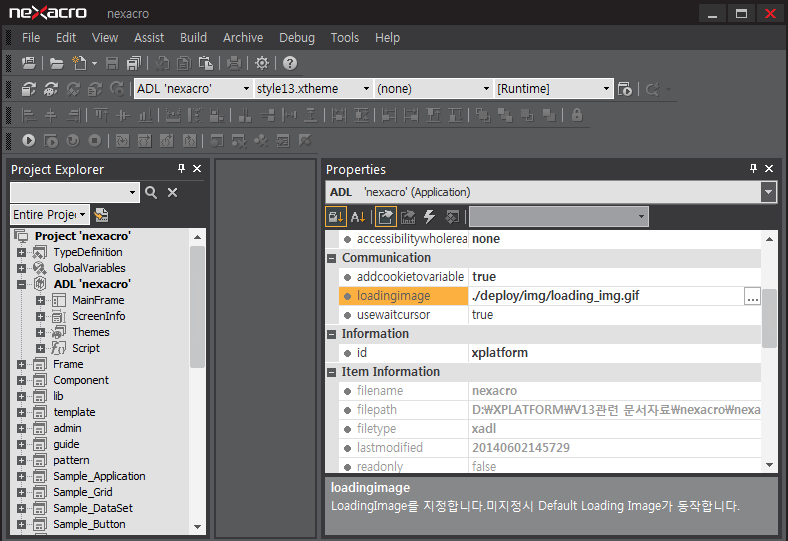

Way to change ADL property

Open the project you want to change and then set the image which you want to use on loadingimage property in ADL property

Image after changing

TypeDefinition

Based on questions that asked frequently, this explains about TypeDefinition that is environment information being used in nexacro platform.

Services Information

We can verify the services information using application.services property.

Verifying information using application.services

Main Source Content

this.Application_Cookie_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 this.dsServices.clearData();
 for(var i=0;i<application.services.length;i++)
 {
  this.dsServices.addRow();
  this.dsServices.setColumn(this.dsServices.rowposition,"prefixid",application.services[i].prefixid);
  this.dsServices.setColumn(this.dsServices.rowposition,"type",application.services[i].type);
  this.dsServices.setColumn(this.dsServices.rowposition,"url",application.services[i].url);
  this.dsServices.setColumn(this.dsServices.rowposition,"cachelevel",application.services[i].cachelevel);
 }
}

Reference Detail

When we want to change the value in Services, We can use as below.

application.services["Svc"].url= "./Next_JSP/nexacro/Service/";

Source Location

Sample\Application\np_Application_TypeDefinition_Services.xfdl

Ways to access object, form and frame with each other in nexacro platform

This explains about way to access to Popup window, Form and Frame etc which are used for user interface (forwarding data with each other)/ controlling interface)  using sample source developed by nexacro platform.


This is simple content but users are confused while developing.
Access way is dependence on frame structure. if you study this , you can do developing easily.

Way to forward Argument when a Popup Window calls

Argument is forwarded using parameter of method.

Refer to sample source below

Open

application.open("modeless","Base::Form1_Pop.xfdl",this.getOwnerFrame(), {mode:'modeless',ds:this.Dataset01}, "showtitlebar=true", 400, 200);

showModal

popWin.showModal(this.getOwnerFrame(),{mode:'modal',ds:this.Dataset01},this, "fn_pop_callback");

showModalWindow

system.showModalWindow(popWin,"modeless2",this.getOwnerFrame(), {mode:'showModalWindow',ds:this.Dataset01}, this);

showModalSync

system.showModalSync(popWin,"modal2",this.getOwnerFrame(), {mode:'showModalSync',ds:this.Dataset01}, this);

Way to check the forwarded value by Popup Window

Argument checking

Ex) this.parent.variable name
    this.parent.dataset name

In case the forwarded value is Dataset object

In case the forwarded value is Dataset, need to copy using copydada.

Ex) this.Dataset01.copyData(this.parent.dataset name);

Way to access from Popup Window to parent Form

In case of accessing from Popup Window to parent Form, approach using opener attribute as below.

Ex) this.opener.object

Way to forward value from Popup Window to parent Form.

In case of forwarding value from Popup Window to parent Form, forward as the same form as below.

open, showModalSync

Access to function or object of parent Form and close Window after setting value using this.opener.

showModal

While closing window, value is forwarded by callback function which is set as parameter value of close function.
(Only string type value is possible to forward.)

showModalWindow

Forward to argument of close method.

Way to access frame with each other

Accessing using full path name

application.mainframe.VFrameSet0.HFrameSet0.LeftFrame
application.mainframe.VFrameSet0.HFrameSet0.WorkFrameSet.ChildFrame0

Accessing using index of all property

application.all[0].all[0].all[1].all[0] → LeftFrame
application.all[0].all[0].all[1].all[1].all[0] → ChildFrame0

Accessing using id of all property

application.all["mainframe"].all["VFrameSet0"].all["HFrameSet0"].all["LeftFrame"]

Accessing frame with each other

1) Accessing using path name
   application.mainframe.VFrameSet0.HFrameSet0.LeftFrame.form
2) Accessing using index of all property
   application.all[0].all[0].all[1].all[0].form
3) Accessing using id of all property
   application.all["mainframe"].all["VFrameSet0"].all["HFrameSet0"].all["LeftFrame"].form

Way to access Global Dataset, Variable

Global Dataset

application.GlobalDatasetName
Ex) application.gv_Ds

Global Variable

1. application.GlobalVariableName

2. Ex) application.gv_var1

Way to access Popup Windows connected to Application

application.popupframes["popupframeID"].form.object
application.popupframes[0].form.object

Way to access from componet to parent Form

On Form

obj.parent

On Div

obj.parent.parent

On Tab

obj.parent.parent.parent

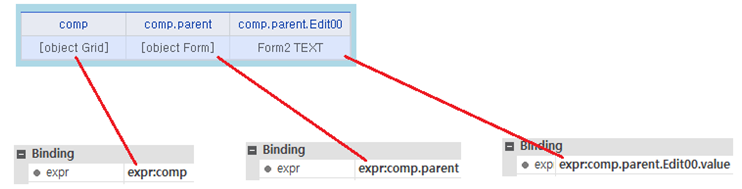

Way to access from grid component

Refer to content below way to access using expr on Grid.
1) comp : Grid
2) comp.parent : Parent Form
3) comp.parent.object : component of Form

Notes for Nan, Infinity, null

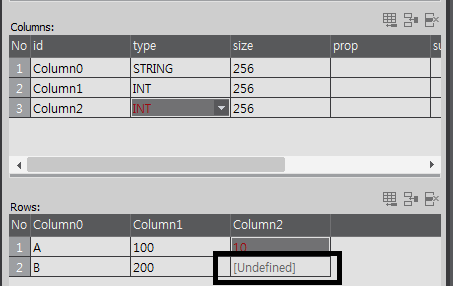

In case there is null value in Dataset data, nexacro recognizes the value as undefined value.
If null values are involved in arithmetic operations, data is output abnormally.
This describes ways to solve this error.

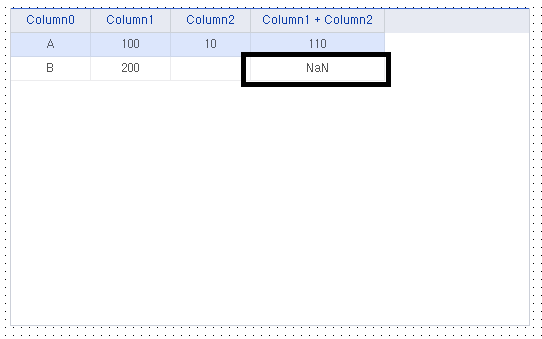

NaN(undefined)

phenomenon

Solution

NaN, Infinity and Null value can be replaced with number using toNumber() method provided by nexacro.

Syntax)
nexacro.toNumber(varValue [, varNanVal [, varPinfVal [, nIfnVal]]])

Source Location

Sample\Application_sample\np_Operation.xfdl

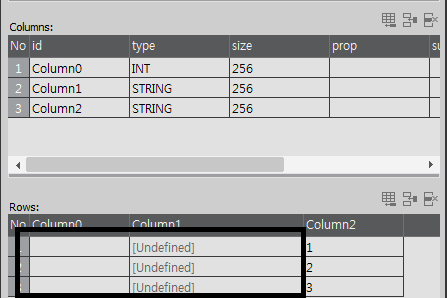

Infinity

phenomenon

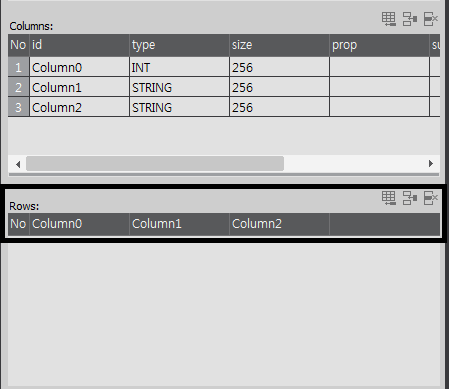

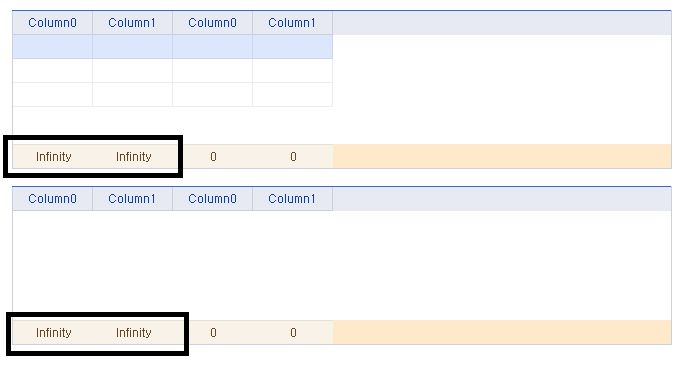

In case Row count of dataset is zero or column value of all rows is blank or column type is string, return value of getAvg() is displayed as Infinity.

Solution

NaN, Infinity and Null value can be replaced with number using toNumber() method provided by nexacro.

Syntax)
nexacro.toNumber(varValue [, varNanVal [, varPinfVal [, nIfnVal]]])

Source Location

Sample\Application_sample\np_Operation2.xfdl

Reference

for(var i=0;i<this.Dataset00.getRowCount();i++)
 {
  if((this.Dataset00.getColumn(i,"Column0") == null)
     || (this.Dataset00.getColumn(i,"Column0") == ""))
  {
   this.Dataset00.setColumn(i,"Column0",0);
  }
 }
