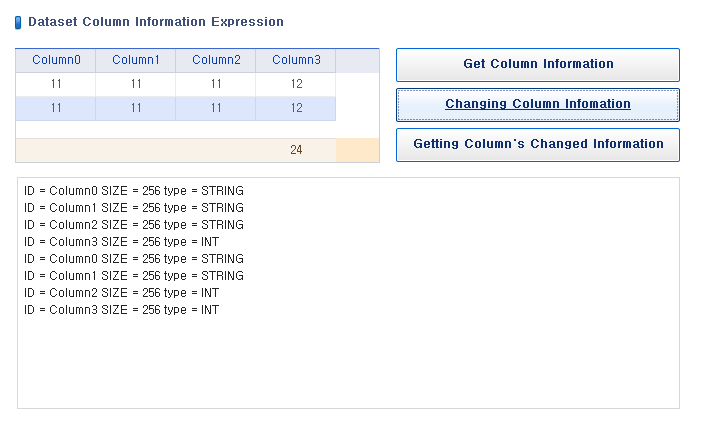

Verifying column information of DataSet

This describes how to verify the DataSet column's information and how to change column type.

DataSet can get name, size and type information by using the getColumnInfo.

Verifying DataSet Information

this.Button00_onclick = function (obj:Button, e:ClickEventInfo)
{
 var strText = new String();
 for (var i = 0; i < this.Dataset00.getColCount(); i++)
 {
  var objColInfo = this.Dataset00.getColumnInfo(i);
  strText += "ID = " + objColInfo.name;
  strText += " SIZE = " + objColInfo.size;
  strText += " type = " + objColInfo.type;
  strText += "\n";
 }
 this.TextArea00.set_value(strText);
}

DataSet column information changing

this.Button01_onclick = function (obj:Button, e:ClickEventInfo)
{
 var objColInfo = this.Dataset00.getColumnInfo(2);
 objColInfo.set_type("INT");
}

Verifying Changed Column Information

this.Button02_onclick = function (obj:Button, e:ClickEventInfo)
{
 var strText = new String();
 for (var i = 0; i < this.Dataset00.getColCount(); i++)
 {
  var objColInfo = this.Dataset00.getColumnInfo(i);
  strText += "ID = " + objColInfo.name;
  strText += " SIZE = " + objColInfo.size;
  strText += " type = " + objColInfo.type;
  strText += "\n";
 }
 this.TextArea00.set_value(this.TextArea00.value + strText);
}

Source Location

Sample\DataSet\np_Dataset_ColumnInfo.xfdl

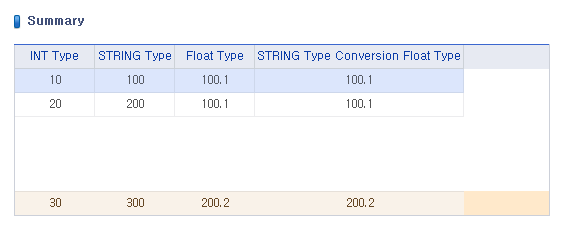

Summary

It explanation is about how to implements sum of DataSet columns.

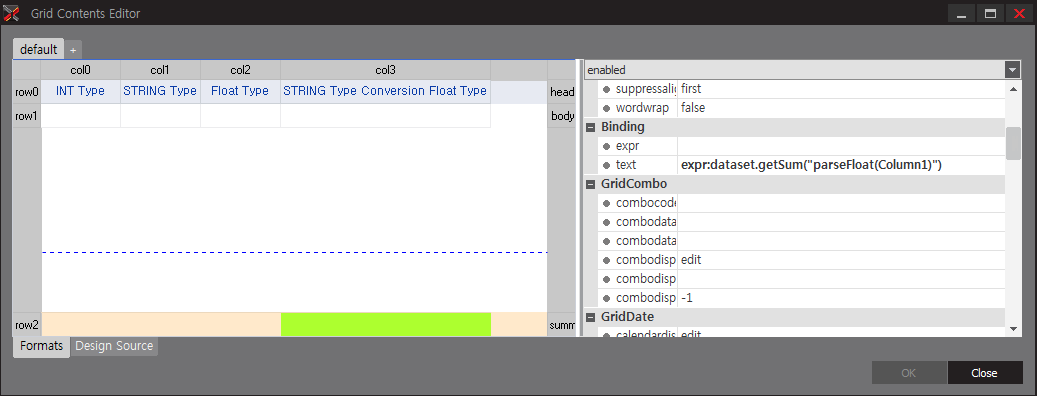

Implementation Expr

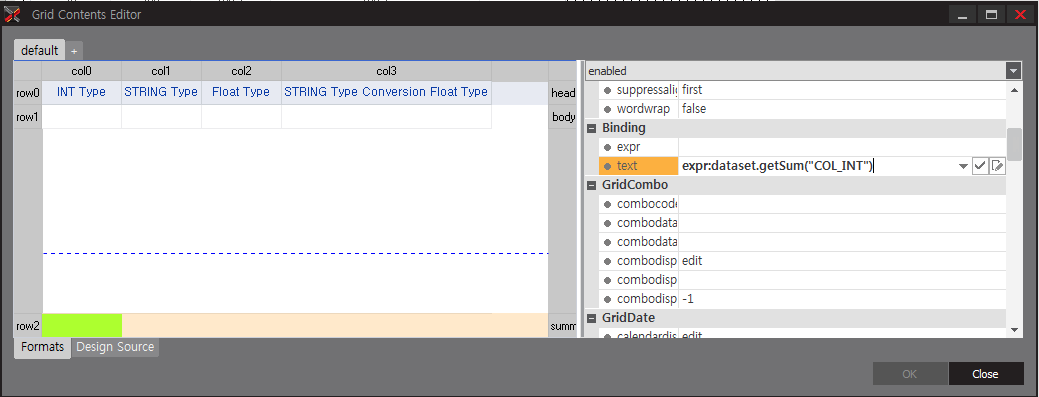

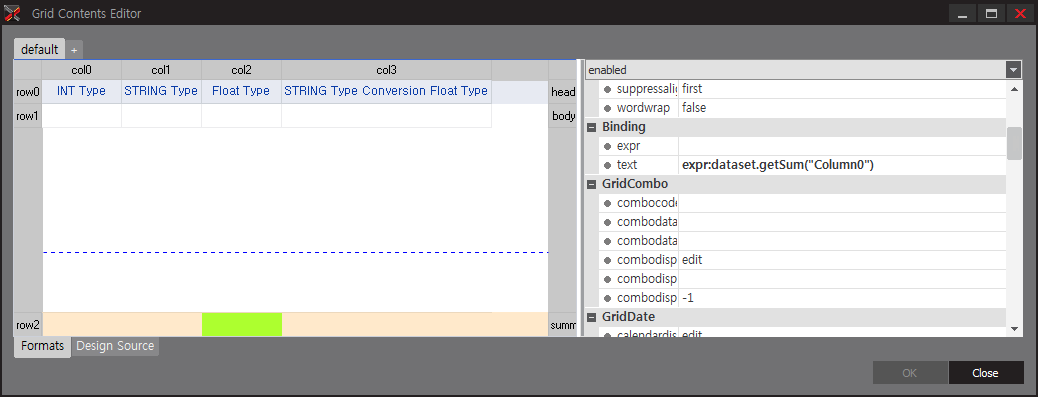

Int type and Float type can implement  getSum directly without conversion.

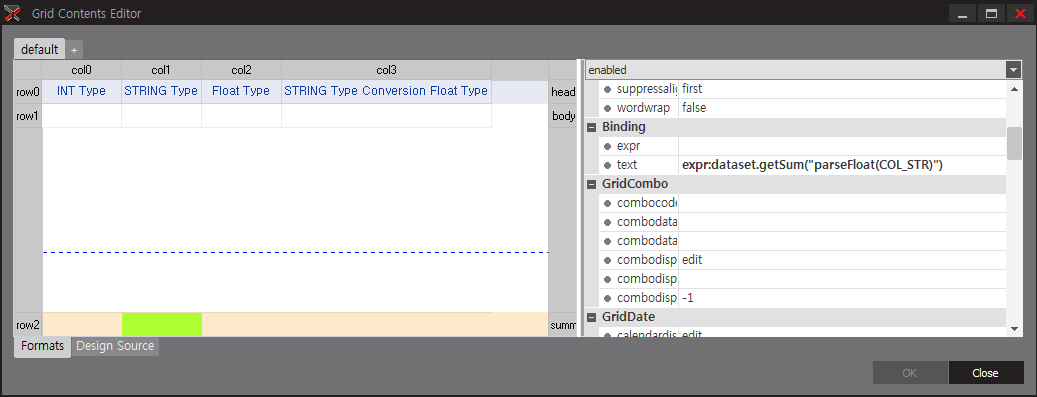

• If the type of the column is String then we convert it into Int or float before applying getSum method, after converting into Int or Float we can express the sum of the column.

Reference

Source Location

Sample\DataSet\np_Dataset_getSum.xfdl

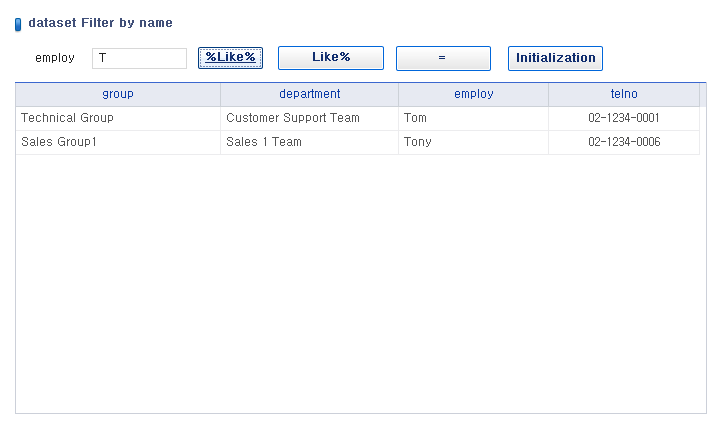

Filter

Using filter implementing like search criteria

After input employee name we can implement %Like%, like% and = different search criteria.

Related Method

filter

This method is used to show the records from Dataset records by satisfied conditions.

% Like% implementation

It will implement the % front and back side of input value of employ and search all the values matching to these criteria.

this.Button00_onclick = function (obj:Button, e:ClickEventInfo)
{
 this.ds_data.filter("String(employ).substr(0," + this.ed_name.value.length + ").indexOf('" +  this.ed_name.value + "') >= 0");
}

Like% implementation

It implements the search criteria by adding % value at the end of empoy.

this.Button02_onclick = function (obj:Button, e:ClickEventInfo)
{
 this.ds_Employ.filter("String(employ).indexOf('" + this.ed_name.value + "') >= 0");
}

= implementation

If you wish to search the exact matching values to employ, this returns the exact matching values the search criteria.

this.btn_search_onclick = function (obj:Button, e:ClickEventInfo)
{
 this.ds_data.filter("employ=='" + this.ed_name.value + "'");
}

Source Location

Sample\DataSet\np_Dataset_Filter.xfdl

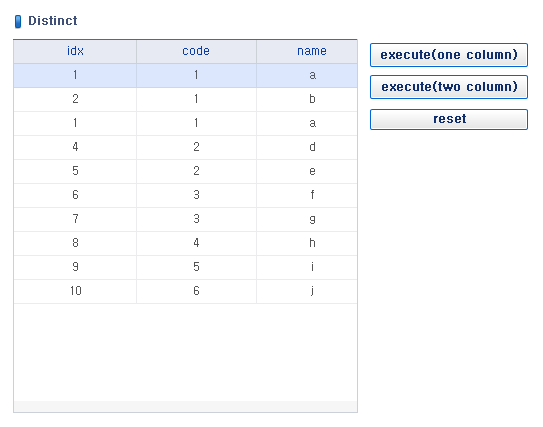

Removing duplicate data using by Filter

This describes the way to remove the duplicate row in searched data.

Main Source Content

Basic Filter content

this.Button02_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 var sExpr = "rowidx==dataset.findRowExpr(\"code=='\" + code + \"'\")";
 this.Dataset00.filter(sExpr);
}

Setting Filter on several column using function made by user

this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 this.gf_distincDsFilter(this.Dataset00, "code,name");
}

this.gf_distincDsFilter = function(objDs, sColID)
{
 var arrArgs = this.gf_Trim(sColID).split(",");
 var sFilterExpr  = "";
 var sFindRowExpr = "";
 for (var i=0; i<arrArgs.length; i++)
 {
  if (objDs.getColumnInfo(arrArgs[i]) == null) continue;

  sFindRowExpr += (this.gf_IsNull(sFindRowExpr) == false) ? " && " : "";
  sFindRowExpr += "" + arrArgs[i] + "=='\" + " + arrArgs[i] + " + \"'";
 }

 if (this.gf_IsNull(sFindRowExpr) == false) {
  sFilterExpr = "rowidx==dataset.findRowExpr(\"" + sFindRowExpr + "\")";
 }
 objDs.filter(sFilterExpr);
}

Source Location

Sample\DataSet\np_Dataset_Distinct_Filter.xfdl

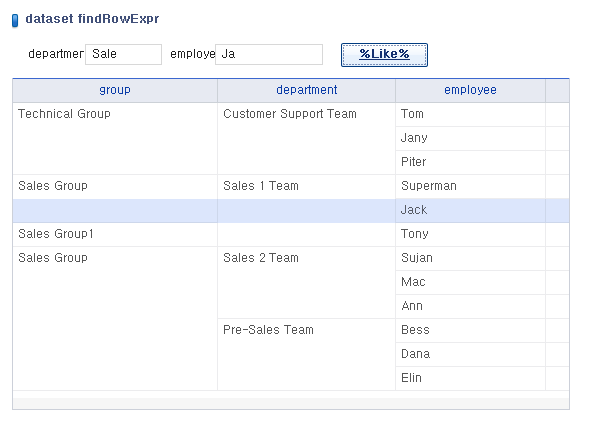

Searching multiple column using findRow Expr

You can search multiple column using findRowExpr method provided Dataset.

Main Source Content

this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 var nRow = this.ds_data.findRowExpr("department.toString().indexOf('" + this.ed_department.value.replace("'","\\'") + "')>=0&&employee.toString().indexOf('" + this.ed_employee.value.replace("'","\\'") + "')>=0");


 if(nRow >= 0)
 {
  this.ds_data.set_rowposition(nRow);
 } else {
  this.alert("There is no matched conditions.");
  return;
 }
}

Source Location

Sample\DataSet\np_Dataset_findRowExp.xfdl

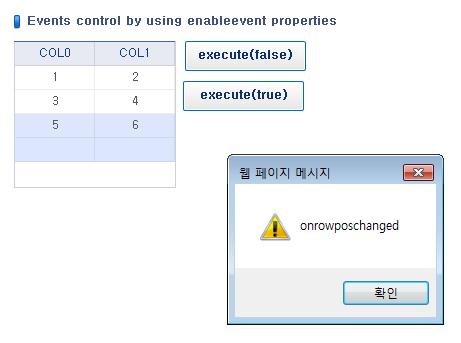

Event controlling by using enableevent property

When we are working with large amount of data on screen using DataSet, we may have experience Flicker problem.
To prevent this Flicker problem we can control it by using enableevent property, this property handles flicker problem.

Related Method

enableevent

By following the enableevent property of DataSet, we can run/stop the events occurring from the DataSet.

onnrowposchanged

This event is occurred when we change rowposition property of DataSet.

Main source content

this.btn_execute0_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
  this.ds_data.set_enableevent(false);
  this.ds_data.addRow();
  this.ds_data.set_enableevent(true);
}

Source Location

Sample\DataSet\np_Dataset_EnableEvent.xfdl

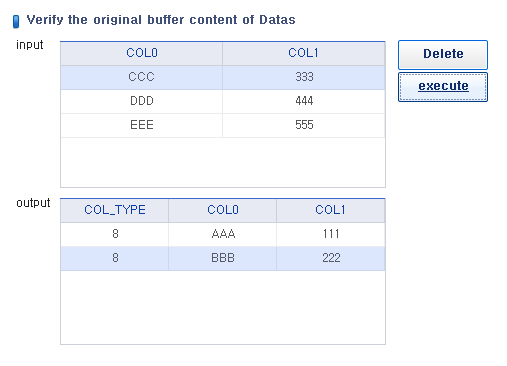

Verifying the original buffer content of DataSet

• If any record in Dataset is modified or deleted, original buffer contains the original values before modification or deletion.

• Using getRowType and getOrgColumn methods we can verify the state and content of data from original buffer.

Related Method

getRowType

The following Dataset methods are using to obtain the state of the specified record.
1: The original record state
2: Added record state
4: Modified record state
8: Deleted record state

getOrgColumn

This method is used to get specified column's value before changing the record.

getDeletedColumn

This method is used to get deleted number of record from Dataset.

getDeletedColumn

This method is used to get column's value of deleted record.

Main source content

/*
 * File Name   : Comp_Dataset_RowType
 * Discription : Verifying the recorded Original buffer content and RowType of Dataset
 */
this.btn_execute0_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 this.ds_data.deleteRow(this.ds_data.rowposition);
}
this.btn_execute1_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 this.ds_org.addColumn("COL_TYPE", "STRING");

 for (var i = 0; i < this.ds_data.colcount; i++)
 {
  this.ds_org.addColumn(this.ds_data.getColID(i), "STRING");
 }

 this.fn_orgDataset();
}
/*
 * Function Name : fn_orgDataset
 * Description   : Verifying recorded OriginBuffer
 * Parameter     :
 * Return        :
 * Example       : fn_orgDataset();
 */
this.fn_orgDataset = function()
{
 var sOrgCol = "";
 var sOrgVal = "";
 this.ds_org.clearData();

 // Modifying content
 for (var i = 0; i < this.ds_data.rowcount; i++)
 {
  var nRowType = this.ds_data.getRowType(i);
  if (nRowType == 4)
  {
   this.ds_org.addRow();
   this.ds_org.setColumn(this.ds_org.rowposition, "COL_TYPE", nRowType);
   for (var j = 0; j < this.ds_data.colcount; j++)
   {
    sOrgCol = this.ds_data.getColID(j);
    sOrgVal = this.ds_data.getOrgColumn(i, sOrgCol);
    this.ds_org.setColumn(this.ds_org.rowposition, sOrgCol, sOrgVal);
   }
  }
 }

 // Modifying content
 for (var i = 0; i < this.ds_data.getDeletedRowCount(); i++)
 {
  this.ds_org.addRow();
  this.ds_org.setColumn(this.ds_org.rowposition, "COL_TYPE", 8);
  for (var j = 0; j < this.ds_data.colcount; j++)
  {
   sOrgCol = this.ds_data.getColID(j);
   sOrgVal = this.ds_data.getDeletedColumn(i, sOrgCol);
   this.ds_org.setColumn(this.ds_org.rowposition, sOrgCol, sOrgVal);
  }
 }

 this.grd_output.createFormat();
}

Source Location

Sample\DataSet\np_Dataset_RowType.xfdl

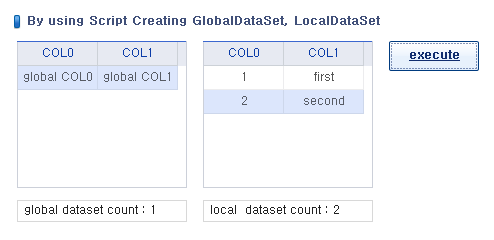

By using Script Creating GlobalDataSet, LocalDataSet

Using new operator we can create DataSet Dynamically on the global zone and form.

The main source content

/*
 * File Name   : Comp_Dataset_UseScript
 * Description : By using Script Creating GlobalDataSet, LocalDataSet
 */
/*  Button Click  */
this.btn_execute_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
    var objGdS = new Dataset;
    application.addVariable("gds_data", objGdS, "global");
    application.gds_data.set_name("gds_data");
    application.gds_data.addColumn("COL0","String");
    application.gds_data.addColumn("COL1","String");
    application.gds_data.addRow();
    application.gds_data.setColumn(application.gds_data.rowposition,"COL0","global COL0");
    application.gds_data.setColumn(application.gds_data.rowposition,"COL1","global COL1");
    this.grd_output0.set_binddataset("gds_data");
    this.grd_output0.createFormat();

    var objLdS = new Dataset;
    objLdS.set_name("ds_data");
    this.addChild("ds_data", objLdS);
    this.ds_data.addColumn("COL0","String");
    this.ds_data.addColumn("COL1","String");
    this.ds_data.addRow();
    this.ds_data.setColumn(this.ds_data.rowposition,"COL0","1");
    this.ds_data.setColumn(this.ds_data.rowposition,"COL1","first");
    this.ds_data.addRow();
    this.ds_data.setColumn(this.ds_data.rowposition,"COL0","2");
    this.ds_data.setColumn(this.ds_data.rowposition,"COL1","second");
    this.grd_output1.set_binddataset("ds_data");
    this.grd_output1.createFormat();
    this.Edit00.set_value('global dataset count : ' + application.all["gds_data"].rowcount);
    this.Edit01.set_value('local  dataset count : ' + this.all["ds_data"].rowcount);
}

Reference Details

GlobalDataSet

Global DataSet can be used at any position in application, but it can be accessed in the memory until the application termination so depending on the application we must decide the location to use

Source Location

Sample\DataSet\np_Dataset_UseScript.xfdl

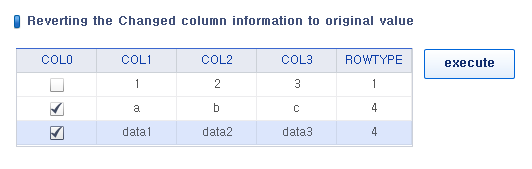

Reverting the Changed column information to original value

After modifying the retrieved data, we can  revert to original data

Main source content

/*
 * File Name   : Dataset_ChangeRowtype1
 * Description : Selected record in the DataSet return to the original value
 */

 /* set rowtype */
this.btn_execute_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 var iRowCount = this.ds_data.getRowCount();
 var iColCount = this.ds_data.getColCount();

 for (var i = 0; i < iRowCount; i++)
 {
        if (this.ds_data.getColumn(i, "COL0") == 1 && this.ds_data.getRowType(i) != "1")
        {
            for (var j = 0; j < iColCount; j++)
            {
                if (this.ds_data.getColumn(i, j) != this.ds_data.getOrgColumn(i, j))
                {
                    this.ds_data.setColumn(i, j, this.ds_data.getOrgColumn(i, j));
                }
            }

            this.ds_data.setColumn(i, "COL0", 1);
            this.ds_data.set_updatecontrol(false);
            this.ds_data.setRowType(i,Dataset.ROWTYPE_NORMAL);
            this.ds_data.set_updatecontrol(true);
        }
 }
}

Source Location

Sample\DataSet\np_Dataset_ChangeRowtype1.xfdl

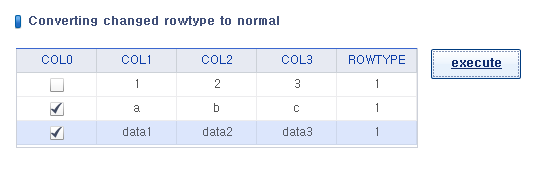

Converting changed rowtype to normal

If rowType changes in DataSet due to selecting checkbox on the grid, rowType can be changed to normal

If we don't want to send modified rowtype, we can changed it to normal so we can prevent sending data to server side.

The main source of information

this.btn_execute_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 중략...
  if (bChkFlag == true && nChkCnt == 1)
   {
    this.ds_data.setRowType(i, Dataset.ROWTYPE_NORMAL);
   }
  }
 }
 this.ds_data.set_updatecontrol(true);
 this.ds_data.set_enableevent(true);
}

Source Location

Sample\DataSet\np_Dataset_ChangeRowtype2.xfdl

Determine whether the DataSet is updated

Using getRowType method of DataSet we can determine the modifications.

Related Method

updatecontrol

This attribute is used to set whether the rowType should be changed automatically or not.
If we changed updatecontrol attribute to false, we can change rowType by using setRowType method.

getDeletedRowCount

This method is used to obtain the number of rows that have been deleted from Dataset.

getRowType

We can get rowType of Dataset. For rowType reference nexacro studio Help(Appendix>Constant>Dataset>Row Type)

The main source of information

this.fn_isUpdate = function(objDs)
{
 var bRtn = false;
 if (objDs.updatecontrol)
 {
  if (objDs.getDeletedRowCount() > 0)
  {
            bRtn = true
            return bRtn;
        }
 }
 var nRowType;
 for (var i = 0; i < objDs.getRowCount(); i++)
 {
  nRowType = objDs.getRowType(i);
  if (nRowType == 2 || nRowType == 4 || nRowType == 8)
  {
   bRtn = true;
   break;
  }
 }
 return bRtn;
}

Source Location

Sample\DataSet\np_Dataset_CheckUpdated.xfdl
