Definition about Scope of variable and function in nexacro
Script used in naxacor uses JavaScript spec as standard, so JavaScript can be used for various user and source.

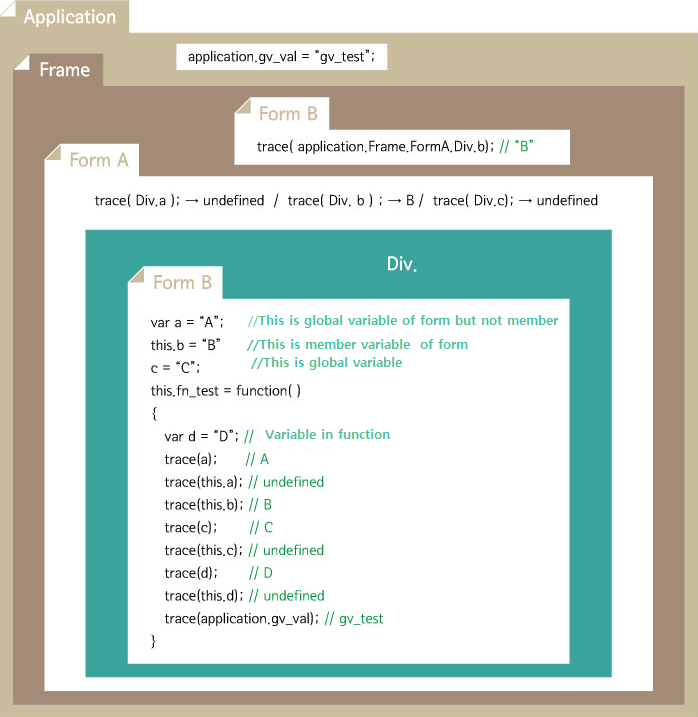

Variable Scope is a way to define available variable to access from current location. In case there is in Scope, It is possible to access variable and read/write. In case there is outside Scope, It is impossible to access variable. Variable is separated into two type.
Global Variable : This Variable is defined outside Function , so this can be accessed anywhere. Local Variable : This Variable is defined inside Function, so this can be accessed inside Function.
When function is defined like this.getName = function(){…} in form, In case variable is defined using var in function block, This variable has local scope which is can be referenced in this.getName function. This variable is avaliable when related funtion runs. Otherwise this variable is avaliable in running context. And When function is ended, this variable becomes a garbage collection. We use "this" keyword to all variables and functions in instance of related form in nexacro. so this makes less mistakes. You have to define context of related variables or functions using "this" keyword to be only referred to running form in nexacro. Global variable is used in all location in program. So this variable is always loaded in memory. Local variable is used in limited location, so this variable is extinguished after ending. JavaScript is functional language, Most local variables are used inside function. When function is finished the local variable is extinguished automatically. When Scope is not defined, global variable is stacked on memory. So this influence performance.
When Scope is not defined, Variant is handled as Global. So Scope should be defined when Variant is used.
nexacro uses the same configuration of Scope of HTML5, So In case there is Variant which is not defined Scope in ADL/FDL/XJS Script, the variant is treated as top member of Global.

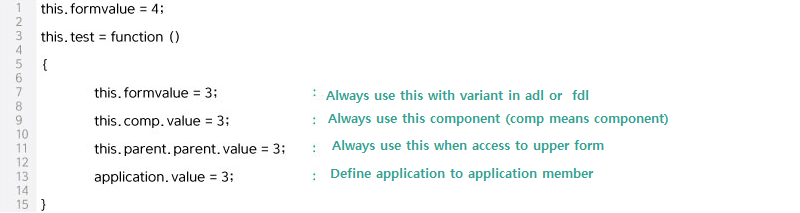

Scope must be defined. (this/this.parent/application) Property/Function/Variant etc should be used with this, parent or application

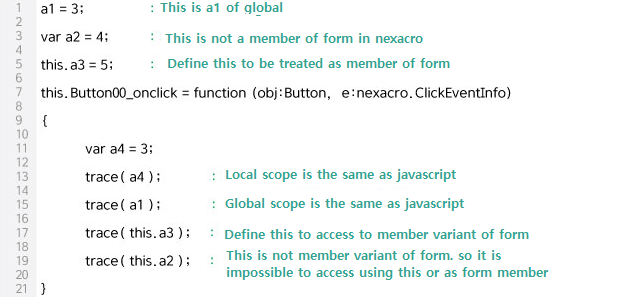

Example)
In case Scope and Var is not defined outside Function, this treated as member of global. We recommend not to use this. When Var is defined without Scope outside Function, This is handled as not a member of form. We recommend not to use this. (This is treated as variable of form script)

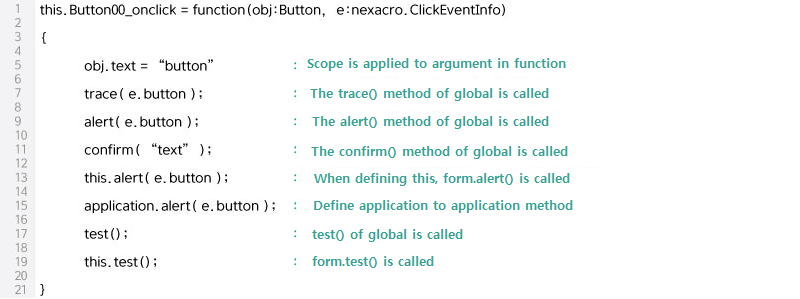

Please use Mothod with this,parent or application. (In case there is undefined method, Global member method will be run except method of Form.
Please Global Variant of FDL uses with this, parent or application. (If there is undefined Global Variant, this will be treated variant of script not member of Form.)

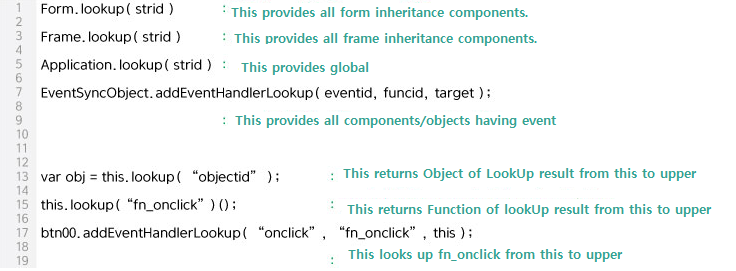

We provide LookUp method for difficult situation to define Scope, but this causes performance degradation. (Object LookUp, Method LookUp)

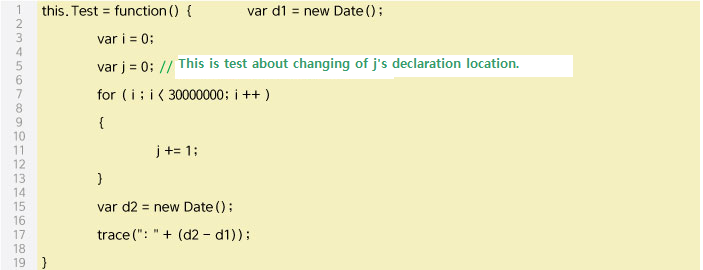

This is test result according to each variable scope how much performance is different.
Condition | local variable J increase | this.j increase | application.j increase |
---|---|---|---|
5회 평균치(ms) | 33.75 | 100.75 | 220 |
This result number is gained by abnormal and inordinate test (this result gotten by thirty million test). so this is difficult to apply to developing system equally.
eval
By using the eval function we can run the original script code dynamically.
var dataset = eval("this." + obj.binddataset);

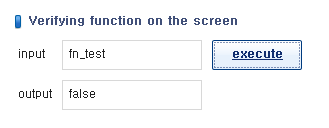

Can we run a script dynamically?
Breaking line Character(New Line Character) Processing
Handling new line characters using Script
Newline character can be expressed by using the \n.

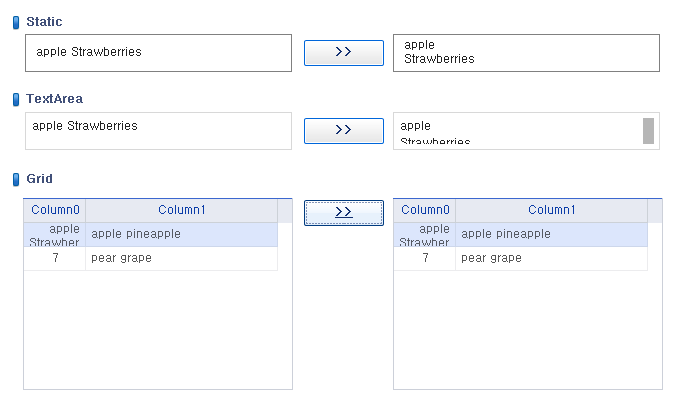

If you press the button >> You can see the results of the script execution.
this.Button00_onclick = function(obj:Button, e:nexacro.ClickEventInfo) { this.stNewLine.set_text('aple' + String.fromCharCode(10) + 'Strawberries'); } this.Button01_onclick = function(obj:Button, e:nexacro.ClickEventInfo) { this.taNewLine.set_value('aple' + String.fromCharCode(10) + 'Strawberries'); } this.Button02_onclick = function(obj:Button, e:nexacro.ClickEventInfo) { this.ds_data.setColumn(0,"Column0",'aple' + String.fromCharCode(10) + 'Strawberries'); }
String.fromCharCode (10): refers to the newline character.
I would like to know how to handle the newline character.
Source Location
Sample_Script\np_Script_Newline.xfdl
Number & Math
By using the script we can implement number conversion and operation related functions.

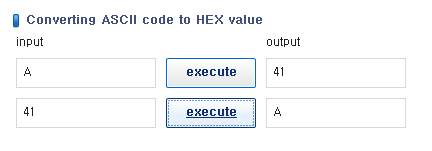

Changing ASCII code to HEX value
Using charCodeAt, fromCharCode methods we can convert ASCII Code to Hex code and Hex Code to ASCII code.
Reference Detail
charCodeAt
This method is used to return integer value corresponding Unicode Character at the specified index.
fromCharCode
This method returns the character string of Unicode value.
Main Source Content
this.fn_doAsciiHex = function(sValue, sType) { var sHex = "0123456789ABCDEF"; var sAscii = ' !"#$%&'+"'"+'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ['+'\\'+']^_`abcdefghijklmnopqrstuvwxyz{|}'; var sRtn = ""; if (sType == "A2H") { var sLet, nPos, h16, h1; for (var i = 0; i < sValue.length; i++) { sLet = sValue.charAt(i); nPos = sAscii.indexOf(sLet) + 32; h16 = Math.floor(nPos / 16); h1 = nPos % 16; sRtn += sHex.charAt(h16) + sHex.charAt(h1); } } if (sType == "H2A") { for (var i = 0; i < sValue.length; i++) { var sLet1 = sValue.charAt(2 * i); var sLet2 = sValue.charAt(2 * i + 1); var sVal = sHex.indexOf(sLet1) * 16 + sHex.indexOf(sLet2); sRtn += sAscii.charAt(sVal - 32); } } return sRtn; }
Ascill, HEX
Source Location
Sample\Sample_Script\np_Script_Number_AsciiToHex.xfdl

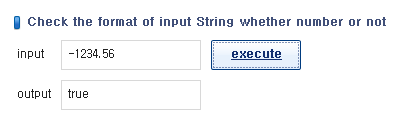

Numeric Number format check
Using the charAt method we can verify the number format of input string.
Reference Detail
charAt
This method returns the character corresponding to the specified index
Number format, charAt
Source Location
Sample\Sample_Script\np_Script_Number_CheckNumber.xfdl
Changing the RGB color code
Using parseInt method RGB color values can be converted to HEX Code and HEX Code can be converted into RGB values in script.
Reference Details
paseInt
This method returns integer value after convertion string to integer.
charAt
This method is used to return the character corresponding to the specified index.
Clicking on the execute button, the background color of the screen will be changed.
RGB, HEX
Source Location
Sample\Sample_Script\np_Script_Number_HexToRGB.xfdl
Converting Base of different types format
Using toString method we can write script to convert object into decimal, hexadecimal and binary numbers.
Reference Details
toString
It is Method to return a text string which indicates a object.
essence, toString
Source Location
Sample\Sample_Script\np_Script_Number_NumberFormat.xfdl

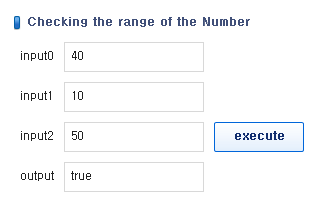

Checking the range of the Number
Using toNumber method we can verify if the input number in the specified range of numbers then return true otherwise return false.
It is verification for value of input0 exists within the range of input1 and input2.
Reference Details
toNumber
This method is used to convert input value to number.
Range check, toNumber
Source Location
Sample\Sample_Script\np_Script_Number_NumberRange.xfdl

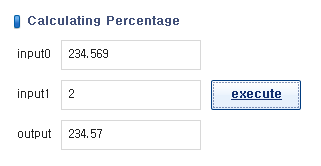

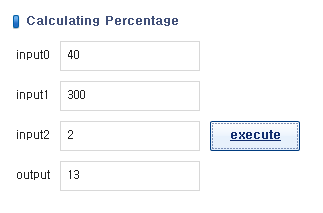

Calculating Percentage
Using Math object we can calculate percentage of input values.
Reference Detail
Math
Mathematical functions and related constants are defined in the object.
round
It is Method to return a closest integer or a fixed point real number by rounding a given formula.
Percentage, round
Source Location
Sample\Sample_Script\np_Script_Number_Percentage.xfdl
Processing numeric values to round
Reference Data
round
This method returns the rounded integer value.
round
Source Location
Sample\Sample_Script\np_Script_Number_Round.xfdl

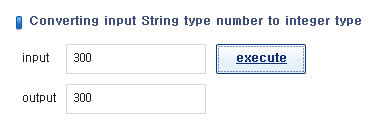

Converting input String type number to integer type
parseInt Method returns integer which is transformed from a text string.
parseInt, Integer
Source Location
Sample\Sample_Script\np_Script_Number_StringToInteger.xfdl
String
It is Method to operate a text string and designate a document form or determine a partial text string in a text string or designate a position.

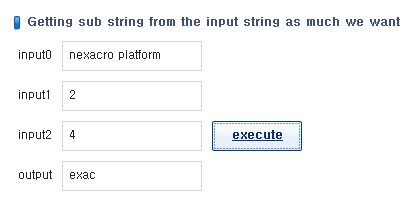

Getting sub string from the input string as much we want
substr method returns a partial text string which begins at designated position and has designated length.
Reference Details
substr
substr method returns a partial text string which begins at designated position and has designated length.
Mid, substr
Source Location
Sample\Sample_Script\np_Script_String_CharIndex.xfdl

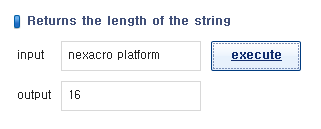

Returning the length of the String
Using length method we can get string length.
Main Source Content
function fn_charLength(sString) { var sString = sString.toString(); var nCnt = 0; for (var i = 0; i < sString.length; i++) { if (sString.charCodeAt(i) > 127) { nCnt += 2; } else { nCnt += 1; } } return nCnt; }
Korean character is 2 bytes. We can verify using Unicode to process Korean characters.
Reference Details
charCodeAt
It is Method to return an integer to indicate unicode encoding of a text in a designated position.
Source Location
Sample\Sample_Script\np_Script_String_CharLength.xfdl

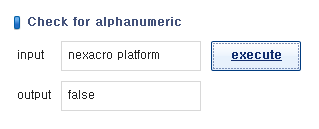

Checking characters and numbers
Using charCodeAt we can verify characters and numbers.
Reference Details
charCodeAt
It is Method to return an integer to indicate unicode encoding of a text in a designated position.
charCodeAt
Source Location
Sample\Sample_Script\np_Script_String_CheckAlpaNum.xfdl

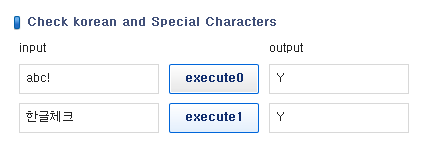

Checking Korean and special characters
Using charAt method we can check the Korean and special characters.
Reference Details
indexOf
indexOf method returns a text position from which a partial text string begins in string object. lastIndexOf method returns a case that a partial text string lastly appears in string object.
charCodeAt
It is Method to return an integer to indicate unicode encoding of a text in a designated position.
charAt
This method returns character at the specified index.
indexOf, charCodeAt
Source Location
Sample\Sample_Script\np_Script_String_CheckChar.xfdl

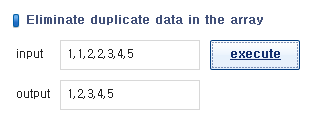

Eliminate duplicate data in the array
Using the split method we can implement script to eliminate duplicate values from the array.
Reference Details
split
It is Method to return arrangement of a text string which is generated when a text string is divided into many partial text strings.
Array, Duplication
Source Location
Sample\Sample_Script\np_Script_String_Distinct.xfdl

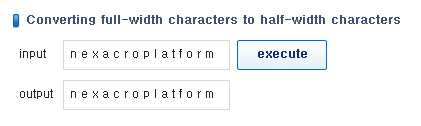

Converting full-width characters to half-width characters
Using charCodeAt method we can convert full-width characters to half width characters.
Main Source Content
function fn_fullToHalf(sFull) { …Skip for (var i = 0; i < sFull.length; i++) { sChar = sFull.charCodeAt(i); if (sChar == 12288) { sHalf += unescape("%20"); } else if ((sChar >= 65281) && (sChar <= 65374)) { sHalf += unescape("%" + (sChar-65248).toString(16)); } else { sHalf += sFull.charAt(i); } return sHalf; }
Reference Details
unescape
It is Method to decode String object which is encoded by escape method.
charCodeAt, unescape
Source Location
Sample\Sample_Script\np_Script_String_FullToHalf.xfdl
Half-width character to full-width character conversion
Using charCodeAt method, we can convert Half-width character to full-width character.
Reference Details
Main source content
function fn_halfToFull(sHalf) { …Skip for (var i = 0; i < sHalf.length; i++) { if ((sHalf.charCodeAt(i) >= 32) && (sHalf.charCodeAt(i) <= 126)) { … Skip { sChar = sHalf.charCodeAt(i) + 65248; } } … Skip sFull = sFull + String.fromCharCode(sChar); } return sFull; }
Reference Details
fromCharCode
It is Method to return a text string out of various unicode text values.
charCodeAt, unescape
Source Location
Sample\Sample_Script\np_Script_String_HalfToFull.xfdl

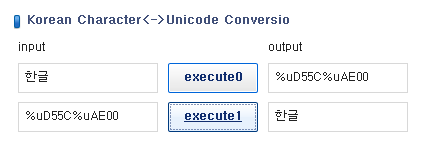

Creating Korean ↔ Unicode converter
Using JavaScript regular expressions we can create Korean to Unicode and Unicode to Korean converter.
Main Source Content
Reference Details
escape
This method is used to convert into Unicode.
unescape
It is Method to decode String object which is encoded by escape method.
Source Location
Sample_Script\np_Script_String_HanGulToUnicode.xfdl

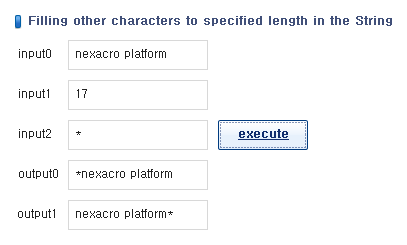

Filling other characters to specified length in the String
Using padLeft and padRight methods we can fill the specified characters to the specified length of String.
Main source content
this.fn_lpad = function(sString, nSize, sPadChar) { var sRtn = ""; if (sPadChar != null) { sRtn = sString.padLeft(nSize, sPadChar); } else if (sPadChar == null) { sRtn = sString.padLeft(nSize, " "); } return sRtn; } this.fn_rpad = function(sString, nSize, sPadChar) { var sRtn = ""; if (sPadChar != null) { sRtn = sString.padRight(nSize, sPadChar); } else if (sPadChar == null) { sRtn = sString.padRight(nSize, " "); } return sRtn; }
padLeft, padRight
Source Location
Sample\Sample_Script\np_Script_String_LpadRpad.xfdl

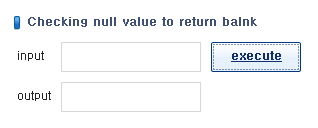

Checking null value to return balnk
If the input data is null or undefined we can return blank value using script.
Reference Details
isNaN
It is Method to indicate which value is NaN(not number) which is an appointed value.
null, undefined, NaN
Source Location
Sample\Sample_Script\np_Script_String_NullToEmpty.xfdl

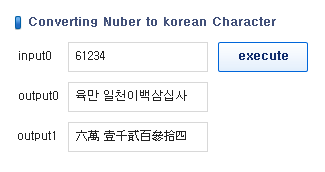

Converting Number to Korean Character
Using charAt method, we can convert integer to Korean or Chinese Character.
charAt
Source Location
Sample\Sample_Script\np_Script_String_NumberToString.xfdl

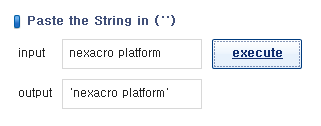

Inserting Hall Quotes(') in the String
Using substr method we can insert Hall Quotes(') in the String.
Single quotation
Source Location
Sample\Sample_Script\np_Script_String_Quote.xfdl

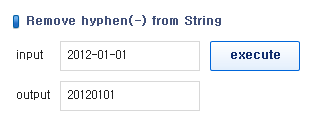

Remove hyphen(-) from String
Using replace method we can remove hyphon(-) from string.
hyphen, replace
Source Location
Sample\Sample_Script\np_Script_String_RemoveHyphen.xfdl
Creating array by separating string
Source Location
Sample\Sample_Script\np_Script_String_StringToAarray.xfdl

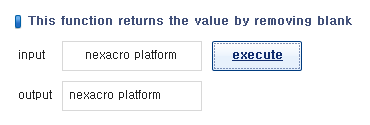

Returning value after removing blanks
substr method is used to cut the string as desired size, and returns it as an array.
Source Location
Sample\Sample_Script\np_Script_String_Trim.xfdl
Date
Using Script we can represent Date related processing.

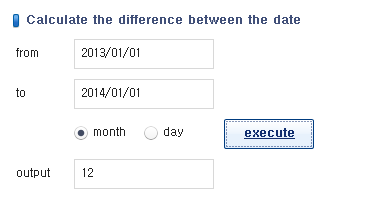

Calculating the difference between two dates
Can we calculate difference between two dates?
Date
Source Location
Sample\Sample_Script\np_Script_Date_CalculateDate.xfdl

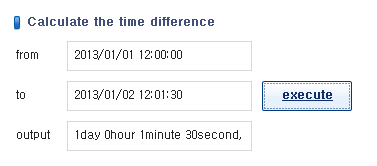

Calculating time difference
We can calculate time difference using Date object.
Main source content
this.fn_calculateDate = function(sDateS, sDateE, sGbn) { var nMonth = 0; // Calculated the number of months var nYear = 0; // Calculated the number of years var nRtn = 0; // The return value of the month if (sGbn == "M") { if (parseInt(sDateS) <= parseInt(sDateE)) { nYear = parseInt(sDateE.substr(0,4))- parseInt(sDateS.substr(0,4)) ; nMonth = parseInt(sDateE.substr(4,2))- parseInt(sDateS.substr(4,2)); nRtn = (12 * nYear) + nMonth; } } else { var dFrom = new Date(sDateE.substring(0,4), sDateE.substring(4,6)-1, sDateE.substring(6,8) ,sDateE.substring(8,10), sDateE.substring(10,12), sDateE.substring(12,14)); var dTo = new Date(sDateS.substring(0,4), sDateS.substring(4,6)-1, sDateS.substring(6,8) ,sDateS.substring(8,10), sDateS.substring(10,12), sDateS.substring(12,14)); nRtn = parseInt((dFrom - dTo)/(1000*60*60*24)); } return nRtn; }
Date, getTime
Source Location
Sample\Sample_Script\np_Script_Date_CalculateTime.xfdl

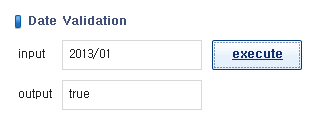

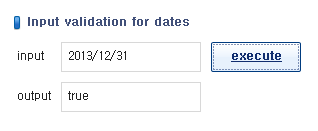

Validation check for input dates
Using toNumber method we can verify the date format.
Main Source Content
this.fn_checkDate = function(sDate) { var nYear = Number(sDate.toString().substr(0,4)); var nMonth = Number(sDate.toString().substr(4,2)); var nDate = Number(sDate.toString().substr(6,2)); if ( nMonth > 12 || nMonth < 1) { return false; } switch (nMonth) { case 1: case 3: case 5: case 7: case 8: case 10: case 12: if (nDate > 31 || nDate < 1) { return false; } break; case 4: case 6: case 9: case 11: if (nDate > 30 || nDate < 1) { return false; } break; case 2: if (((nYear % 4 == 0) && (nYear % 100 != 0)) || (nYear % 400 == 0)) { if (nDate > 29 || nDate < 1) { return false; } } else { if (nDate > 28 || nDate < 1) { return false; } } break; default: break; } return true; }
toNumber, leap year
Source Location
Sample\Sample_Script\np_Script_Date_CheckDate.xfdl

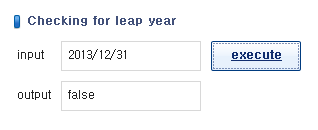

Checking for leap year
Using leap year calculation we can verify leap year if that year has 29 Feb.
Main Source Content
this.fn_checkLeapYear = function(sDate) { var bRtn = false; var nY = parseInt(sDate.substring(0,4)); if ((nY % 4) == 0) { if ((nY % 100) != 0 || (nY % 400) == 0) { bRtn = true; } } return bRtn; }
Leap year
Source Location
Sample\Sample_Script\np_Script_Date_CheckLeapYear.xfdl
Time validation check
Using Number method we can check validation for time.
Main Source Content
this.fn_checkTime = function(sTime) { var nHH = Number(sTime.toString().substr(0,2)); var nMM = Number(sTime.toString().substr(2,2)); var nSS = Number(sTime.toString().substr(4,2)); if (nHH > 24 || nHH < 0) { return false; } if (nMM > 59 || nMM < 0) { return false; } if (nSS > 59 || nSS < 0) { return false; } return true; }
Number
Source Location
Sample\Sample_Script\np_Script_Date_CheckTime.xfdl

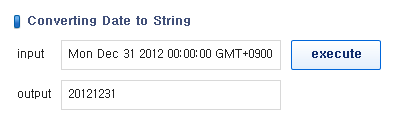

Converting Date to String
Using Date object we can convert Date into String.
Main Source Content
this.fn_dateToString = function(dDate) { var sRtn = (new Date(dDate)).getFullYear() + ((new Date(dDate)).getMonth()+1).toString().padLeft(2, "0") + ((new Date(dDate)).getDate()).toString().padLeft(2, "0"); return sRtn; }
Date
Source Location
Sample\Sample_Script\np_Script_Date_DateToString.xfdl
Year and month validation check
Using number method we can check validation for year and month.
Main source content
this.fn_checkYearMonth = function(sDate) { var nYear = Number(sDate.toString().substr(0,4)); var nMonth = Number(sDate.toString().substr(4,2)); if ( nMonth > 12 || nMonth < 1) { return false; } return true; }
Number
Source Location
Sample\Sample_Script\np_Script_Date_CheckYearMonth.xfdl
Today's date and current time searching
We can get current date and time using Date object.
Main source content
this.fn_dateTime = function() { var dDate = new Date(); var sRtn = dDate.getFullYear() + (dDate.getMonth()+1).toString().padLeft(2, "0") + dDate.getDate().toString().padLeft(2, "0") + dDate.getHours().toString().padLeft(2, "0") + dDate.getMinutes().toString().padLeft(2, "0") + dDate.getSeconds().toString().padLeft(2, "0"); return sRtn; }
Date
Source Location
Sample\Sample_Script\np_Script_Date_DateTime.xfdl

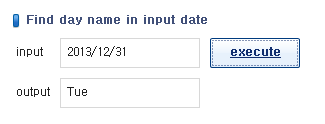

Finding day name from input date
Using Date object we can find day name from input date.
Main Source Content
this.fn_hanGulWeek = function(sDate) { var dDate = new Date(parseInt(sDate.substr(0,4)) , parseInt(sDate.substr(4,2))-1 , parseInt(sDate.substr(6,2))); var sDay = dDate.getDay(); var arrweek = new Array("Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"); var sRtn = arrweek[sDay]; return sRtn; }
Date
Source Location
Sample\Sample_Script\np_Script_Date_HanGulWeek.xfdl

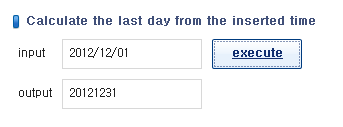

Finding last day of month from the input date
Using Date object we can find the last day of the month from input date.
Main source content
this.fn_lastDay = function(sDate) { var dDate = ""; sDate = sDate.trim(); if (sDate == null || sDate == "" || sDate == "undefined") { // Taking date after one month from today and calculating today's date dDate = (new Date()).addMonth(1); dDate = (new Date(dDate)).addDate((new Date(dDate)).getDate()*-1); } else { // picking next month's first day from the input date dDate = new Date(parseInt(sDate.substr(0,4)), parseInt(sDate.substr(4,2)), 1); dDate = dDate.addDate(-1); } var sRtn = (new Date(dDate)).getFullYear() + ((new Date(dDate)).getMonth()+1).toString().padLeft(2, "0") + ((new Date(dDate)).getDate()).toString().padLeft(2, "0"); return sRtn; }
Date
Source Location
Sample\Sample_Script\np_Script_Date_LastDay.xfdl

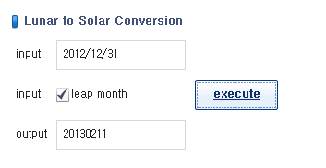

Lunar to Solar Conversion
We are changing input Lunar year to solar year.
parseInt
Source Location
Sample\Sample_Script\np_Script_Date_LunarToSolar.xfdl

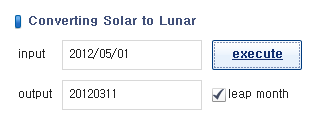

Converting Solar to Lunar
Here is a conversion from input Solar year to Lunar year.
parseInt
Source Location
Sample\Sample_Script\np_Script_Date_SolarToLunar.xfdl

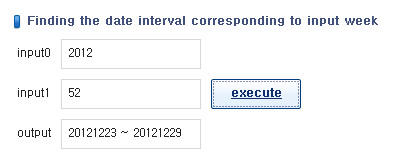

Finding the date range corresponding to input week
Using date object we can calculate the date range corresponding to input week.
Main Source Content
/* * File Name : Script_Date_WeekOfYear * Description : Finding the date interval corresponding to input week */ /* Button Click */ this.btn_execute_onclick = function(obj:Button, e:nexacro.ClickEventInfo) { var sRtn = this.fn_weekOfYear(this.edt_input0.value, this.edt_input1.value); this.edt_output.set_value(sRtn); } /* * Function Name : fn_weekOfYear * Description : Finding the date interval corresponding to input week * Parameter : Year, Week * Return : Applying(from ~ to) * Example : fn_weekOfYear(2012, 52); */ this.fn_weekOfYear = function(sYYYY, sWeek) { var dDate = new Date(parseInt(sYYYY), 0, 1); var nDay = dDate.getDay(); //0 = Sunday ~ 6 = Saturday if (nDay != 0) { dDate = new Date(dDate.addDate(-nDay)); } var nWeekS = dDate.addDate(7 * (sWeek-1)); var nWeekE = dDate.addDate(6); var sRtn = (new Date(nWeekS)).getFullYear() + ((new Date(nWeekS)).getMonth()+1).toString().padLeft(2, "0") + ((new Date(nWeekS)).getDate()).toString().padLeft(2, "0") + " ~ " + (new Date(nWeekE)).getFullYear() + ((new Date(nWeekE)).getMonth()+1).toString().padLeft(2, "0") + ((new Date(nWeekE)).getDate()).toString().padLeft(2, "0"); return sRtn; }
Date
Source Location
Sample\Sample_Script\np_Script_Date_WeekOfYear.xfdl
System
Verifying the function on the screen
Using typeof function we can verify the existence of particular function.
Main Source Content
/* * File Name : Script_System_ExistFunction * Discription : Verifying the function on the screen */ this.btn_execute_onclick = function(obj:Button, e:nexacro.ClickEventInfo) { var sRtn = this.fn_existFunction(this.edt_input.value); this.edt_output.set_value(sRtn); } /* * Function Name : fn_checkTelNo * Discription : Verifying the function on the screen * Parameter : Function * Return : true, false * Example : fn_existFunction("fn_test"); */ this.fn_existFunction = function(sValue) { //Check the function if input value is undefined if (this[sValue] == undefined) { return false; } else { // "fn_test" Checking the type of function this.alert("function checking is "+typeof(this[sValue])); if (typeof(this[sValue]) == "function") { return true; } else { return false; } } } /* * Function Name : fn_test * Discription : Checking function if it exists on screen or not */ this.fn_test1 = function() { }
typeOf, function
Source Location
Sample\Sample_Script\np_Script_System_ExistFunction.xfdl

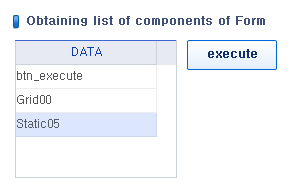

Obtaining list of components of Form
We can obtain list of components on screen using form's property and arrays.
Reference Detail
components
This property is used to access list of components from the form.
Main source content
this.fn_getFormComponentList = function() { var arrCompList = this.components; for(var i=0; i<arrCompList.length;i++) { this.ds_data.addRow(); this.ds_data.setColumn(i, "DATA" ,arrCompList[i].name); } }
Components, component list
Source Location
Sample\Sample_Script\np_Script_System_FormComponentList.xfdl
Verifying value of current screen ID
Using formurl property, we can obtain current screen filename.
Main source content
/* * File Name : Script_System_FormID * Description : Finding current screen file name */ /* Button Click */ this.btn_execute_onclick = function(obj:Button, e:nexacro.ClickEventInfo) { var sRtn = this.fn_formID(); this.edt_output.set_value(sRtn); } /* * Function Name : fn_formID * Description : Finding current screen file name * Parameter : * Return : Form ID * Example : fn_formID(); */ this.fn_formID = function() { var sUrl = this.getOwnerFrame().formurl; var nStart = 0; var nIndex = sUrl.indexOf("::"); if ( nIndex > - 1) { nStart = nIndex + 2; } var nEnd = sUrl.indexOf(".xfdl"); var sFromId = sUrl.substring(nStart, nEnd); //In case if you have sub folder if (sFromId.indexOf("\\") > -1) { var arPath = sFromId.split("\\"); sFromId = arPath[arPath.length - 1]; } return sFromId; }
formurl, getOwnerFrame
Source Location
Sample\Sample_Script\np_Script_System_FormID.xfdl
User Function
Rather than using particular API we are providing samples using script.
User Function may be different according to customer, so we request to use after verification.

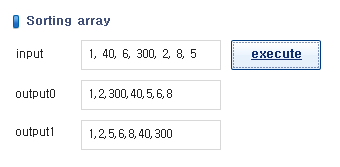

Sorting Array
Using sort method we can sort the array.
Sort
Source Location
Sample\Sample_Script\np_Script_User_ArraySort.xfdl

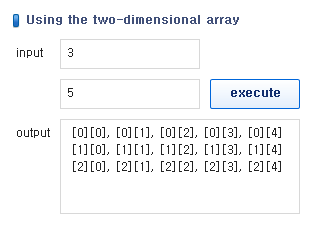

Using the two-dimensional array
Source Location
Sample\Sample_Script\np_Script_User_TwoDemensionArray.xfdl

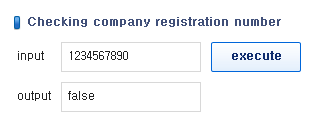

Checking company registration number
Source Location
Sample\Sample_Script\np_Script_User_CheckBRN.xfdl

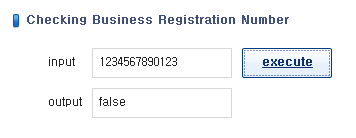

Checking Business Registration Number
Source Location
Sample\Sample_Script\np_Script_User_CheckCRN.xfdl

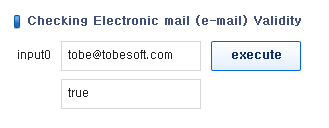

Checking Electronic mail (e-mail) Validity
Source Location
Sample\Sample_Script\np_Script_User_CheckEmail.xfdl
Checking Null in the input values
Source Location
Sample\Sample_Script\Script_User_CheckNull.xfdl

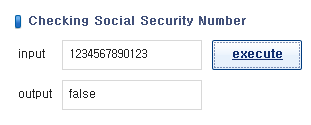

Checking Social Security Number
Source Location
Sample\Sample_Script\np_Script_User_CheckSSN.xfdl

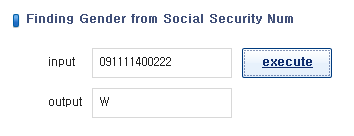

Finding Gender from Social Security Number
Source Location
Sample\Script\np_Script_User_SSNToGender.xfdl
Implementing the decode function
Source Location
Sample\Sample_Script\np_Script_User_Decode.xfdl
Implementation of the ternary operator
Source Location
Sample\Sample_Script\np_Script_User_Iif.xfdl

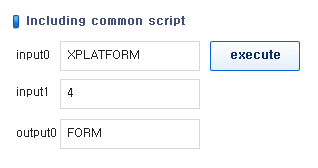

Including common script
Source Location
Sample\Sample_Script\np_Script_User_IncludeScript.xfdl
Converting undefined to ""
Source Location
Sample\Sample_Script\np_Script_User_UndefineToNull.xfdl

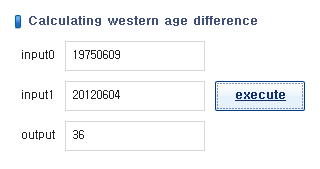

Calculating age.
Source Location
Sample\Sample_Script\np_Script_User_WestenAge.xfdl
