Nexacro Studio is an application development tool included with the Nexacro Platform. It supports both HTML5 and Runtime versions by providing interfaces and features similar to 4GL development tools (for example, Visual Basic, Delphi, PowerBuilder). Nexacro Studio supports WYSIWYG (What You See Is What You Get) screen/form design, data visualization, and logic composition with scripts.
Instead of developing separate applications optimized for different kinds of devices, Nexacro Studio's Multi-Layout Manager (MLM) enables high performance from one source, which can be applied to various devices including PCs, smartphones, and tablets.
System Requirements
The following table lists the system requirements for Nexacro Studio.
Item | Minimum Requirements | Recommended Requirements |
|---|---|---|
CPU | Intel® Pentium® 4 1.4GHz | Intel® Core™ i3-330M, 2.13GHz |
Display | - | Graphic Device over and above 512MB with Accelerator |
Memory | 1GB | 4GB DDR3 |
HDD | 8GB | 30GB - 5400rpm |
Platform | Windows XP SP3 or later Windows 10 V1703 (10.0.15063.413) or earlier | |
Installing Nexacro Studio

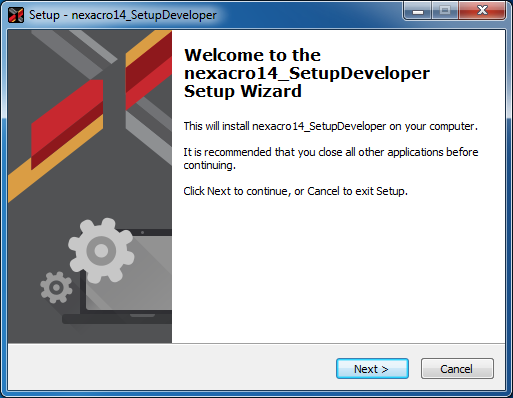

Nexacro Studio is included in the Nexacro Platform install package. Run the Setup file to start the installation process. When prompted, click Next.
If the Security Warning Window is displayed (Window Vista and above), click Yes.
UX-Studio 설치 준비과정

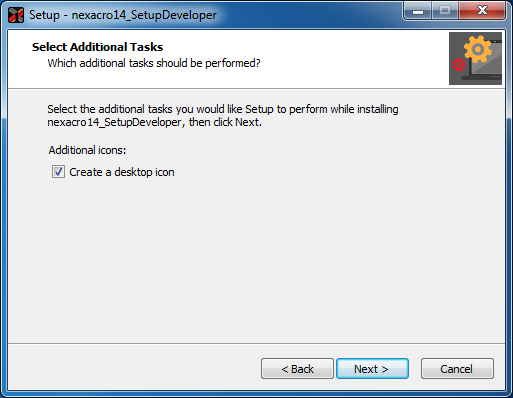

To create a shortcut icon on the background, select the checkbox.
프로그램 설치 시작

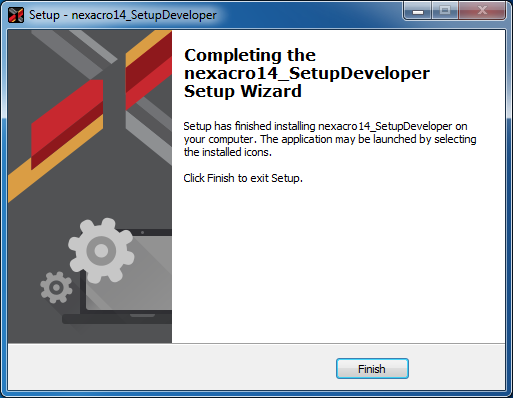

Once Setup has been completed, click the Finish button to complete program installation.
프로그램 설치 완료
Additional Installation Information
The installation package includes the following shortcut tool icons, which are accessible from the path Start > Program > nexacro > 14].
Icon | Menu | Description |
|---|---|---|
Help | Nexacro Platform Help Icon | |
Uninstall | Uninstall Shortcut Icon | |
nexacrostudio14 | Nexacro Studio Shortcut Icon |

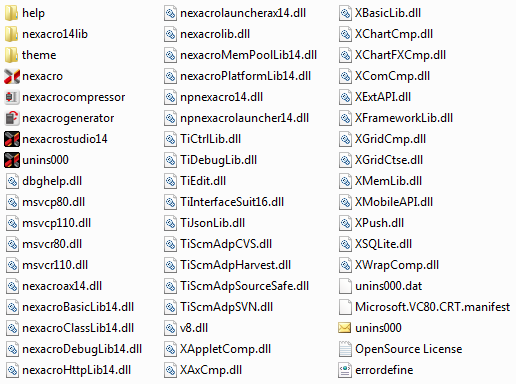

The list of installed files may vary depending upon product version.
License Authentication
The licences for Nexacro Studio are divided into two types: trial license an paid license. Trial licenses are given to users to allow them to try out the products for certain periods while paid ones are issued after customers' payment.
Trial License
You can obtain a trial license by clicking the below link and making an application. Otherwise, you should contact our sales department.
Nexaweb Japan: https://www.nexaweb.co.jp/dl_evaluation

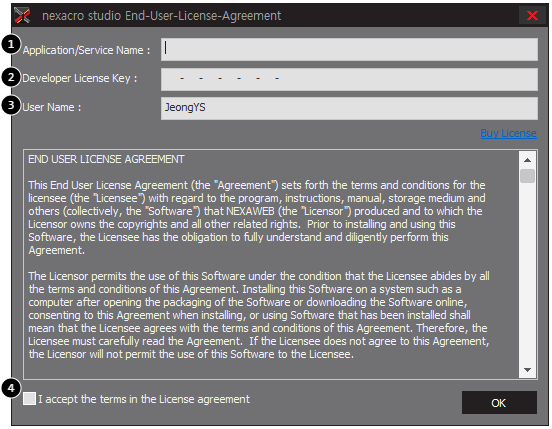

When you execute Nexacro Studio for the first time after installation, you can see the below window for entering a license. You can proceed by entering information about your given license.
Item | Description | |
|---|---|---|
1 | Application./Service Name | Email address that you enter when you write an application |
2 | Developer License Key | Trial license key granted to you |
3 | User Name | User name |
4 | EULA Agreement | Accept end-user license agreement |
If the authentication succeeds, you can see the below pop-up, which notifies you of the information about your license including an expire date. The expire data is displayed every time you execute Nexacro Studio.
The policy for issuing, authenticating and managing may differ according to countries. Please, see the below table.
Japan | Korea | Other countries | |
|---|---|---|---|
Trial period | 60 days | 60 days | 30 days |
Number of times to re-obtain a trial license | No more license | One more license | One more license |
In case you re-obtain a trial license, access the menu [Help > About nexacro studio] and click the Enter New License button to enter the license key granted to you.
Paid License
The methods of issuing a paid license are different in Japan and in other countries.
Japan
If you are in Japan, you need to contact the sales department at Nexaweb Japan first to obtain a paid license. Afterward, access the menu [Help > About nexacro studio] and click the Enter New License button to enter the license key and related information.
If the authentication succeeds, you can see the below pop-up, which notifies you of the information about your license including an expire date. The information on display may differs according to the types of products you purchase.
License Authentication Failure Messages
The below are a list of messages that appear in the event of license authentication failure.
When entering a license key incorrectly |
|---|
When entering an inactive license key |
|---|

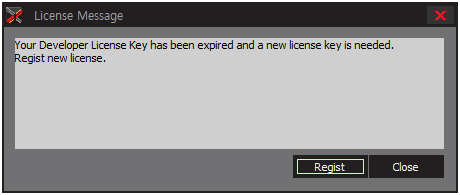

When a license expires |
|---|

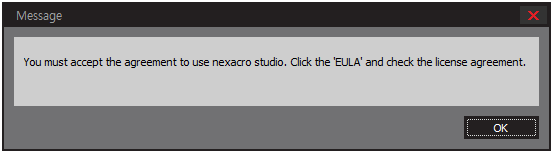

When an EULA is not accepted |
|---|
When validity check is impossible because the information on an entered license key does not exist in the server |
|---|
When the number of users permitted for the relevant license exceeds the limit |
|---|
When validity check is impossible because the server is disconnected due to a certain reason such as a network problem |
|---|
Version Check
To check the version of Nexacro Studio, click the menu [Help > About nexacro studio]. The license information appears encrypted.
Uninstalling Nexacro Studio

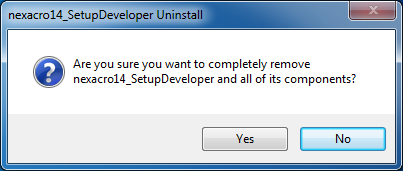

To uninstall the Nexacro Platform Package and Nexacro Studio, access Start > Program > nexacro > 14, and run UnInstall. At the confirmation prompt, click Yes to complete the uninstall process.
Confirm UnInstall
Using Help
To access the online help, press F1 or select the menu option Help – Help.
The following table lists sample help categories.
Item | Description |
|---|---|
Application Objects Reference | Help related to the Application |
Frame Objects Reference | Help related to the Frame Object |
Script Reference | Help related to scripts |
Objects Reference | Help related to objects |
Components Reference | Help related to Component |
Plugins Reference | Help related to PlugIns |
Appendix | Additional Help content |

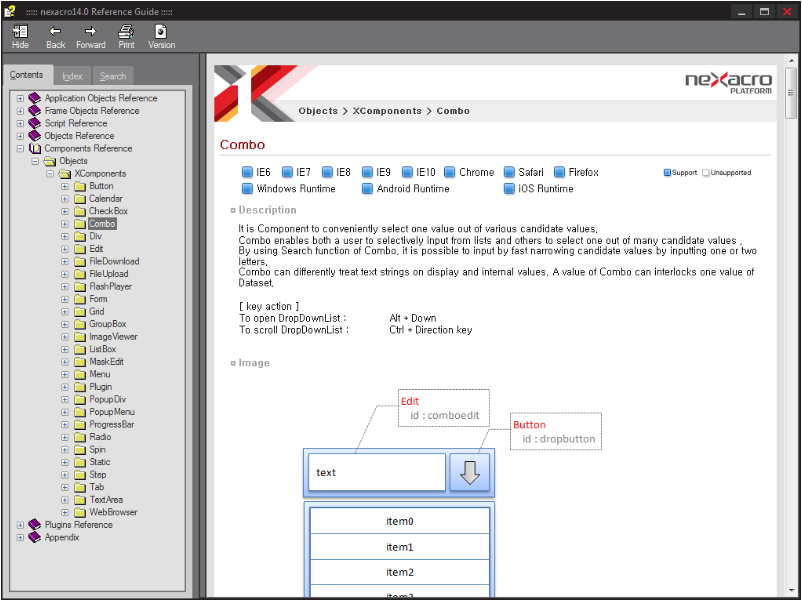

The following figure illustrates sample Help content.
Refer to below URL for additional detailed contents
http://docs.tobesoft.com/nexacro_studio_guide_nexacro_14_en
