This content is explaining the way of using Nexacro platform while developing or having normal programming. This is the Implementation techniques that can be used on screen for the pattern.
The detail may be differing to each developer, for details please use reference.
Detail
Detail type shows the basic content on the top of the screen. In many cases more contents shows in bottom of the page.
pattern_0
Source Location
pattern\Pattern_01.xfdl

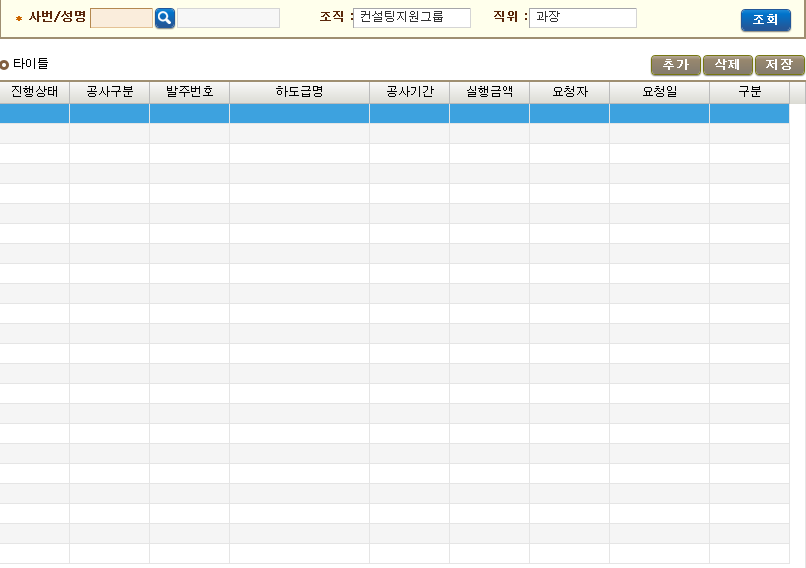

MultiDetail
By using Multi/Detail grid we can represent various data information, all columns in the Grid will be represented in one line
pattern_1
In case of many columns horizontal scroll will be appeared.
Source Location
pattern\Pattern_02.xfdl

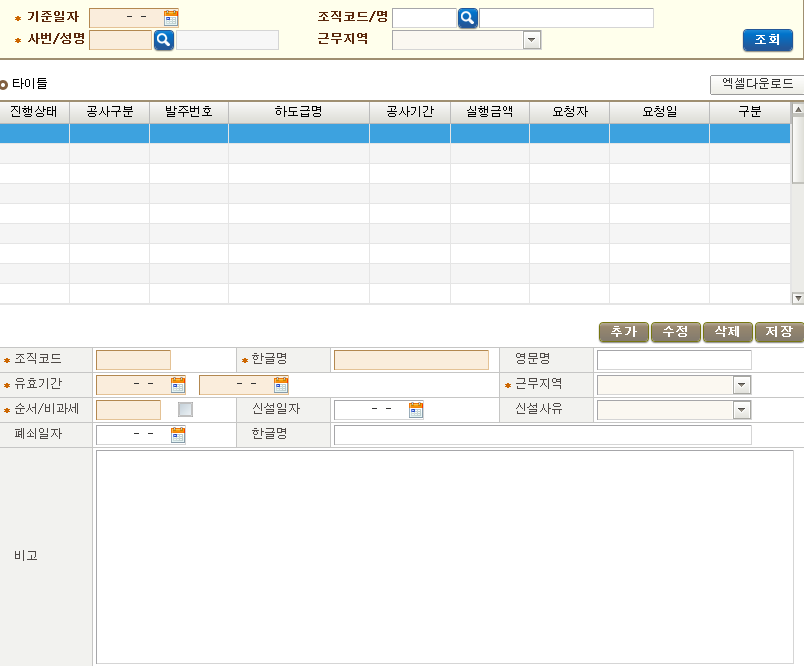

List/Detail
In the List/Detail form represents the various data and in the lower part represents the detail of the selected row from the top part
pattern_2
Source Location
pattern\Pattern_03.xfdl

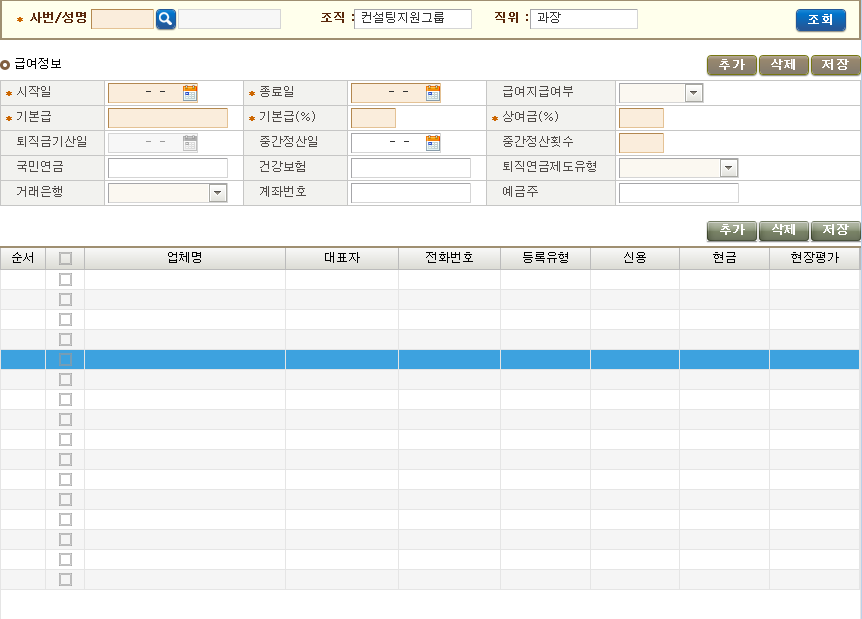

Master/Detail(1:n)
In the Master/Detail(1:n) relationship on the top we represent the single data in one, the lower part represents the more detail information of various data of the selected record on top.
pattern_4
Source Location
pattern\Pattern_04.xfdl

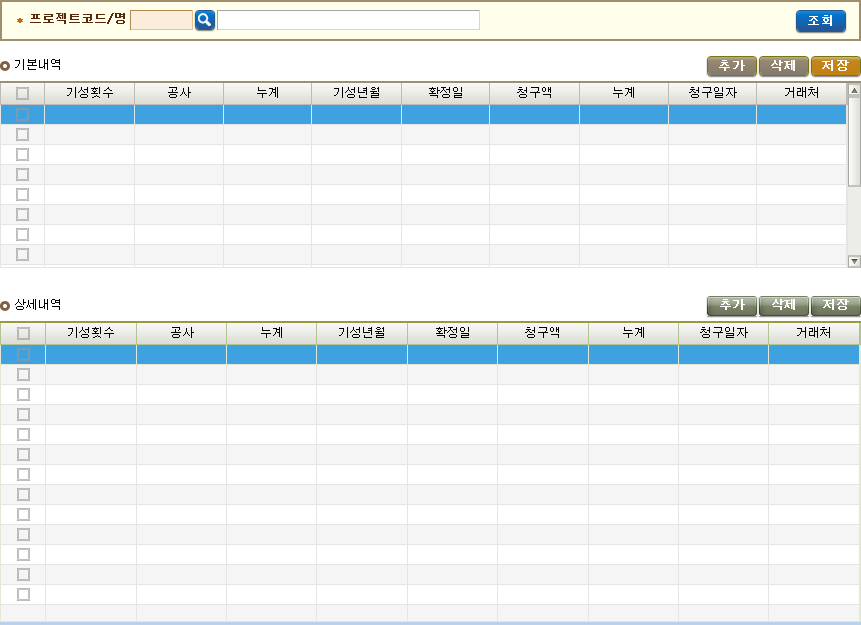

Master/Detail(n:n)
In the Master/Detail(n:n) relationship the top part represents various data and the lower part represents the various details of the selected part on the top part.
pattern_5
Source Location
pattern\Pattern_05.xfdl

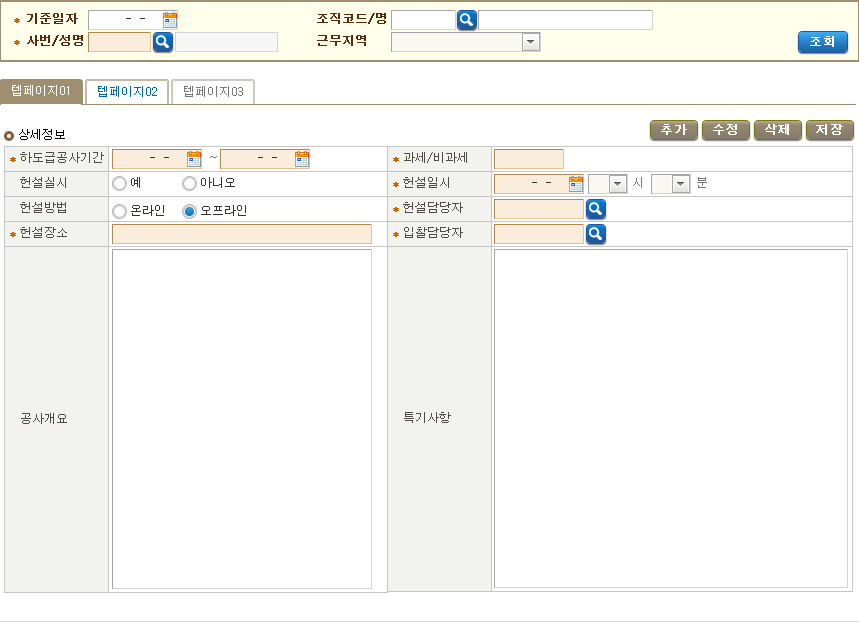

TabPage
If we want to use many content by Filter we can express it by using TabPage.
pattern_6
Source Location
pattern\Pattern_06.xfdl

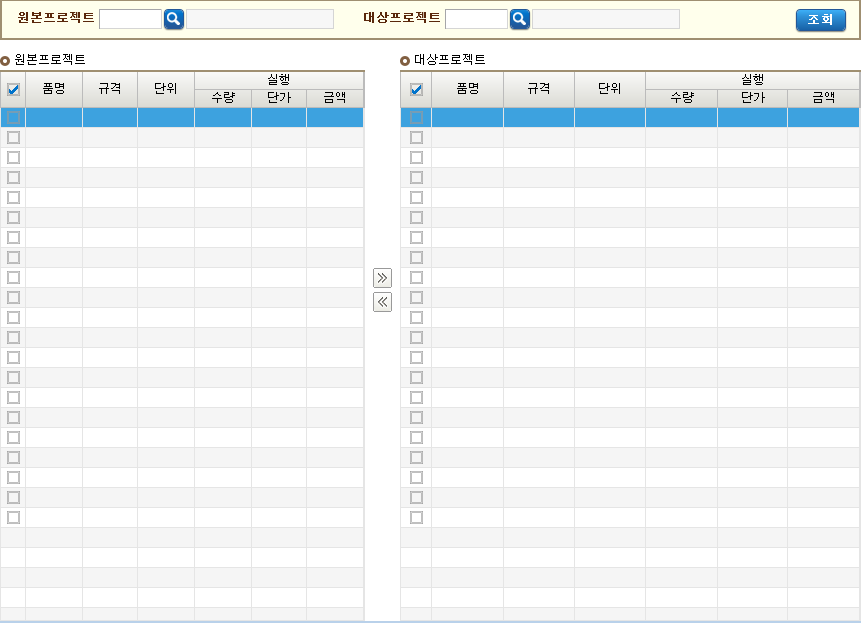

Shuttle
We can compare the information of two grids. We can move the data between two screens.
pattern_7
Source Location
pattern\Pattern_07.xfdl
