Spin Basic

Spin component is used to insert numerical values within certain limit

DataSet Binding

Spin can be represted by DataSet binding

min, max, increment attributes

min: The minimum value that is represented spin component
max: The maximum value that is represented spin component
increment: The increment value when we click on Spin

Linking Event

By using onspin event on Spin, we can change row position of dataset.

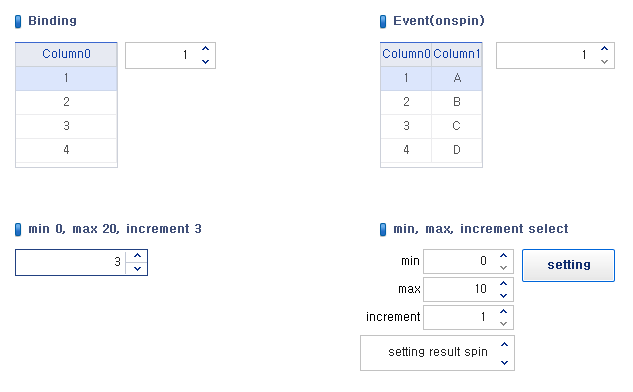

• As the above example when we change spin component it's value is changed, also it change the row position on DataSet.

this.Spin02_onspin = function(obj:Spin, e:nexacro.SpinEventInfo)
{
 this.ds_data1.set_rowposition(e.postvalue);
}

Spin value verification

• We can verify the values setting by spin

this.Button00_onclick = function (obj:Button, e:ClickEventInfo)
{
 var row = this.Spin03.value;
 var high = this.Spin04.value;
 var add = this.Spin05.value;

 if (row >= high)
 {
  this.alert("Maximum value must be greater than minimum value.");
  this.Spin04.set_value(0);
  this.Spin04.setFocus();
 }
 else if (add > high - row)
 {
  this.alert("Increament value is too high");
  this.Spin05.set_value(0);
  this.Spin05.setFocus();
 }
 else
 {
  this.Static00.set_text(("min :" + row + ", max :" + high + ", increment :" + add));
  this.Spin06.set_min(row);
  this.Spin06.set_max(high);
  this.Spin06.set_increment(add);
  this.Spin06.set_value(row);
 }
}
this.Spin05_onspin = function (obj:Spin, e:SpinEventInfo)
{
 if (e.postvalue >= 10)
 {
  this.alert("Maximum increament can be up to 10");
 }
}


this.Static08_onclick = function(obj:Static,  e:nexacro.ClickEventInfo)
{

}
this.Spin02_onspin = function(obj:Spin, e:nexacro.SpinEventInfo)
{
 this.ds_data1.set_rowposition(e.postvalue);
}

Source Location

Sample\Spin\np_Spin_Basic.xfdl
