ListBox Basic

ListBox component is used to select one or multiple values existing values

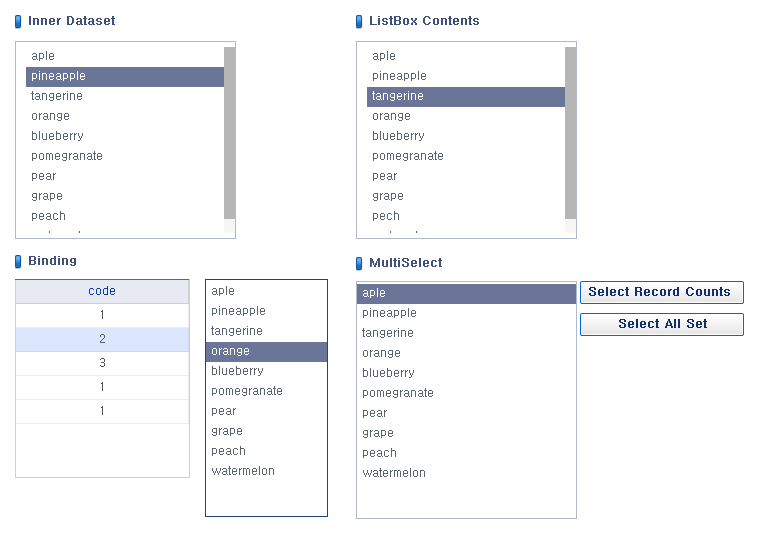

ListBox_Basic_0

InnerDataSet Binding

ListBox is basically used to present data by using the InnerDataSet.

Way of using ListBox Contents

Go to properties window and you can see innerdataset, There are two buttons one choosing dataset and one more "…" button to open component editor.

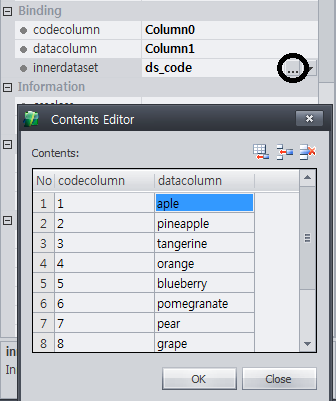

By clicking on "…" button the following window will appear.

ListBox_Contents_0

DataSet binding

ListBox is basically used to represent data binding with DataSet.

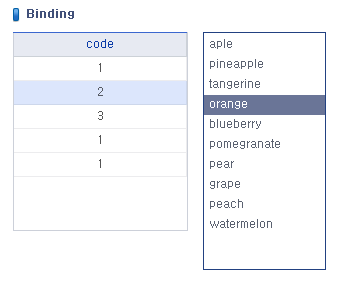

ListBox_Contents_1

If want to use characteristics data in ListBox we should have to bind InnerDataSet with DataSet, we take care there should be data in dataset first.

MultiSelect

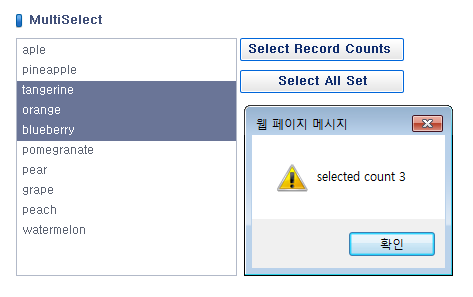

ListBox_Contents_2

You can check the selected value of the ListBox, you can Select all.

We can choose multiple rows in ListBox. There are two ways, first pressing control key then selecting value by mouse and second is pressing shift key then selecting value by mouse.

Getting selected value

this.Button00_onclick = function (obj:Button, e:ClickEventInfo)
{
 var i;
 var select_Cnt = 0;
 var msg = "Selected Record \n";
 select_Cnt = this.ListBox02.getSelectedCount();
 for (i = 0; i < select_Cnt; i++)
 {
  if (this.ListBox02.getSelect(i) == true)
  {
   msg += "Row : " + i + "\n";
  }
 }
 msg += "Selected Record Count : " + select_Cnt;
 this.alert(msg);
}

Select All values in ListBox

this.Button01_onclick = function (obj:Button, e:ClickEventInfo)
{
 for(i=0;i<this.ds_code.getRowCount();i++)
 {
  this.ListBox02.setSelect(i, true);
 }
}

Source Location

Sample\ListBox\np_ListBox_Basic.xfdl
