CheckBox

Checkbox Basic

CheckBox in a small rectangular box whose state is changed based on selected / unselected state represented by a check mark inside the Button kind of Component.

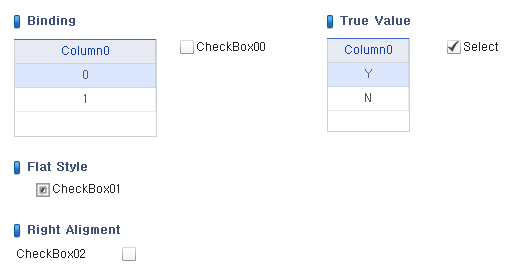

checkBox_basic_01

DatSet binding

CheckBox can be easily bound to DataSet.

Button Align of CheckBox

Text and Button(checkbox) properties of Checkbox can be changed by "buttonalign" property.

Is it possible to change CheckBox Text position of CheckBox?

Style(Flat)

We can set CheckBox border style.

true,false value

We can set two values for true and false, false default value when CheckBox is unchecked.
However we can set true and false value for CheckBox.

CheckBox has default value true and false.
CheckBox's true, false value can be changed by the property value 1 and 0.
When you use check box in grid, grid use 0 and 1 value so we recommend you to use 0 and 1 in checkbox.

Source Location

Sample\CheckBox\CheckBox_Basic.xfdl

Radio

Radio Basic

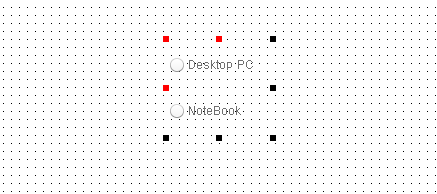

Radio component is round shape which have several options but one is selectable. It is button kind component.

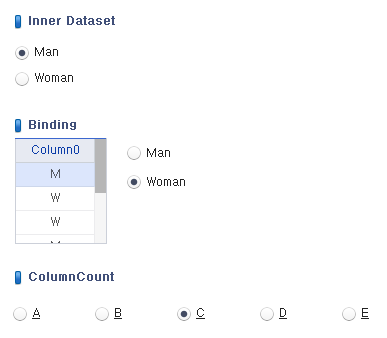

Radio_Basic_0

Inner DataSet

Radio can be linked to DataSet for data representation.

DataSet binding

Radio can be represented by DataSet binding.

ColumnCount

We can set Column Count to show Radio component in divided columns

Source Location

Sample\Radio\np_Radio_Basic.xfdl

Radio Contents Editor

Way of using radio contents

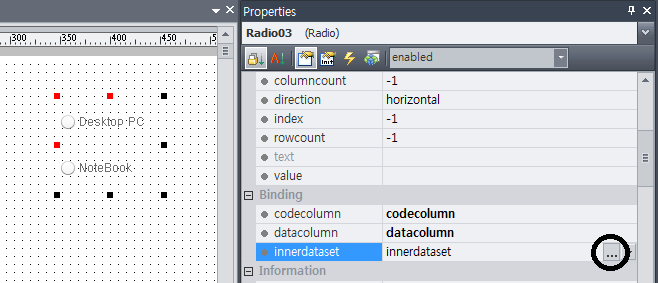

Click on Radio Properties window, you see part of the “…” button near data set innerdataset combo button.

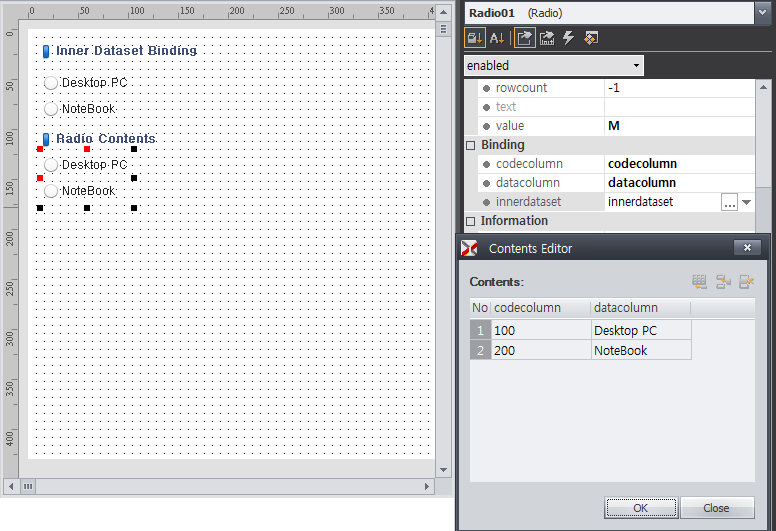

On clicking this button a Contents Editor window is open.

Radio_Basic_2

We can add number of rows in Contents Editor, as much we wants radio button.
Assign codecolumn and datacolumn values
Clicking on OK button these values will be displayed in the radio button values.

radio_contents_result

Is it possible to create radio button without binding with inner dataset?

Source Location

Sample\Radio\np_Radio_Contents_Editor.xfdl

Radio InnerDataSet operating approach

We can set Radio Component code and data columns by inner dataset properties. Users can insert/modify/delete datacolumn and codecolumn in Radio Components by programming.

Radio_Innerdataset_Approach_0

Below is the approach by programming to add
code and data columns in the Radio Content through inner datasets.

this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
    this.Radio00.innerdataset.insertRow(0);
    this.Radio00.innerdataset.setColumn(0,"codecolumn",'code value);
    this.Radio00.innerdataset.setColumn(0,"datacolumn","data value");

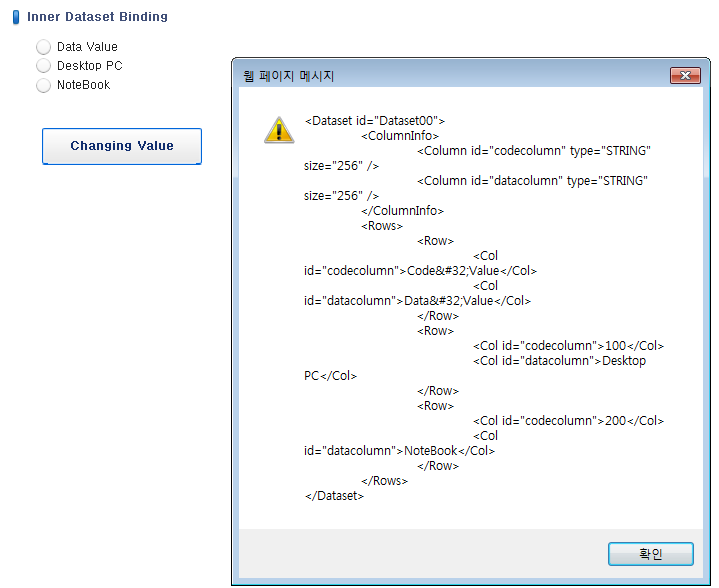

    this.alert(this.Radio00.innerdataset.saveXML());  //confirm
}

Is it possible by scripting language to modify the inner datasets which is binding with radio components?

Source Location

Sample\Radio\np_Radio_Innerdataset_Approach.xfdl
