Excel Import/Export

In nexacro platform, we can implement Excel Import/Export using nexacro-xeni.war module provided by TOBESoft.

Preparation

1) Download nexacro-xeni.war file from Technical Support homepage.
   Example) nexacro-xeni.war (File name to be downloaded consists of file name and built date.)
               (nexacro-xeni.war_2014.04.22.zip)

2) Unzip the zip file of 1)

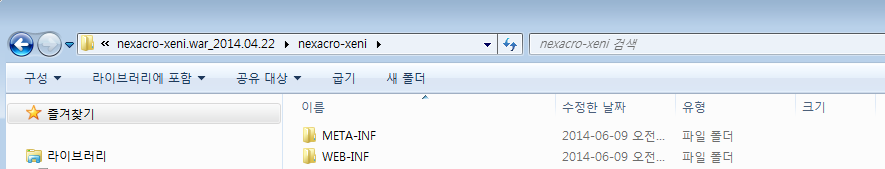

3) Unzip the nexacro-xeni.war.

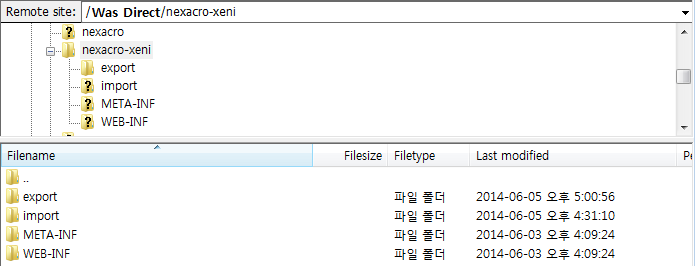

4) Copy the unzipped nexacro-xeni folder to WAS path.

5) Copy Server License of nexacro x-api into lib folder.
    (This License is provided when you purchase)

6) Restart the WAS.

6) Checking whether it is installed normally or not

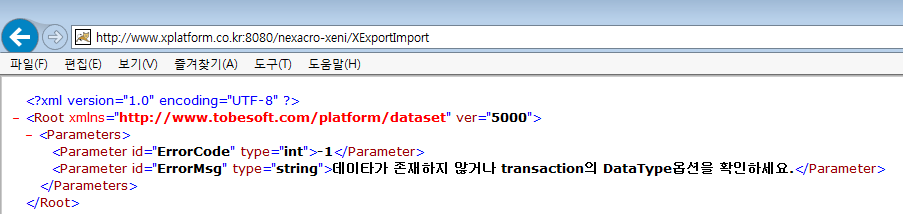

You can verify whether the module is installed normally or not  via Web brosewer XML screen as below.

Checkpoint, when you have a error in accessing nexacro-xeni folder.

After option setting is completed, If you can not access the nexacro-xeni folder, you need to set the path to be accessed in WAS.

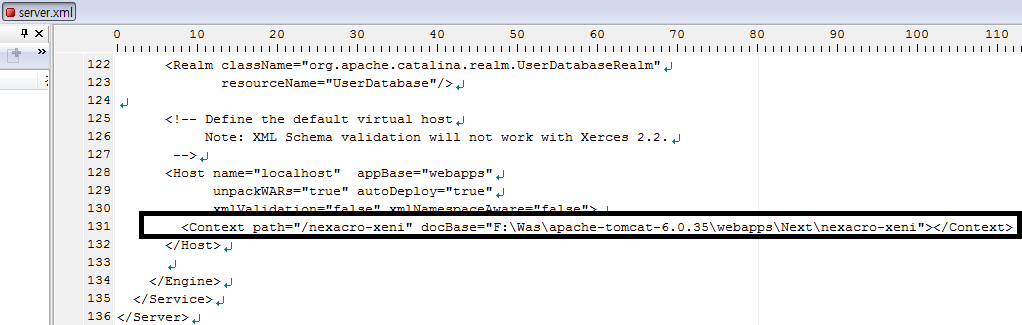

Example) In case of Tomcat,  set the Context path in server.xml.

Export

This describes the way to Export the grid contents to Excel.

Basic

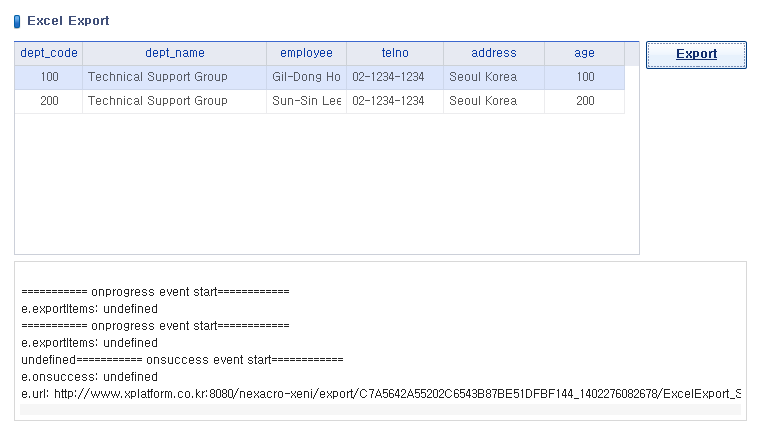

By clicking Export button, the contents in grid will be exported to excel.

If window like above image is opened, you can select button among 'open', 'save' and 'as save' button.

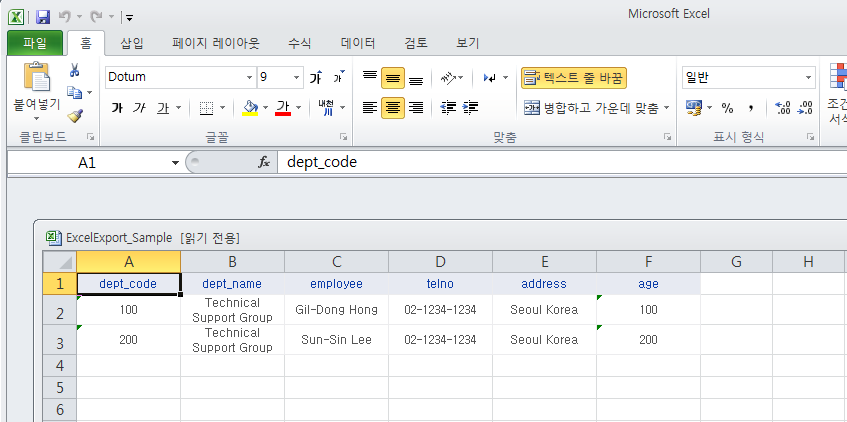

We can verify the contents expressed in grid on excel.

Event

We can verify the processing result of excel using event.

Main Source Content

this.url = "http://  WAS Path  /nexacro-xeni/XExportImport";
this.Button00_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
  this.ExcelExportObject00 = new ExcelExportObject();
  this.ExcelExportObject00.addEventHandler("onprogress",
  this.ExcelExportObject00_onprogress, this);
  this.ExcelExportObject00.addEventHandler("onsuccess",
  this.ExcelExportObject00_onsuccess, this);
  this.ExcelExportObject00.addEventHandler("onerror",
  this.ExcelExportObject00_onerror, this);

 var ret = this.ExcelExportObject00.addExportItem(nexacro.ExportItemTypes.GRID, this.gd_excel, "Sheet1!A1");
  this.ExcelExportObject00.set_exportmessageprocess("%d [ %d / %d ]");
  this.ExcelExportObject00.set_exportuitype("exportprogress");
  this.ExcelExportObject00.set_exporteventtype("itemrecord");
  this.ExcelExportObject00.set_exporttype(nexacro.ExportTypes.EXCEL2007);


  this.ExcelExportObject00.set_exportfilename("ExcelExport_Sample");
  this.ExcelExportObject00.set_exporturl(this.url);
  this.ExcelExportObject00.exportData();
}

Source location

Sample\Excel\np_ExcelExport.xfdl

Import

This describes the way to import the excel file into grid.

Basic

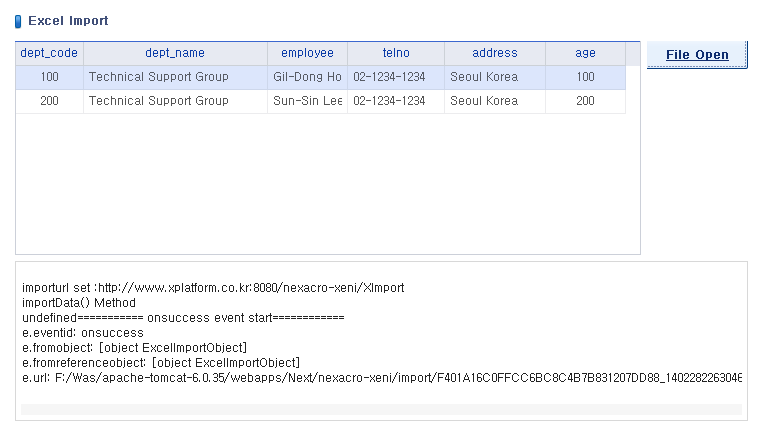

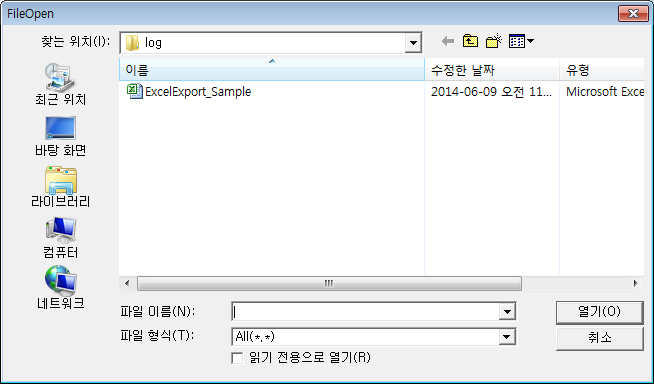

Importing Excel file

Event

We can verify the processing result of excel using event.

Main Source Content

this.url = "http://   WAS Path  /nexacro-xeni/XImport";
this.importObj = null;
this.Button02_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
 if(this.importObj == null){
  this.importObj = new nexacro.ExcelImportObject("Import00",this);
  this.importObj.set_importtype(nexacro.ImportTypes.EXCEL);
  this.importObj.addEventHandler("onsuccess", this.Import00_onsuccess, this);
  this.importObj.addEventHandler("onerror", this.Import00_onerror, this);
 }
 this.importObj.set_importurl(this.url);
 this.TextArea00.set_value(this.TextArea00.value + "\n"+ "importurl set :" + this.url);

 this.importObj.importData("","Sheet1!A1:F6","ds_excel");
 this.TextArea00.set_value(this.TextArea00.value + "\n"+ "importData() Method");
}

Source Location

Sample\Excel\np_ExcelImport.xfdl
Sample\Excel\file\ExcelExport_Sample.xfdl
