QuickCode Tutorial Wizard gives you a quick look at how to configure the screen using QuickCode, configures the necessary development environment, and installs the sample file.
Running QuickCode Tutorial Wizard
When creating a project, select [Use 'QuickCode' > Start Tutorial] or select the menu [QuickCode > Let's Try QuickCode] with the project opened to run the QuickCode Tutorial Wizard.

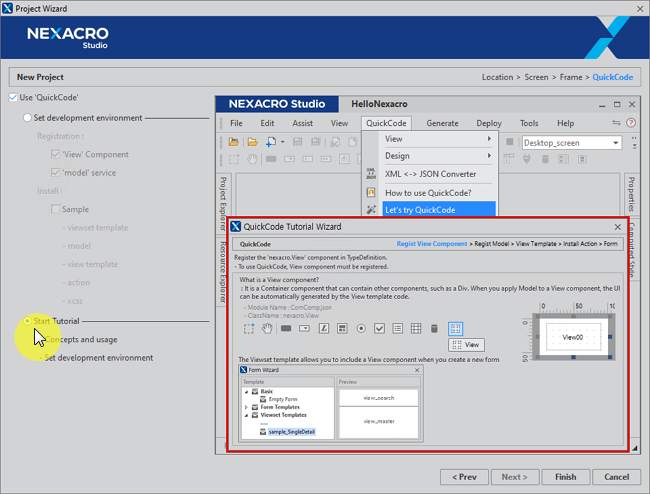

Selecting Use 'QuickCode' in Project Wizard
Select the [Use 'QuickCode' > Start Tutorial] item in the QuickCode step and then click the [Finish] button to run the QuickCode Tutorial Wizard.
If you click the [Cancel] button while the QuickCode Tutorial Wizard is running, then you can create a project without setting the QuickCode.
Selecting the Let's Try QuickCode Item from Menu
Select the menu [QuickCode > Let's Try QuickCode] to run the QuickCode Tutorial Wizard. Configure the development environment in the currently open project and then install the sample file.

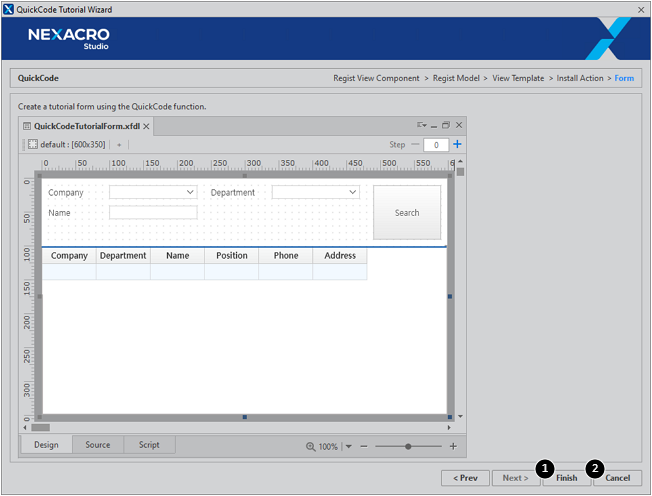

QuickCode Tutorial Wizard Execution Screen
The QuickCode Tutorial Wizard does not have a screen to enter the setting values and only consists of a simple function introduction screen. You can browse the contents by clicking the [Next] or [Prev] buttons.
Description | |
|---|---|
1 | After checking the function introduction content, the [Finish] button is enabled in the final introduction step. When you click the [Finish] button, the development environment is configured and the sample file is installed. |
2 | If you click the [Cancel] button, then the Wizard execution is ended. |
QuickCode Tutorial Wizard Execution Results
After running the QuickCode Tutorial Wizard and clicking the [Finish] button, the following results are reflected in the project.
Configures the View component to be available for use and displays it on the toolbar.
Displays the QuickView toolbar.
Registers the model-type service and model samples for running the tutorial.
Registers View Templates for running the tutorial.
Installs and registers Action objects for running the tutorial.
Registers Viewset Templates for running the tutorial.
Add XCSS file for tutorial execution.
Also creates the QuickCodeTutorialForm.xfdl file with sample_SingleDetail Viewset Template.

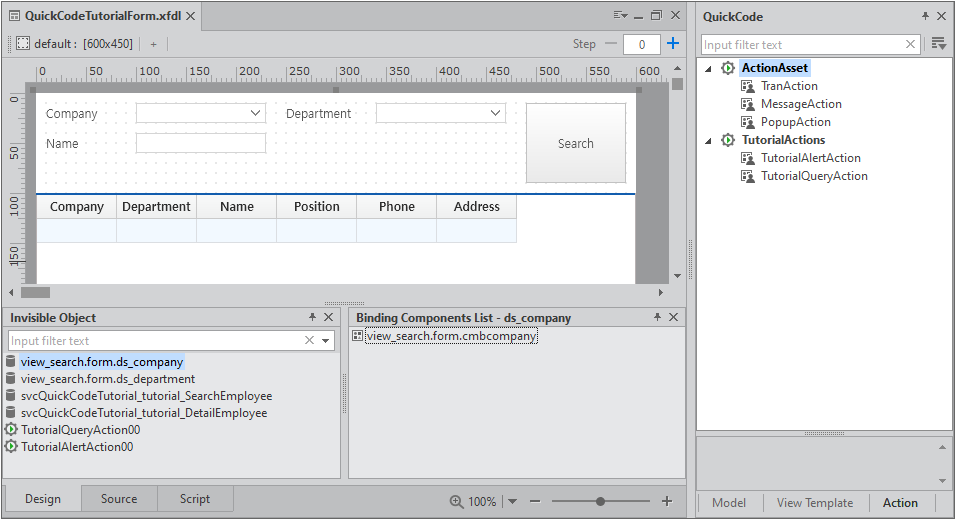

QuickCodeTutorialForm.xfdl
This file is created as a result of running the QuickCode Tutorial Wizard and you can search the data by clicking the [Search] button after running QuickView.

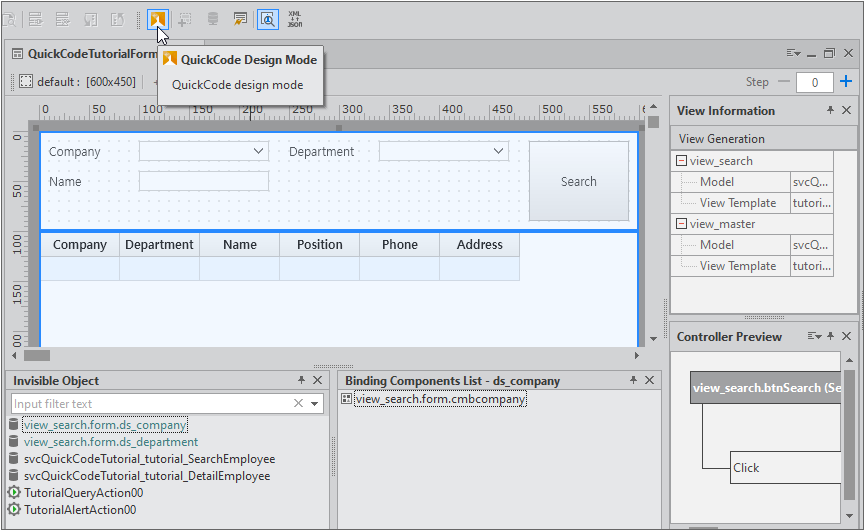

The entire screen consists of two views. View information can be checked by activating QuickCode Design Mode in the toolbar.
