If the app terminates unexpectedly or encounters an error while running in the user’s environment, a log file can be created for analysis and to check the problem.

Create log file settings

The create log file feature is not a default setting and requires additional setup. Log file creation settings can be set in Nexacro Studio or in a config file.

When the app is run, the settings in the config file are applied first. If there is a config file, the value set in the Environment item is ignored.

Create log file settings in Environment

The property values and log functions can be set in Nexacro Studio. Related property values can only be set in Nexacro Studio and cannot be changed while the app is running.

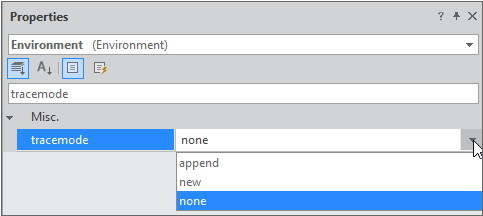

Setting log file creation in the tracemode property

Select Environment in Nexacro Studio and change the tracemode. If the default value is "none", the log function is not processed, and if the property value is set to "new" or "append", a log file is created.

Setting logging level and frequency

You can select Environment in Nexacro Studio and set the loglevel and traceduration properties. The loglevel property sets the situation for the logging and the traceduration property sets the cycle for log file creation.

Config file settings

The log feature can be set in the config file. The Environment property can be set without editing by copying the config file into the user's execution environment or by including it in the build.

Setting -NC options

The "-NC" option can be used when running the nexacro.exe file in the Windows operating system. The config file can be set in the same location as the nexacro.exe file to be run.

For example, if the location of the nexacro.exe file has specified the "log_config.xml" file as the warning -NC value as below, the "log_config.xml" file must exist in the same path.

C:\Program Files\TOBESOFT\Nexacro N\21\TEST_LOG\nexacro.exe
C:\Program Files\TOBESOFT\Nexacro N\21\TEST_LOG\log_config.xml

If the -NC option is not used, the nexacro_config.xml file will be searched for in the default path and it will be referred to if it exists.

Setting nexacro_config.xml file

For -NC option settings, a file name can be specified, but a separate option must be specified. The nexacro_config.xml file automatically recognizes and processes a file with a given name in the specified location when running the app.

Windows operating systems

In the Windows OS, the feature for distributing the apps by including the nexacro_config.xml file is not included. The nexacro_config.xml file can be created in the path below and referred to it when running the app.

%USERAPP%\Config\[Key]\nexacro_config.xml

Android, macOS operating systems

The nexacro_config.xml file can be set when building a project in the Android Studio or macOS. Refer to the contents below.

App Development and Execution (Android) > Set Config
App Development and Execution (iOS)  > Set Config

nexacro_config.xml file properties

The configuration file (nexacro_config.xml) or the file specified with the -NC option is written in the format shown below.

<?xml version="1.0" encoding="UTF-8"?>
<nexacro-config os="windows">
	<application
		file-logging="true"
		loglevel="debug"
		tracemode="new"
		traceduration="-1"/>
	<log
		filepath="%USERAPP%\Log\nre_log_test.log"
		filesize="408960"
		backupfilecount="5"/>
</nexacro-config>

Among the properties specified in the nexacro_config.xml file, only those related to the log file creation are explained below.

Example of file creation by property

backupfilecount

If the size of the created log file exceeds the value of the filesize property, backup files are additionally created.

Create files by adding numbers to the end of the file names. When the value specified by the backupfilecount property is reached, the first created file is deleted and the log is recorded.

If the app runs every hour and records a 300KB log run, the log files are created as follows.

<log filepath="%USERAPP%nrelog.log" filesize="200" backupfilecount="3"/>

traceduration

Based on the date of log file creation, files created before the value of the traceduration property are deleted.

A file is created and the date ("_yyyymmdd") is added to the end of the file name. Date comparison is processed according to the operating system system time.

If the app is run once a day and not on weekends, log files are created and deleted as follows. Since the app is not run on weekends (Saturday and Sunday), previously created log files are not deleted. When the app is run on Monday, log files before the traceduration property value are deleted.

<nexacro-config os="windows">
	<application file-logging="true" quiet="false" loglevel="debug" tracemode="new" traceduration="2"/>
	<log filepath="%USERAPP%nrelog.log" filesize="408960" backupfilecount="3"/>
</nexacro-config>

Reading log files

The log files can be viewed using the appropriate operating system file explorer.

To implement the feature for viewing the log files within the app, obtain the path of the log file and read the contents of the file using the VirtualFile object.

Reading log files script example

This is an example of getting the first file stored in the corresponding path when the Button is clicked and displaying it in the TextArea component.

this.Button01_onclick = function(obj:Button,  e:nexacro.ClickEventInfo)
{
	var strLogpath = nexacro.getLogFilePath();
    this.VirtualFile00.getFileList( strLogpath, ".log", VirtualFile.findFileOnly );
}

this.VirtualFile00_onsuccess = function(obj:VirtualFile, e:nexacro.VirtualFileEventInfo)
{
	switch (e.reason)
	{
		case 1:	// open
			this.VirtualFile00.read();
			break;
		case 3:	// read
			this.TextArea00.set_value(e.textdata);
			break;
		case 8:	// getFileList
			var logfilename = logpath + e.fileattributelist[0].filename;
			this.VirtualFile00.open(logfilename,  VirtualFile.openText);
			break;
	}
}

Restrictions in the Windows operating system

To access the log file in the Windows operating system, the environment filesecurelevel property value must be set to "all”. The sandbox window is displayed upon the initial run.

Restrictions in the Android operating system

To access log files in the Android operating system, file access privileges must be set.

<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
...
<provider
    android:name="android.support.v4.content.FileProvider"
    android:authorities="nexacro.launcher.fileprovider"
    android:exported="false"
    android:grantUriPermissions="true">
    <meta-data
        android:name="android.support.FILE_PROVIDER_PATHS"
        android:resource="@xml/file_paths"/>
</provider>

<?xml version="1.0" encoding="utf-8"?>
<paths xmlns:android="http://schemas.android.com/apk/res/android">
    <external-cache-path name="cache" path="."/>
    <external-files-path name="files" path="./"/>
</paths>
